DG-Rafaello Cubic Zirconia: the most light of any cut we measure in this stone

Brilliance 100 · Fire 87 · Scintillation 96 · in our census, where the T73 scores 98 · 87 · 80 in cubic zirconia

DG-Rafaello reaches Brilliance 100 in CZ: the top of our scale, and no other cut we measure in this stone gets there.

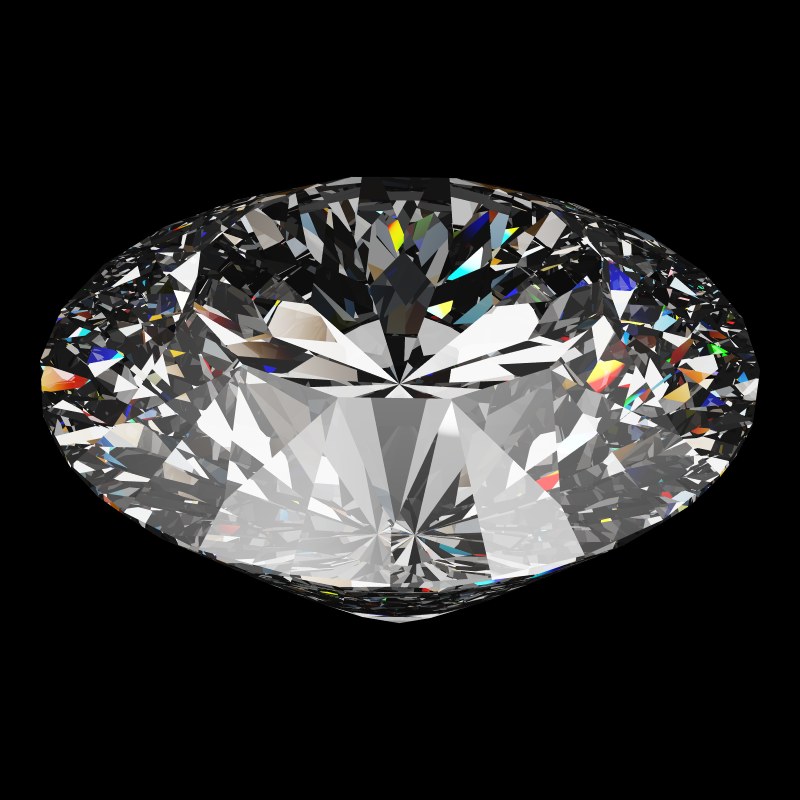

The DG-Rafaello in cubic zirconia, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Rafaello model, 1.00 ct, studio light.

DG-Rafaello Cubic Zirconia

DG-Rafaello is a twelve-fold round. Its pavilion has five tiers, each a little shallower than the last, so the cone curves gently from girdle to point. Our model has 145 facets, is 59.0% deep and measures 40.0° at the pavilion.

It returns more light in CZ than in diamond: Brilliance 100 against 94, with no light lost through the back. Against the T73 in CZ the light gap is small, because the T73 already returns 98 here. The sparkle gap is not small.

Is CZ good in a DG-Rafaello cut? Pros and cons

Compared with the T73 Round Brilliant in cubic zirconia and with the DG-Rafaello in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Rafaello in cubic zirconia (white) against the T73 Round Brilliant in cubic zirconia (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Rafaello in cubic zirconia, against the T73 Round Brilliant in cubic zirconia as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+2Brilliance+2Fire0Scintillation+16Spread+1Symmetry0Shape-norm+1Tilt+1

Against the T73 Round Brilliant in cubic zirconia: ahead on 6, level on 2.

  • Global95, the comparison 93, difference +2
  • Brilliance100, the comparison 98, difference +2
  • Fire87, the comparison 87, difference 0
  • Scintillation96, the comparison 80, difference +16
  • Spread101, the comparison 100, difference +1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm107, the comparison 106, difference +1
  • Tilt88, the comparison 87, difference +1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What DG-Rafaello gives cubic zirconia

Far finer sparkle than the T73

Scintillation 96 against 80 for the T73 Round Brilliant in cubic zirconia: 16 points higher

Twelve-fold symmetry and five pavilion tiers give many more facets: 145 against the T73's 73. Our scintillation score rises with that division. The crown diagram shows twelve stars where the T73 has eight.

DG-Rafaello · 145 facets · Scintillation 96

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

More fire than the diamond version

Fire 87 against 80 for the DG-Rafaello in diamond: 7 points higher

Same facets, a different stone: each flash carries more color in CZ. It does not out-fire the T73 in CZ, though. The two are level at 87.

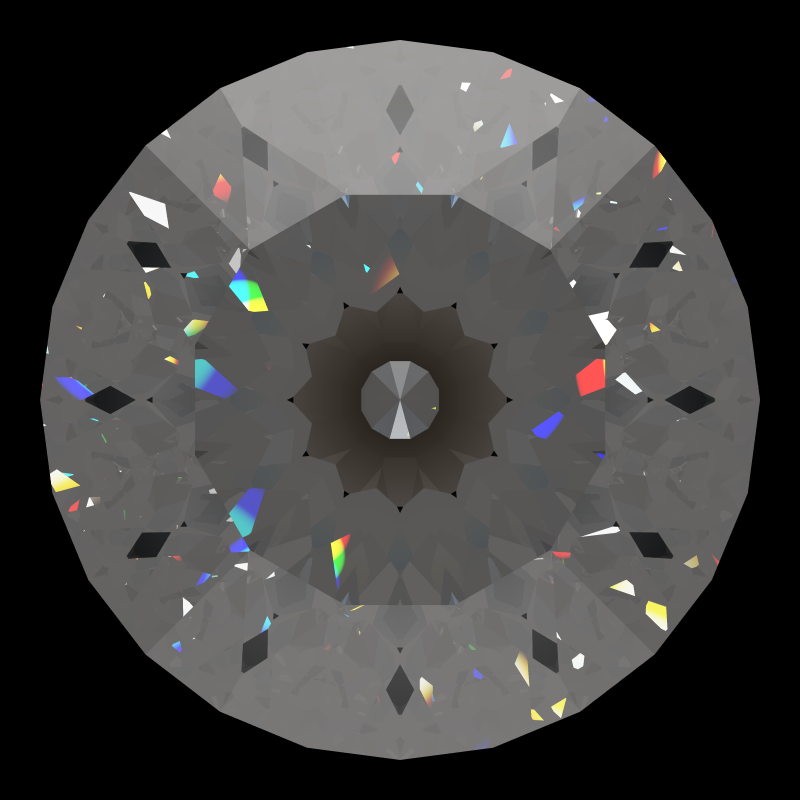

Dg-rafaello in cubic zirconia face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 87)

DG-Rafaello in cubic zirconia · Fire 87

Dg-rafaello in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 80)

DG-Rafaello in diamond · Fire 80

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

More light than DG-Rafaello in diamond

Brilliance 100 against 94 for the DG-Rafaello in diamond: 6 points higher

Like the T-series rounds, it returns more light in CZ than in diamond. Here that light reaches the top of the scale. The census measures the result, not the reason. The graded tiers may suit CZ's critical angle of 27.7°.

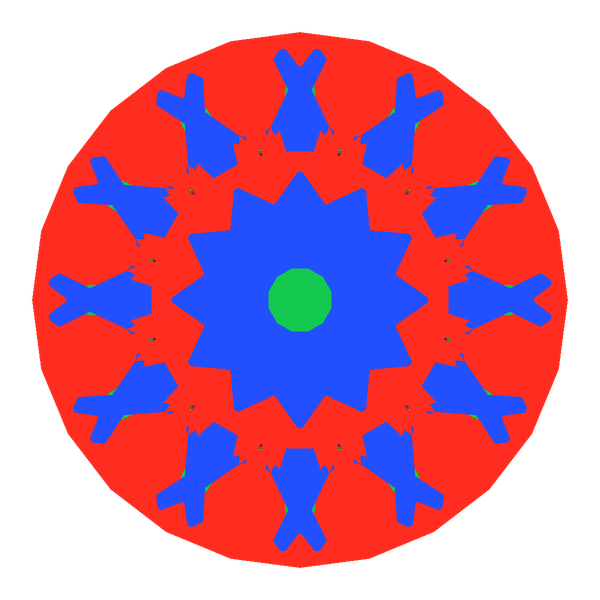

Dg-rafaello in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 100)

DG-Rafaello in cubic zirconia · Brilliance 100

Dg-rafaello in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

DG-Rafaello in diamond · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

Try it yourself: Open this Light Return map in the simulator

A larger face than the T73 for its weight

Face-up size 106 against 100 for the T73 Round Brilliant in cubic zirconia (T73 = 100): 6% more face-up area for the same weight

From above, both are round, so all the gain comes from the profile. DG-Rafaello is 59.0% deep and the T73 is 61.7%. It is the shallowest of our round brilliants, so less of each carat goes into height.

DG-Rafaello · 5.61 mm at 1.00 ct · Face-up size 106

T73 Round Brilliant · 5.49 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in cubic zirconia and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

Try it yourself: See its size at 1.00 ct in cubic zirconia in the 3D Gemstone Simulator

Where DG-Rafaello gives ground in CZ

Heavier than diamond, by the material

1.55 ct at 6.5 mm, against 0.94 ct for the same cut in diamond (+65%)

Size for size, a CZ is about 65% heavier than a diamond, whatever the cut. Even this low round weighs 1.55 ct at 6.5 mm across. The diamond version weighs 0.94 ct.

Cubic Zirconia1.55 ctDiamond0.94 ct
A DG-Rafaello 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Nothing in the cut changes it. Order CZ by diameter.

Try it yourself: Weights in every gemstone on the DG-Rafaello page

Less steady than the diamond version when tipped

Tilt 88 against 97 for the DG-Rafaello in diamond: 9 points lower

When tilted, the CZ stone keeps 88 of its face-up light, and the diamond keeps 97. It is not behind the T-series rounds in CZ: the T73 keeps 87. Diamond's higher index holds slanting light better.

DG-Rafaello in cubic zirconia · Tilt 88

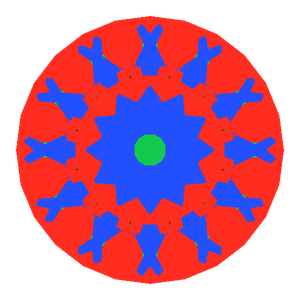

Dg-rafaello in cubic zirconia tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak

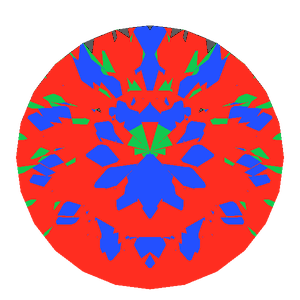

Dg-rafaello in cubic zirconia tilted 10 degrees: Light Return map, 1% of the face leaking10° · 1% leak

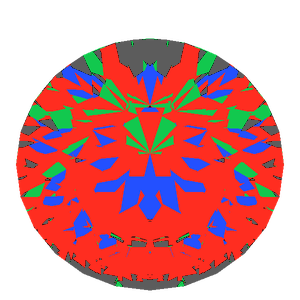

Dg-rafaello in cubic zirconia tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak

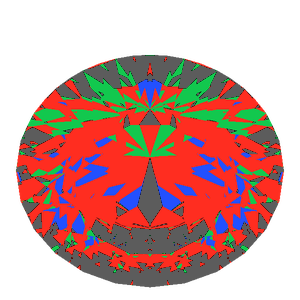

Dg-rafaello in cubic zirconia tilted 30 degrees: Light Return map, 25% of the face leaking30° · 25% leak

DG-Rafaello in diamond · Tilt 97

Dg-rafaello in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
Dg-rafaello in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak
Dg-rafaello in diamond tilted 20 degrees: Light Return map, 7% of the face leaking20° · 7% leak
Dg-rafaello in diamond tilted 30 degrees: Light Return map, 17% of the face leaking30° · 17% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Of our rounds at Brilliance 97 or more in CZ, DG-Miliano Cubic Zirconia holds most when tipped: 90.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a DG-Rafaello CZ suits

For the brightest CZ we measure, choose this. It suits a solitaire that should read bright face-up, with crisp, fine sparkle on top.

If fire matters more than the last points of light, DG-Miliano Cubic Zirconia scores 90 for fire. For an eight-fold round, choose the T73 Round Brilliant Cubic Zirconia.

A setter will notice the twenty-four girdle facets of a twelve-fold plan. Prongs sit on them as on any faceted girdle.

DG-Rafaello Cubic Zirconia: questions

Which cut is brightest in cubic zirconia?

In our census, DG-Rafaello: Brilliance 100, the only CZ cut at the top of the scale. Five cuts share second place at 98: DG-Broken Hearts and Arrows, DG-Vitruvio, the T105, the T57 and the T73.

Does DG-Rafaello leak light in CZ?

No: 0% in our census, against 1% for the T73 and 5% for DG-Rafaello in diamond.

Is DG-Rafaello better in CZ or in diamond?

For light and fire, CZ: 100 against 94, 87 against 80. Diamond is steadier when tilted (97 against 88) and weighs far less.
