Square Cut Cubic Zirconia: more fire than the same square in diamond

Brilliance 85 · Fire 83 · Scintillation 78 · in our census, where the T73 scores 98 · 87 · 80 in cubic zirconia

A square brilliant in CZ: more color than the diamond version and the same light, but well short of the T73's.

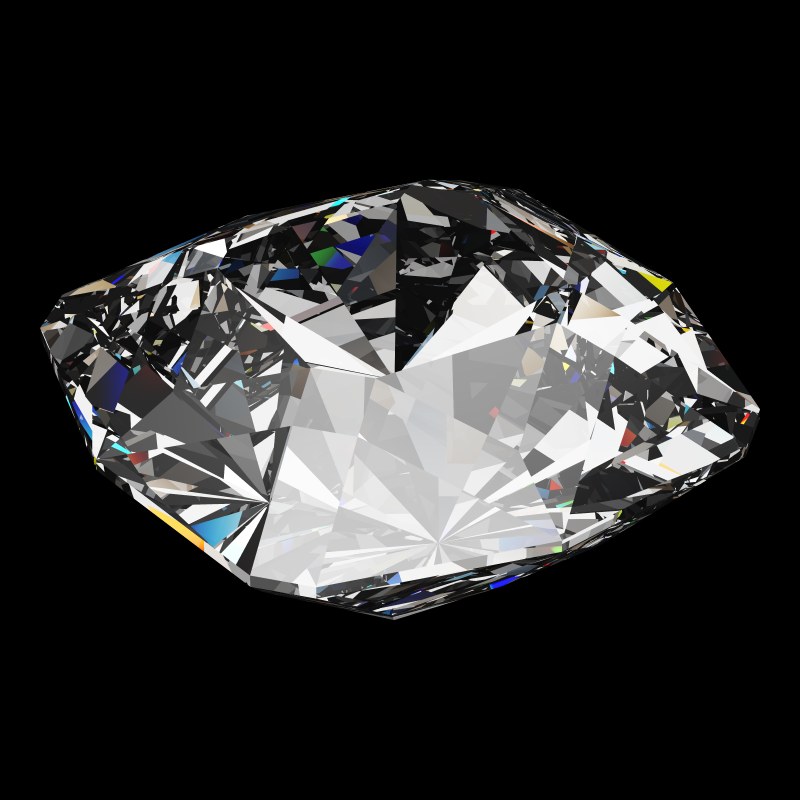

The Square Cut in cubic zirconia, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Square Cut model, 1.00 ct, studio light.

Square Cut Cubic Zirconia

Our square brilliant has a full facet set on a square outline, the square counterpart of the round. The model has 69 facets over a 41.39° pavilion and is 65.0% deep.

In CZ and in diamond it returns the same light, 85. CZ adds fire. The T73 in CZ returns far more light, and that gap is what this page is mostly about.

Is a square cut worth it in cubic zirconia? Pros and cons

Compared with the T73 Round Brilliant in cubic zirconia and with the Square Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Square Cut in cubic zirconia (white) against the T73 Round Brilliant in cubic zirconia (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Square Cut in cubic zirconia, against the T73 Round Brilliant in cubic zirconia as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−7Brilliance−13Fire−4Scintillation−2Spread−2Symmetry0Shape-norm+5Tilt+1

Against the T73 Round Brilliant in cubic zirconia: ahead on 2, level on 1, behind on 5.

  • Global86, the comparison 93, difference −7
  • Brilliance85, the comparison 98, difference −13
  • Fire83, the comparison 87, difference −4
  • Scintillation78, the comparison 80, difference −2
  • Spread98, the comparison 100, difference −2
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm111, the comparison 106, difference +5
  • Tilt88, the comparison 87, difference +1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What the square cut gives cubic zirconia

More fire than the diamond square

Fire 83 against 72 for the Square Cut in diamond: 11 points higher

The square's flashes carry more color in CZ than in diamond. It stays a few points under the T73 in CZ, 87.

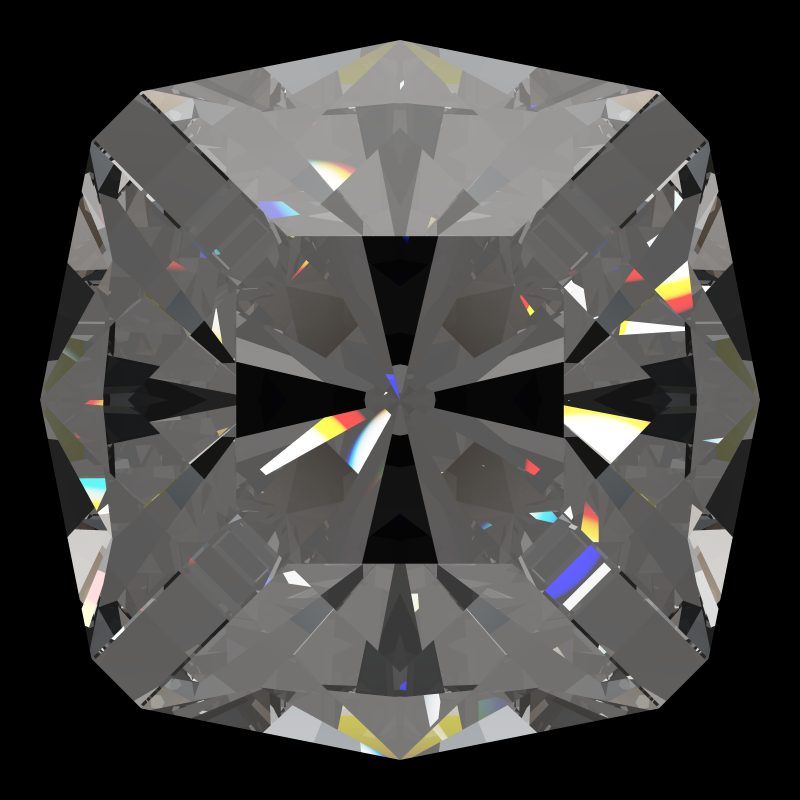

Square cut in cubic zirconia face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 83)

Square Cut in cubic zirconia · Fire 83

Square cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 72)

Square Cut in diamond · Fire 72

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

The catch with a square cut CZ

Much heavier than diamond

1.88 ct at 6.5 mm, against 1.14 ct for the same cut in diamond (+65%)

Deep and dense: at 6.5 mm the square weighs 1.88 ct in CZ, where the diamond weighs 1.14 ct.

Cubic Zirconia1.88 ctDiamond1.14 ct
A Square Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Order it by size, not weight.

Try it yourself: Weights in every gemstone on the Square Cut page

Less light than the T73 in CZ

Brilliance 85 against 98 for the T73 Round Brilliant in cubic zirconia: 13 points lower

The square returns in CZ what it returns in diamond, no more. The T73 gains in CZ and the square does not. That widens a gap the two already show in diamond.

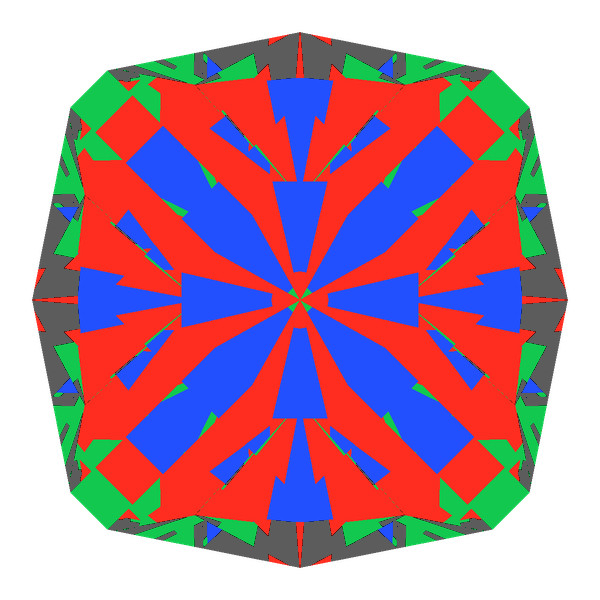

Square cut in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 85)

Square Cut in cubic zirconia · Brilliance 85

T73 round brilliant in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 98)

T73 Round Brilliant in cubic zirconia · Brilliance 98

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For a squarish outline with more light in CZ, the Cushion Cut Cubic Zirconia returns 88 and DG-Octagonal Kite Cubic Zirconia returns 93.

Try it yourself: Open this Light Return map in the simulator

Light lost through the pavilion

Leakage 11 against 1 for the T73 Round Brilliant in cubic zirconia: 10 points higher

11% in our census, against 1% for the T73 in CZ and 10% for the diamond square. At 41.39° the pavilion clears the 38.1° guide minimum, so a steeper one is not our answer.

Square Cut in cubic zirconia · Leakage 11

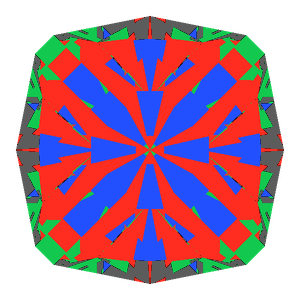

Square cut in cubic zirconia tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak

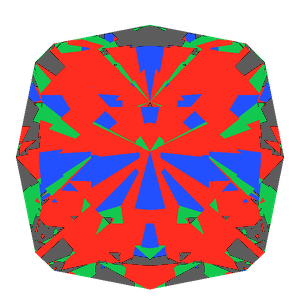

Square cut in cubic zirconia tilted 10 degrees: Light Return map, 12% of the face leaking10° · 12% leak

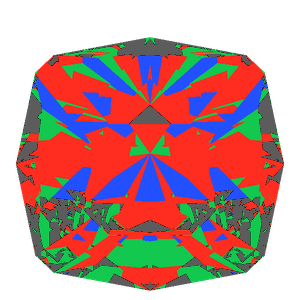

Square cut in cubic zirconia tilted 20 degrees: Light Return map, 15% of the face leaking20° · 15% leak

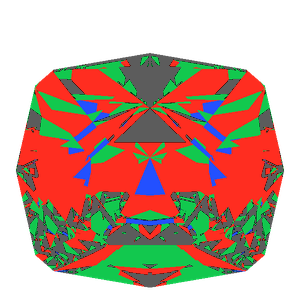

Square cut in cubic zirconia tilted 30 degrees: Light Return map, 20% of the face leaking30° · 20% leak

T73 Round Brilliant in cubic zirconia · Leakage 1

T73 round brilliant in cubic zirconia tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
T73 round brilliant in cubic zirconia tilted 10 degrees: Light Return map, 1% of the face leaking10° · 1% leak
T73 round brilliant in cubic zirconia tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in cubic zirconia tilted 30 degrees: Light Return map, 21% of the face leaking30° · 21% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Size changes nothing here. DG-Octagonal Kite Cubic Zirconia leaks 5% in CZ.

Try it yourself: Tilt it yourself in the simulator's light map

Who a square cut CZ suits

The square suits a CZ meant as a versatile center or accent stone with a modern square outline and plenty of color.

For more light with straight sides, choose DG-Octagonal Kite Cubic Zirconia. For a softer square, choose the Cushion Cut Cubic Zirconia. For sharp corners, choose the Princess Cut Cubic Zirconia, which returns less light (63).

Against the square in diamond, the CZ is level on light and ahead on fire. It also holds its light a little better when tipped: 88 against 86.

Square Cut Cubic Zirconia: questions

Is a square cut good for CZ?

It is a fair choice: Fire 83 and Brilliance 85, against 87 and 98 for the T73 in CZ.

Square or princess cut in CZ?

The square returns more light (85 against 63) and leaks less (11% against 22%). Fire is where the princess leads: 92 to 83.

Square CZ or square diamond?

The light is the same (85 in diamond). CZ has more fire, 83 against 72. Diamond is far lighter and harder.

Does a square CZ look smaller than a round of the same weight?

No. Measured from the model's outline, its face-up size per carat is 100, the same as the T73's 100. The square covers more of its width than a circle. But its 65.0% depth, against the T73's 61.7%, takes that gain back.

Get the Square Cut files

6 formatsMillimetersWatertight

Square Cut 3D files

The Square Cut as exact geometry: 69 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad64 index

Square Cut cutting files

The Square Cut as a faceting design: 57 + 12 girdles = 69 facets, 64 index, 4-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 64 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
