Square Cut Ruby: a steady square face that starts with less light

Brilliance 78 · Fire 45 · Scintillation 78 · in our census, where the T73 scores 94 · 37 · 80 in ruby

The square counterpart of the round brilliant. In ruby it keeps its light steady when tilted, but it starts with less light.

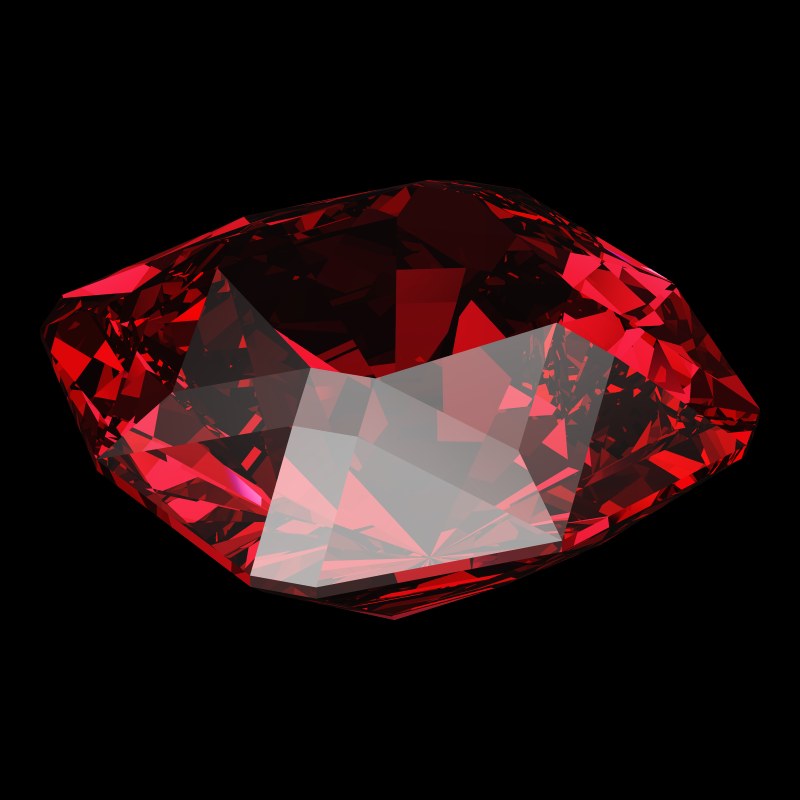

The Square Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Square Cut model, 1.00 ct, studio light.

Square Cut Ruby

Ours has a full brilliant facet set on a square: 69 facets, a 41.39° pavilion and 65.0% depth.

In ruby it returns 78 for brilliance, well behind the T73, and leaks 16% of the light. It holds what it has when tilted, Tilt 84. But by our rule, that counts only for a stone close to the light of the baseline.

Square rubies are less common than ovals and cushions, because a square outline wastes more of the flat rough. For a square ruby, our pages offer six modern squares. Four are brilliants: this cut, the cushion, the princess and the square radiant. Two are step cuts: the emerald square and the Asscher. Of these six, the cushion leads for light, at 88. The princess and the Asscher tie at the bottom, 68 each.

Square cut ruby: good or bad? Pros and cons

Pros

None by our margins. Tilt is high, 84, but on less light.

Compared with the T73 Round Brilliant in ruby and with the Square Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Square Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Square Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−4Brilliance−16Fire+8Scintillation−2Spread−2Symmetry0Shape-norm0Tilt+9

Against the T73 Round Brilliant in ruby: ahead on 2, level on 2, behind on 4.

  • Global75, the comparison 79, difference −4
  • Brilliance78, the comparison 94, difference −16
  • Fire45, the comparison 37, difference +8
  • Scintillation78, the comparison 80, difference −2
  • Spread98, the comparison 100, difference −2
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm102, the comparison 102, difference 0
  • Tilt84, the comparison 75, difference +9
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in a square cut

Two scores beat the T73 in ruby, Tilt and Fire, but neither counts as a pro. Tilt, 84 against 75, is a large share of a smaller amount. Our rule asks a tilt pro to come within five points of the round's brilliance, and the square returns 78. Fire is 45, above the T73's 37. But the gap to the diamond square, 72, is larger, and our rule counts that one. What it offers is a crisp square face that stays steady as it moves.

Where the square cut falls short in ruby

Less fire than a diamond square

Fire 45 against 72 for the Square Cut in diamond: 27 points lower

Fire 45 against 72. For color in ruby, the square sits between the rounds and the elongated cuts.

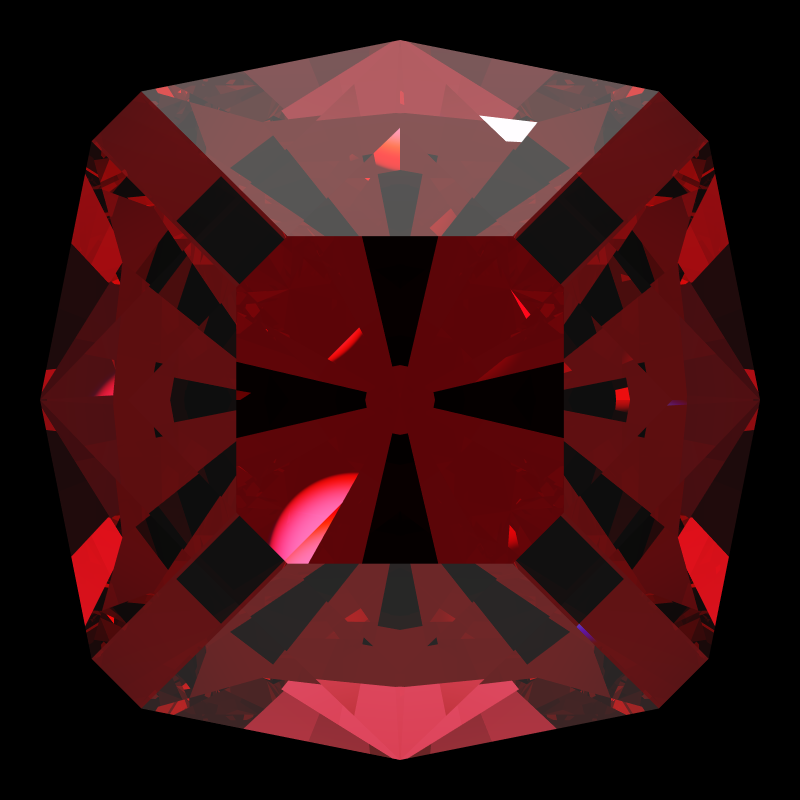

Square cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 45)

Square Cut in ruby · Fire 45

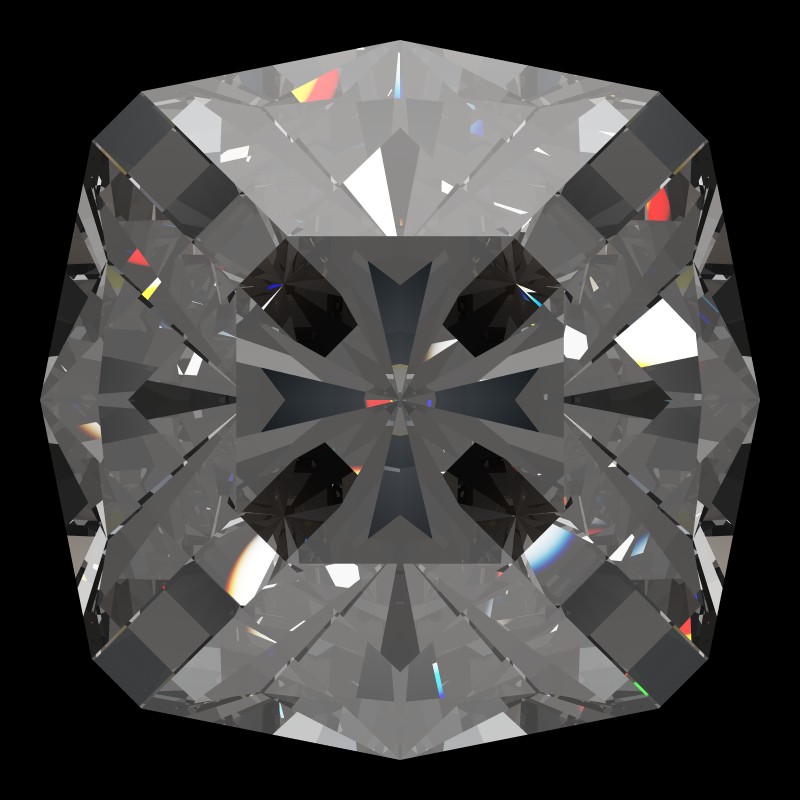

Square cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 72)

Square Cut in diamond · Fire 72

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: For fire in ruby, this square is in the middle of our ranking. The Trilliant Cut Ruby reaches 52 and returns more light than this square, 86.

Try it yourself: See the fire in the 3D Gemstone Simulator

Less light than a round ruby

Brilliance 78 against 94 for the T73 Round Brilliant in ruby: 16 points lower

Brilliance 78 against 94. The corners put pavilion facets at angles that a round does not have, and some of the light that reaches them escapes.

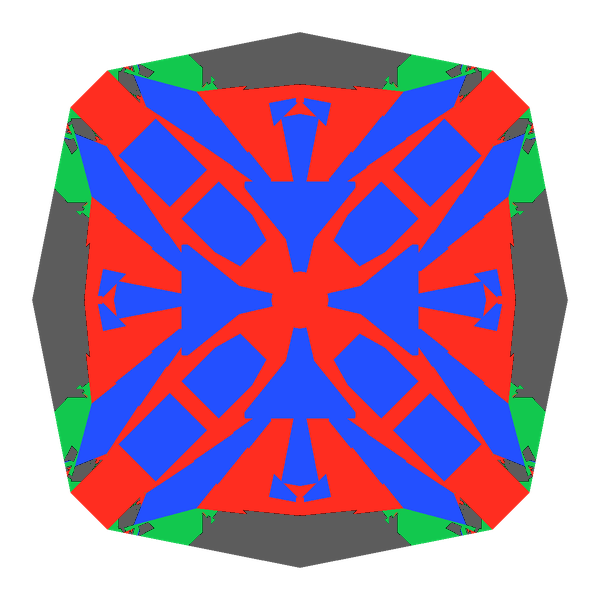

Square cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 78)

Square Cut in ruby · Brilliance 78

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For more light on a square outline, choose the Cushion Cut Ruby, with rounded corners. It returns 88 in ruby.

Try it yourself: Open this Light Return map in the simulator

Heavier than diamond for its size

1.30 ct at 6.5 mm, against 1.14 ct for the same cut in diamond (+14%)

A 6.5 mm square weighs 1.30 ct in ruby, against 1.14 ct in diamond.

Ruby1.30 ctDiamond1.14 ct
A Square Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Choose by millimeters.

Try it yourself: Weights in every gemstone on the Square Cut page

More light lost than through a round

Leakage 16 against 5 for the T73 Round Brilliant in ruby: 11 points higher

16% of the light leaves through the pavilion, against 5% for the T73 in ruby. At 41.39°, the pavilion is above the 36.4° guide minimum. Our census measures the loss, not its path.

Square Cut in ruby · Leakage 16

Square cut in ruby tilted 0 degrees: Light Return map, 16% of the face leaking0° · 16% leak

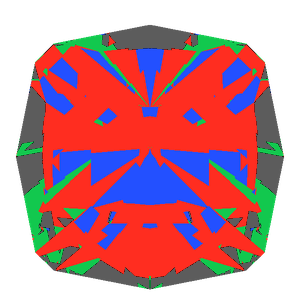

Square cut in ruby tilted 10 degrees: Light Return map, 14% of the face leaking10° · 14% leak

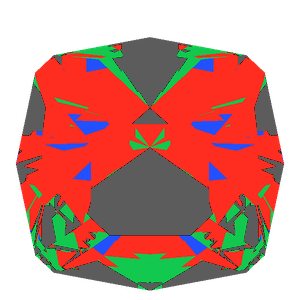

Square cut in ruby tilted 20 degrees: Light Return map, 30% of the face leaking20° · 30% leak

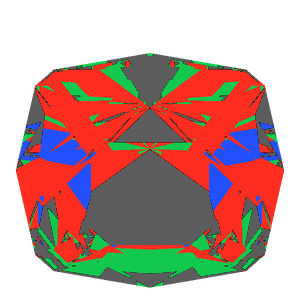

Square cut in ruby tilted 30 degrees: Light Return map, 32% of the face leaking30° · 32% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The Cushion Cut Ruby, with rounded corners, loses 11%. A smaller square loses the same share as a larger one.

Try it yourself: Tilt it yourself in the simulator's light map

Who a square ruby suits

The square suits a ruby in a geometric setting, or one seen from many angles: it loses little light as it tilts. Face-up, a round ruby is clearly brighter.

For a square outline with more light, choose the Cushion Cut Ruby. For sharper corners, choose the Princess Cut Ruby, but it returns less light and leaks more. A step-cut alternative is the Emerald Square Cut Ruby.

Square Cut Ruby: questions

Is a square cut good for ruby?

Middle of the range. It ties with the octagon and the Old European at 78, at the edge of the top third of our ruby census for light. It is behind the DG and T-series rounds, the cushion and the trilliant. The T73 returns 94, and the square leaks 16%.

Square or princess cut ruby?

Light favors the square: 78 against 68, with 16% leakage against 27%. The princess has a little more fire (52 against 45).

Square or cushion cut ruby?

The cushion, for light: 88 against 78. But when it tilts, the square keeps more: 84 against 72.

What does a 6.5 mm square ruby weigh?

A square ruby 6.5 mm on a side weighs about 1.30 ct. The diamond version weighs 1.14 ct.
