DG-Anteros Ruby: a little more light than the T73, from the same 73-facet plan

Brilliance 97 · Fire 43 · Scintillation 80 · in our census, where the T73 scores 94 · 37 · 80 in ruby

In ruby, DG-Anteros still returns a little more light than the T73, from the same 73-facet plan.

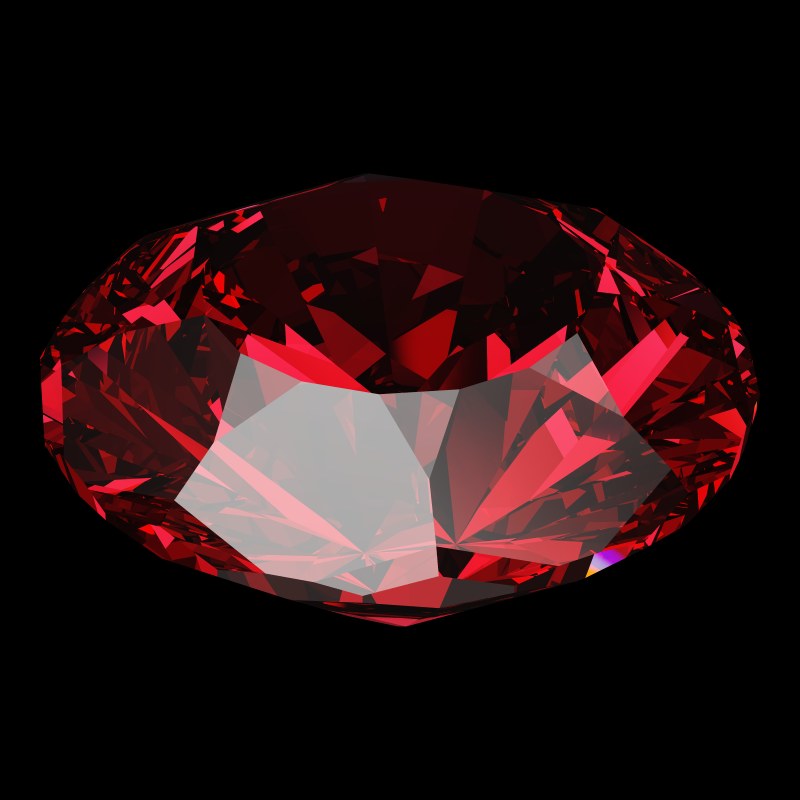

The DG-Anteros in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Anteros model, 1.00 ct, studio light.

DG-Anteros Ruby

DG-Anteros keeps the 73 facets and the plan of the T73, with a 53.5% table, an eased 33.0° crown and a 40.1° pavilion. We designed those angles for moissanite, which bends light much more strongly than ruby.

Even with the 34.6° critical angle of ruby, DG-Anteros is still three points brighter than the T73. It also leaks less: 3% against 5%. DG-M5 returns more light, but no other round in our ruby census does. Against the same cut in diamond, ruby loses fire and some tilt stability, as in every bright round we measure.

We have not traced a hearts-and-arrows pattern in ruby, and we make no claim for it here.

Is DG-Anteros worth it for a ruby? Pros and cons

Compared with the T73 Round Brilliant in ruby and with the DG-Anteros in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Anteros in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Anteros in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+3Brilliance+3Fire+6Scintillation0Spread+1Symmetry0Shape-norm+2Tilt+3

Against the T73 Round Brilliant in ruby: ahead on 6, level on 2.

  • Global82, the comparison 79, difference +3
  • Brilliance97, the comparison 94, difference +3
  • Fire43, the comparison 37, difference +6
  • Scintillation80, the comparison 80, difference 0
  • Spread101, the comparison 100, difference +1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm104, the comparison 102, difference +2
  • Tilt78, the comparison 75, difference +3
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in DG-Anteros

A little more light than the T73 in ruby

Brilliance 97 against 94 for the T73 Round Brilliant in ruby: 3 points higher

In ruby, the eased crown and shifted pavilion cone send slightly more of the table's light back up than the T73's angles do. Three points is a small gain, and it gives a livelier red face.

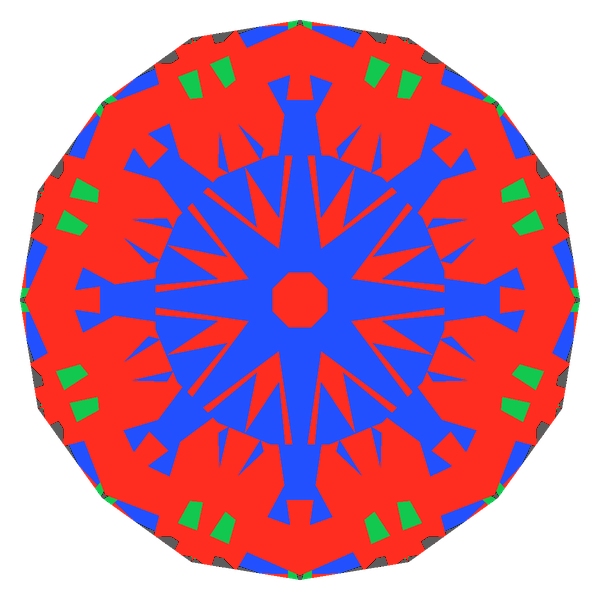

Dg-anteros in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 97)

DG-Anteros in ruby · Brilliance 97

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

Try it yourself: Open this Light Return map in the simulator

Where DG-Anteros falls short in ruby

Far less fire than in diamond

Fire 43 against 74 for the DG-Anteros in diamond: 31 points lower

Fire 43 in ruby, 74 in diamond. It still has the most fire of any round on our ruby pages, a few points above the T73's 37.

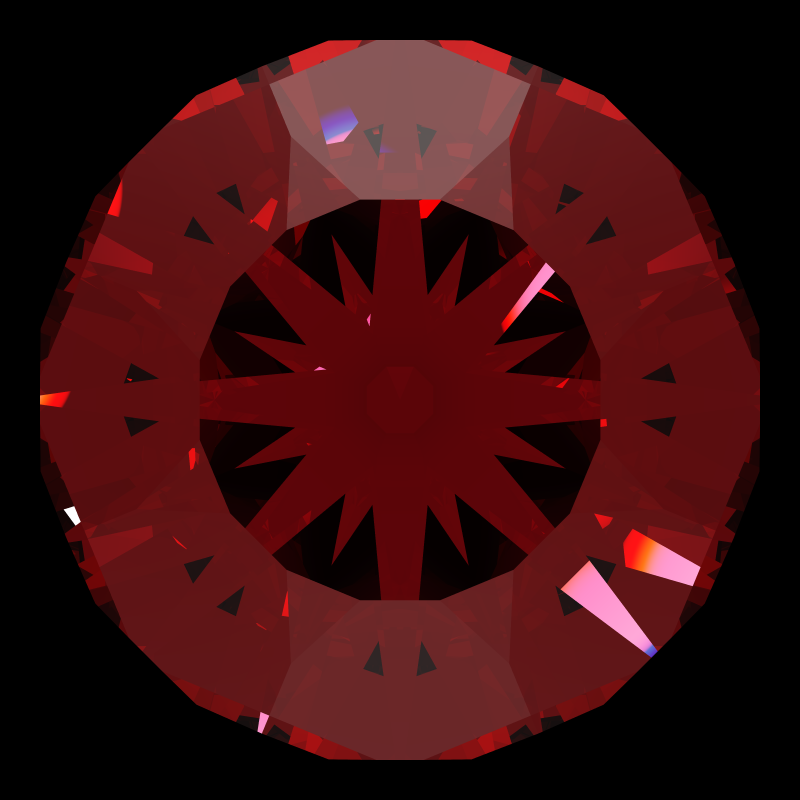

Dg-anteros in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 43)

DG-Anteros in ruby · Fire 43

Dg-anteros in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 74)

DG-Anteros in diamond · Fire 74

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: For more color in a ruby that stays close to the T73's light, the Trilliant Cut Ruby reaches 52.

Try it yourself: See the fire in the 3D Gemstone Simulator

Heavier than the diamond version

1.10 ct at 6.5 mm, against 0.97 ct for the same cut in diamond (+14%)

DG-Anteros at 6.5 mm comes to 1.10 ct in ruby and 0.97 ct in diamond. Ruby is the denser of the two by about 14%.

Ruby1.10 ctDiamond0.97 ct
A DG-Anteros 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Ruby is simply denser. Specify a DG-Anteros ruby by width and let the weight follow.

Try it yourself: Weights in every gemstone on the DG-Anteros page

Loses more light when rocked than the diamond

Tilt 78 against 85 for the DG-Anteros in diamond: 7 points lower

Tilted 20°, it keeps 78% of its face-up light, against 85% for DG-Anteros in diamond. The wider escape cone of the material causes the gap, not a weakness of the plan: the T73 in ruby scores 75.

DG-Anteros in ruby · Tilt 78

Dg-anteros in ruby tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
Dg-anteros in ruby tilted 10 degrees: Light Return map, 5% of the face leaking10° · 5% leak

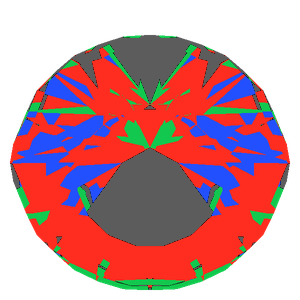

Dg-anteros in ruby tilted 20 degrees: Light Return map, 23% of the face leaking20° · 23% leak

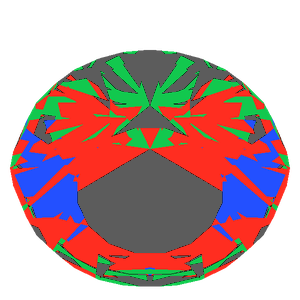

Dg-anteros in ruby tilted 30 degrees: Light Return map, 32% of the face leaking30° · 32% leak

DG-Anteros in diamond · Tilt 85

Dg-anteros in diamond tilted 0 degrees: Light Return map, 2% of the face leaking0° · 2% leak

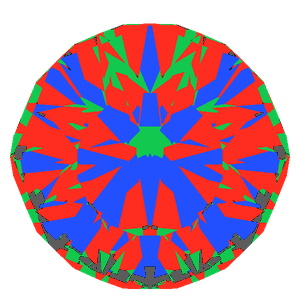

Dg-anteros in diamond tilted 10 degrees: Light Return map, 4% of the face leaking10° · 4% leak

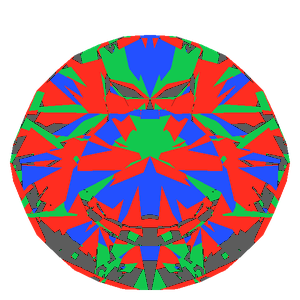

Dg-anteros in diamond tilted 20 degrees: Light Return map, 12% of the face leaking20° · 12% leak

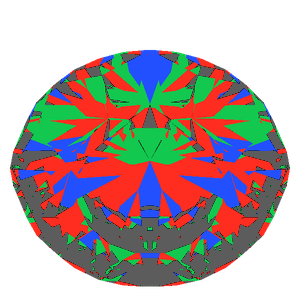

Dg-anteros in diamond tilted 30 degrees: Light Return map, 26% of the face leaking30° · 26% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The tiered pavilion of DG-Miliano Ruby keeps 83 at a tilt in ruby. It returns seven points less light (90 against 97).

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a DG-Anteros ruby suits

DG-Anteros suits a cutter or buyer who wants the familiar eight-fold plan of the T73. In ruby, it adds a few points of light over the T73. It is the round with the most fire on our ruby pages, but in absolute terms that fire is small.

For the most light, choose DG-M5 Ruby. For the published proportions with a girdle that setters know, choose the T73 Round Brilliant Ruby.

DG-Anteros Ruby: questions

Is DG-Anteros good for ruby?

It is the second-brightest ruby round we measure. Its Brilliance is 97, behind DG-M5's 100 and ahead of the T73's 94, with 3% leakage.

Why measure DG-Anteros in ruby?

The plan is the T73's, and only the angles are different. So it shows how much those angles matter in ruby. The answer is a few points.

Does DG-Anteros give a ruby more fire?

A little more than the T73, 43 against 37, which makes it the round with the most fire on our ruby pages. Cut in diamond, the same design scores 74.

Does the cut change a ruby's color?

We do not measure color. Ruby shows purplish red along its optic axis and orangey red across it. So the orientation of the rough matters as much as the facet angles.

Get the DG-Anteros Cut files

6 formatsMillimetersWatertight

DG-Anteros Cut 3D files

The DG-Anteros Cut as exact geometry: 73 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

DG-Anteros Cut cutting files

The DG-Anteros Cut as a faceting design: 57 + 16 girdles = 73 facets, 96 index, 8-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).
