Emerald Square Cut Ruby: a step-cut square that holds its light when tilted

Brilliance 71 · Fire 53 · Scintillation 72 · in our census, where the T73 scores 94 · 37 · 80 in ruby

Concentric steps on a square. In ruby this step cut holds its light when tilted better than the diamond version does. But it returns much less light than a round.

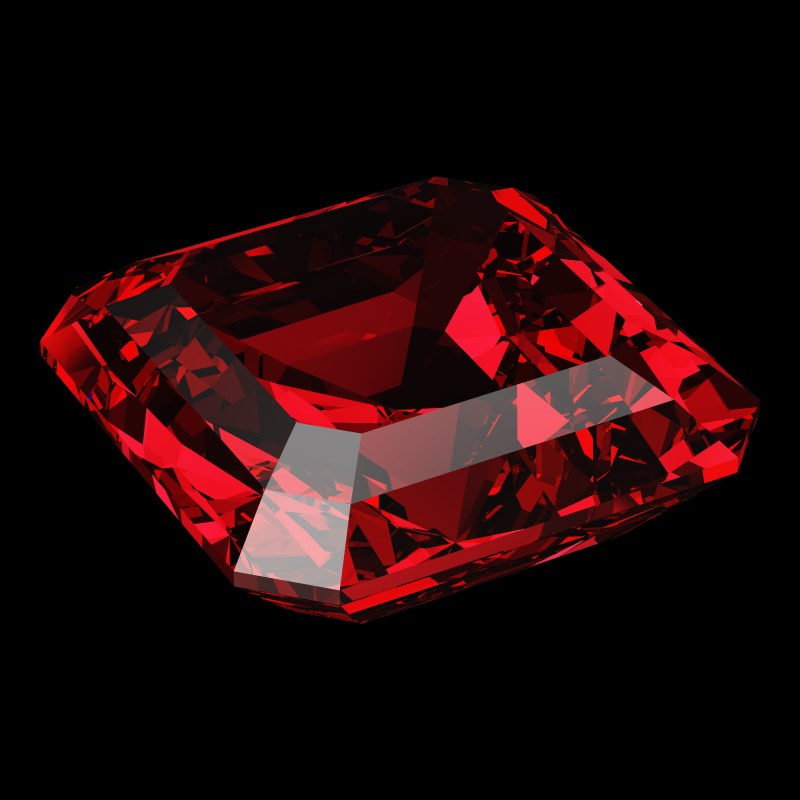

The Emerald Square Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Emerald Square Cut model, 1.00 ct, studio light.

Emerald Square Cut Ruby

Concentric steps, cropped corners and a square outline make the emerald square. Ours has only 49 facets, with a shallow 28.26° pavilion and 61.0% total depth.

Step cuts show the color of a ruby in broad, flat planes, not in sparkle. In our census this one keeps more light than the diamond version when tilted. It returns less light than a round, and more of it leaks. For its weight it faces up level with a round: 99 against 100, measured from the outline of the model.

Its pavilion is well below the guide minimum for ruby, 36.4°, but that minimum applies to round designs. The long pavilion steps of a step cut behave differently, and we have not measured a steeper version.

Is an emerald square cut good for ruby? Pros and cons

Compared with the T73 Round Brilliant in ruby and with the Emerald Square Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Emerald Square Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Emerald Square Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−6Brilliance−23Fire+16Scintillation−8Spread+8Symmetry0Shape-norm−8Tilt+11

Against the T73 Round Brilliant in ruby: ahead on 3, level on 1, behind on 4.

  • Global73, the comparison 79, difference −6
  • Brilliance71, the comparison 94, difference −23
  • Fire53, the comparison 37, difference +16
  • Scintillation72, the comparison 80, difference −8
  • Spread108, the comparison 100, difference +8
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm94, the comparison 102, difference −8
  • Tilt86, the comparison 75, difference +11
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in an emerald square cut

Holds its light better than a diamond emerald square

Tilt 86 against 79 for the Emerald Square Cut in diamond: 7 points higher

Tilted 20°, the ruby keeps 86% of its face-up light, against 79% for the diamond version. Its brilliance is also above the diamond's, 71 against 64. So this is a real gain.

Emerald Square Cut in ruby · Tilt 86

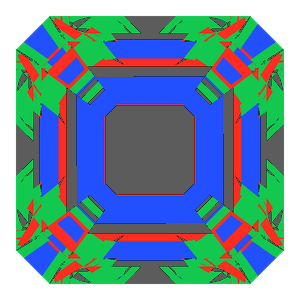

Emerald square cut in ruby tilted 0 degrees: Light Return map, 25% of the face leaking0° · 25% leak

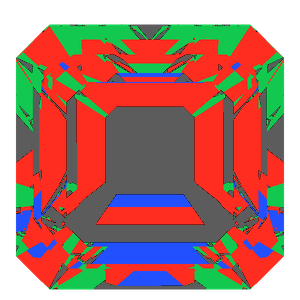

Emerald square cut in ruby tilted 10 degrees: Light Return map, 27% of the face leaking10° · 27% leak

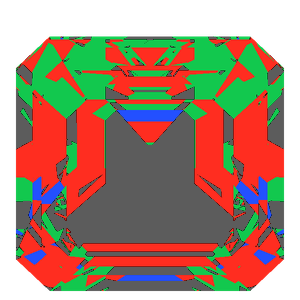

Emerald square cut in ruby tilted 20 degrees: Light Return map, 33% of the face leaking20° · 33% leak

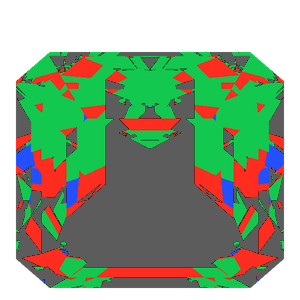

Emerald square cut in ruby tilted 30 degrees: Light Return map, 42% of the face leaking30° · 42% leak

Emerald Square Cut in diamond · Tilt 79

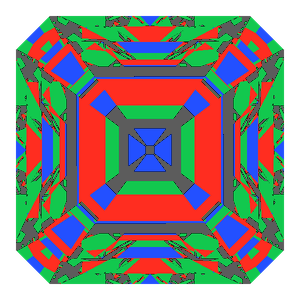

Emerald square cut in diamond tilted 0 degrees: Light Return map, 20% of the face leaking0° · 20% leak

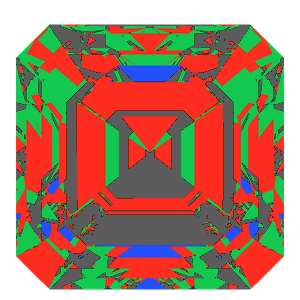

Emerald square cut in diamond tilted 10 degrees: Light Return map, 27% of the face leaking10° · 27% leak

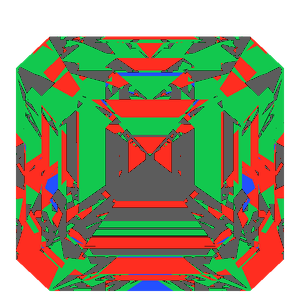

Emerald square cut in diamond tilted 20 degrees: Light Return map, 28% of the face leaking20° · 28% leak

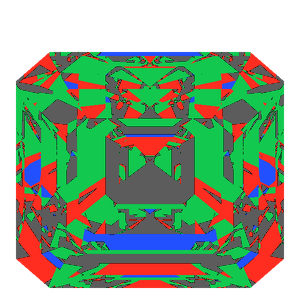

Emerald square cut in diamond tilted 30 degrees: Light Return map, 28% of the face leaking30° · 28% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

The catch with an emerald square ruby

Less fire than in diamond

Fire 53 against 84 for the Emerald Square Cut in diamond: 31 points lower

Fire 53 against 84. Broad step facets show color in occasional large flashes, and ruby gives fewer of them than diamond.

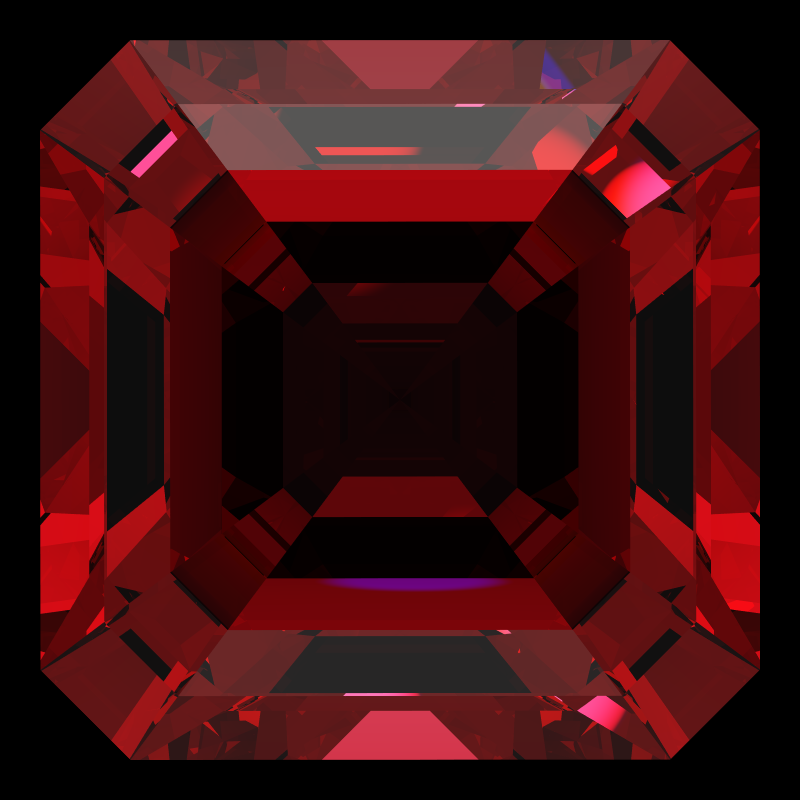

Emerald square cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 53)

Emerald Square Cut in ruby · Fire 53

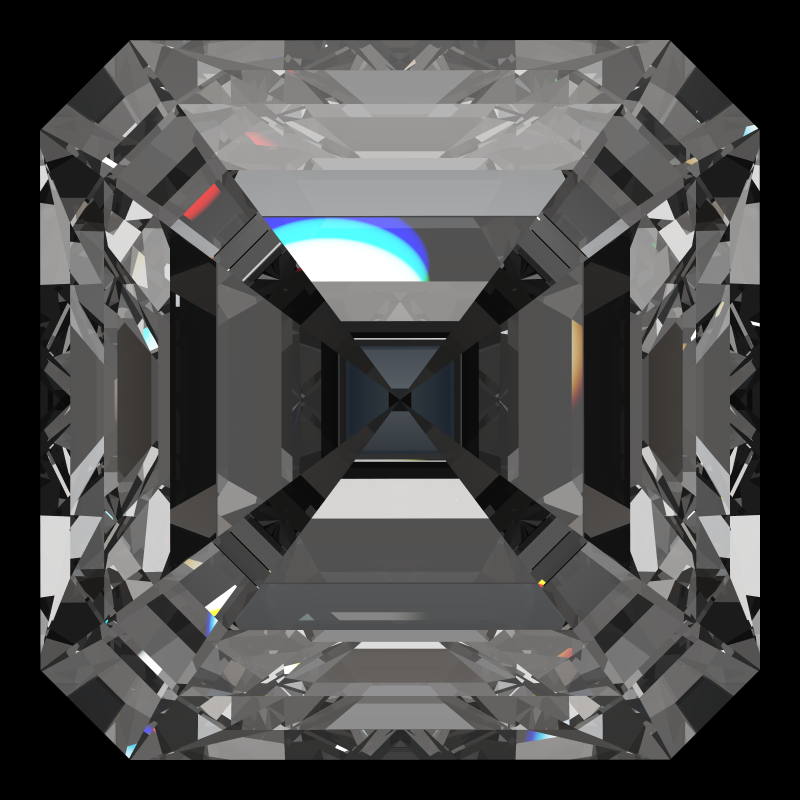

Emerald square cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 84)

Emerald Square Cut in diamond · Fire 84

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Less light than a round ruby

Brilliance 71 against 94 for the T73 Round Brilliant in ruby: 23 points lower

Brilliance 71 against 94. A step cut has no brilliant pavilion to send light back in many small reflections.

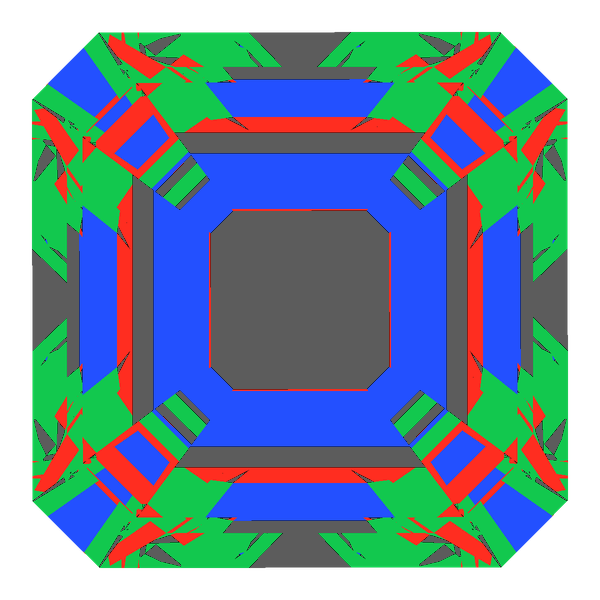

Emerald square cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 71)

Emerald Square Cut in ruby · Brilliance 71

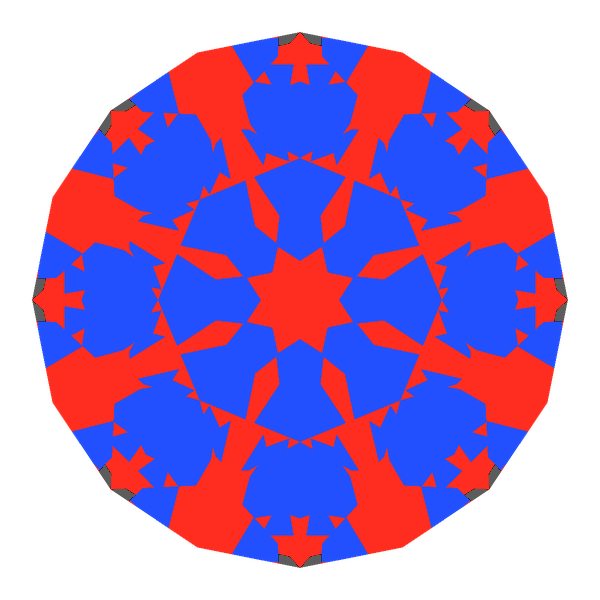

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: On a similar square footprint, a brilliant-cut Cushion Cut Ruby returns 88 in ruby. We have no measurements of this step cut with a steeper pavilion, so we cannot say what one would recover.

Try it yourself: Open this Light Return map in the simulator

Over a fifth of the light leaks

Leakage 22 against 5 for the T73 Round Brilliant in ruby: 17 points higher

The census counts 22% of the light leaking out, where the T73 in ruby loses 5%. The pavilion is at 28.26°, below the 34.6° critical angle of ruby. So light from straight above can pass through.

Emerald Square Cut in ruby · Leakage 22

Emerald square cut in ruby tilted 0 degrees: Light Return map, 25% of the face leaking0° · 25% leak
Emerald square cut in ruby tilted 10 degrees: Light Return map, 27% of the face leaking10° · 27% leak
Emerald square cut in ruby tilted 20 degrees: Light Return map, 33% of the face leaking20° · 33% leak
Emerald square cut in ruby tilted 30 degrees: Light Return map, 42% of the face leaking30° · 42% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A smaller stone keeps the same share. The Cushion Cut Ruby loses 11% in ruby.

Try it yourself: Tilt it yourself in the simulator's light map

Heavier than diamond

1.66 ct at 6.5 mm, against 1.46 ct for the same cut in diamond (+14%)

Ruby is the denser material, and the near-square outline holds a lot of it, even over a shallow pavilion. It weighs 1.66 ct at 6.5 mm in ruby and 1.46 ct in diamond.

Ruby1.66 ctDiamond1.46 ct
A Emerald Square Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Choose by millimeters.

Try it yourself: Weights in every gemstone on the Emerald Square Cut page

Who an emerald square ruby suits

The emerald square suits a ruby where a calm, architectural face and steady light matter more than brilliance. Examples are earrings, or a center stone in a clean modern setting.

For more light in a square, choose the Cushion Cut Ruby. The brilliant-cut Square Cut Ruby sits between the two, at 78.

A step cut shows inclusions more openly than a brilliant, and many rubies have fine rutile silk. Keep that in mind when you choose the rough.

Emerald Square Cut Ruby: questions

Does an emerald square ruby look bigger than a round of the same weight?

No. Even with cropped corners, its square outline fills more of its width than a circle does. But a carat of it covers about the same area as a carat of T73: 99 against 100. At 6.5 mm across, it is the heavier stone, 1.66 ct.

Is an emerald square cut good for ruby?

For steady light, yes. For light return, no: Brilliance 71 against 94, with 22% leakage.

Emerald square or square brilliant for a ruby?

The square brilliant returns more light (78 against 71) and leaks less. The emerald square holds a little more of its light when tilted (86 against 84). For their weight, the two face up alike (99 and 100).
