DG-Broken Hearts and Arrows Ruby: the T73's light, with sixteen extra facets that lift its sparkle score

Brilliance 95 · Fire 36 · Scintillation 86 · in our census, where the T73 scores 94 · 37 · 80 in ruby

A finished T73 with sixteen sliver facets added to its pavilion: a cut designed specifically for diamond. In ruby its hearts do not form, but it keeps the T73's light and leakage and scores higher for sparkle.

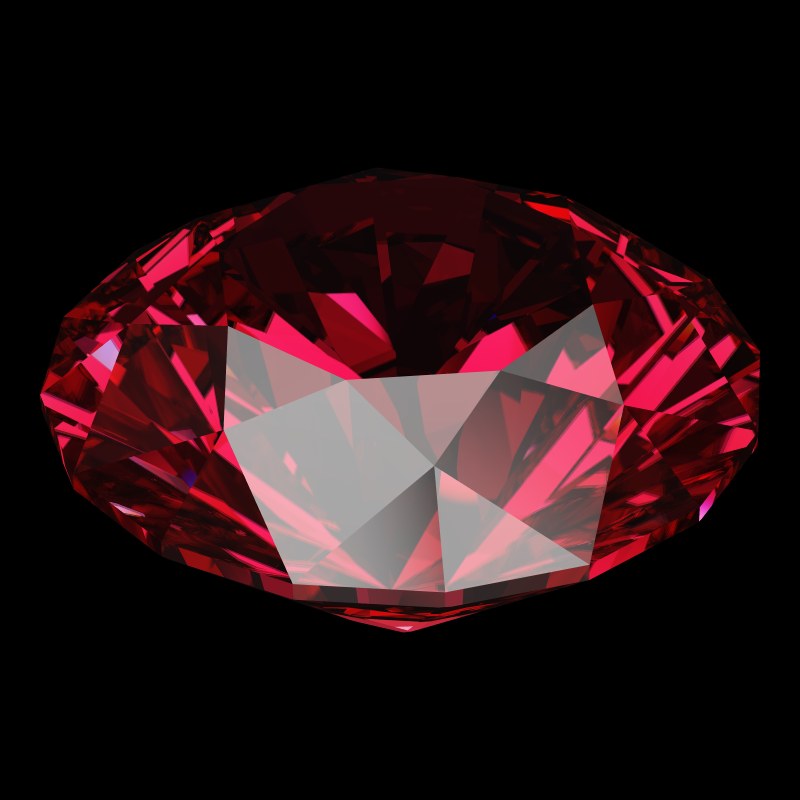

The DG-Broken Hearts and Arrows in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Broken Hearts and Arrows model, 1.00 ct, studio light.

DG-Broken Hearts and Arrows Ruby

DG-Broken Hearts and Arrows starts from the T73: a 53.0% table, a 34.5° crown and pavilion mains at 40.75°. It adds sixteen crack facets at 41.68° in eight pairs, for 89 in all. Each pair straddles a ridge where two lower girdle halves meet. On a 6.5 mm stone, each facet is a sliver at most 0.067 mm wide and 0.003 mm deep.

In diamond, our Hearts and Arrows Scope shows T73-like hearts and T73-like arrows. In each heart, a tapered red crack runs from the notch most of the way to the point.

Against the T73, only scintillation moves far enough to count. Against its diamond twin, the ruby loses on fire, tilt and leakage, and it weighs more.

Is a DG-Broken Hearts and Arrows ruby a good idea? Pros and cons

Compared with the T73 Round Brilliant in ruby and with the DG-Broken Hearts and Arrows in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Broken Hearts and Arrows in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Broken Hearts and Arrows in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+1Brilliance+1Fire−1Scintillation+6Spread0Symmetry−1Shape-norm0Tilt+1

Against the T73 Round Brilliant in ruby: ahead on 4, level on 2, behind on 2.

  • Global80, the comparison 79, difference +1
  • Brilliance95, the comparison 94, difference +1
  • Fire36, the comparison 37, difference −1
  • Scintillation86, the comparison 80, difference +6
  • Spread100, the comparison 100, difference 0
  • Symmetry99, the comparison 100, difference −1
  • Shape-norm102, the comparison 102, difference 0
  • Tilt76, the comparison 75, difference +1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in DG-Broken Hearts and Arrows

More sparkle than the T73 on our scale, from the facet count

Scintillation 86 against 80 for the T73 Round Brilliant in ruby: 6 points higher

Our census scores scintillation from the facet count alone, and each facet counts the same at any size. So sixteen facets more than the T73's 73 lift it from 80 to 86 in every stone. The crown diagrams look alike, because the added facets all sit on the pavilion; only the captioned counts differ. We cannot measure what such small slivers add to a real ruby's sparkle.

DG-Broken Hearts and Arrows · 89 facets · Scintillation 86

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Where DG-Broken Hearts and Arrows costs a ruby

Less than half the fire of a diamond cut the same way

Fire 36 against 78 for the DG-Broken Hearts and Arrows in diamond: 42 points lower

Put the identical 89-facet plan in both stones, and the census gives the diamond 78 and the ruby 36. In the two renders, the diamond scatters red, yellow and blue flashes, and the ruby shows a few pink patches on a red face. The census swaps the whole material, so it cannot say how much of the gap is dispersion, 0.018 against 0.044.

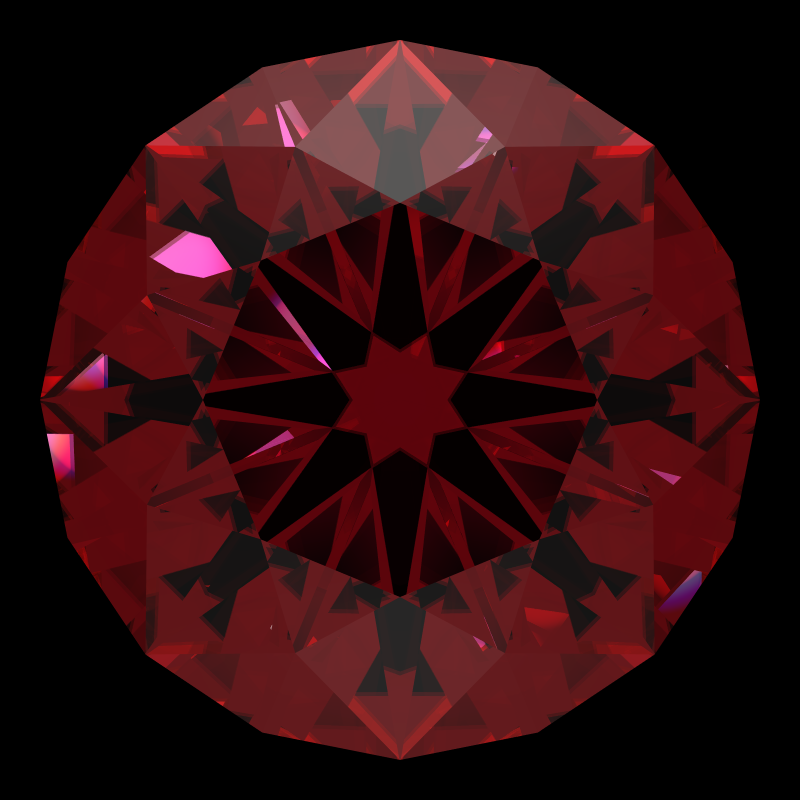

Dg-broken hearts and arrows in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 36)

DG-Broken Hearts and Arrows in ruby · Fire 36

Dg-broken hearts and arrows in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 78)

DG-Broken Hearts and Arrows in diamond · Fire 78

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: No ruby round closes this gap: even DG-Anteros Ruby, the round with the most fire, reaches only 43. Away from rounds, the Trilliant Cut Ruby scores 52 at 86 brilliance.

Try it yourself: See the fire in the 3D Gemstone Simulator

Keeps less light at a tilt than the diamond

Tilt 76 against 93 for the DG-Broken Hearts and Arrows in diamond: 17 points lower

At a 20° tilt this ruby keeps 76% of its face-up light, against 93% for the diamond cut to the same plan. In the strip, the ruby goes from almost no gray head-on to a tenth at 10° and more than a quarter at 20° and 30°. Much of that gray is under the table. The diamond's gray tops out near a seventh. Ruby's critical angle, 34.6° against diamond's 24.4°, is the likely reason.

DG-Broken Hearts and Arrows in ruby · Tilt 76

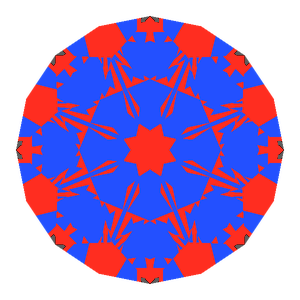

Dg-broken hearts and arrows in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak

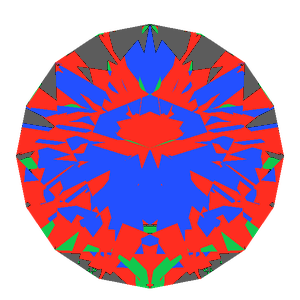

Dg-broken hearts and arrows in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
Dg-broken hearts and arrows in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak

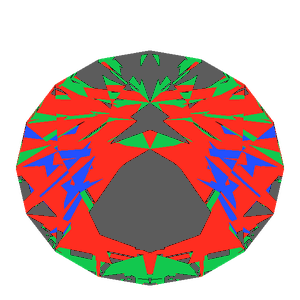

Dg-broken hearts and arrows in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak

DG-Broken Hearts and Arrows in diamond · Tilt 93

Dg-broken hearts and arrows in diamond tilted 0 degrees: Light Return map, 3% of the face leaking0° · 3% leak
Dg-broken hearts and arrows in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-broken hearts and arrows in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-broken hearts and arrows in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: DG-Anteros Ruby holds 78 when tilted and returns more light, 97. Also, DG-Miliano Ruby holds 83, on less light (90).

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

More carats than diamond at any given width

1.15 ct at 6.5 mm, against 1.01 ct for the same cut in diamond (+14%)

Ruby's specific gravity, 4.00 against 3.52 for diamond, puts about 14% more weight into the same outline. That is 1.15 ct for a 6.5 mm stone, against 1.01 ct in diamond.

Ruby1.15 ctDiamond1.01 ct
A DG-Broken Hearts and Arrows 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Density belongs to the stone, not the cut. Order by millimeters and let the carats follow.

Try it yourself: Weights in every gemstone on the DG-Broken Hearts and Arrows page

More light lost through the back than in diamond

Leakage 5 against 2 for the DG-Broken Hearts and Arrows in diamond: 3 points higher

In our census, the ruby leaks 5% through the pavilion and the diamond 2%. The T73 in ruby also prints 5%, so at our printed precision the crack facets do not change the loss. It comes with the material.

DG-Broken Hearts and Arrows in ruby · Leakage 5

Dg-broken hearts and arrows in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
Dg-broken hearts and arrows in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
Dg-broken hearts and arrows in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
Dg-broken hearts and arrows in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak

DG-Broken Hearts and Arrows in diamond · Leakage 2

Dg-broken hearts and arrows in diamond tilted 0 degrees: Light Return map, 3% of the face leaking0° · 3% leak
Dg-broken hearts and arrows in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-broken hearts and arrows in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-broken hearts and arrows in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Leak share is the same at any size. In ruby, DG-M5 Ruby leaks 0% and DG-Anteros Ruby 3%.

Try it yourself: Tilt it yourself in the simulator's light map

Who a DG-Broken Hearts and Arrows ruby suits

Choose DG-Broken Hearts and Arrows in ruby for the T73's light with a higher facet count. An example is a ruby next to a diamond of the same cut in one piece. Do not choose it for the pattern: the cracked hearts are a diamond effect.

For more light in a round ruby, DG-M5 Ruby returns 100 and DG-Anteros Ruby 97. For much finer sparkle at about the same light, DG-Vitruvio Ruby scores 98. For the red-cracked hearts, see DG-Broken Hearts and Arrows Diamond.

DG-Broken Hearts and Arrows Ruby: questions

Does a DG-Broken Hearts and Arrows ruby show broken hearts?

No. The cracked hearts appear in diamond only. In ruby, as in every other stone we render, the hearts do not form at all. The scores on this page describe light, not the pattern.

Is DG-Broken Hearts and Arrows better than the T73 in ruby?

For sparkle on our scale: Scintillation 86 against 80. The other scores are within our margins: Brilliance 95 against 94, Fire 36 against 37, leakage 5% against 5%.

How much fire does a DG-Broken Hearts and Arrows ruby have?

Fire 36 in our census. The same cut in diamond scores 78.

What does a 6.5 mm DG-Broken Hearts and Arrows ruby weigh?

About 1.15 ct, the same as a T73 ruby of that width. In diamond it weighs 1.01 ct.
