Princess Cut Ruby: pointed square corners, and more than a quarter of the light lost

Brilliance 68 · Fire 52 · Scintillation 78 · in our census, where the T73 scores 94 · 37 · 80 in ruby

Sharp corners and chevron pavilion facets. In ruby the princess returns more light than in diamond, 68 against 57. But 27% of the light leaks out.

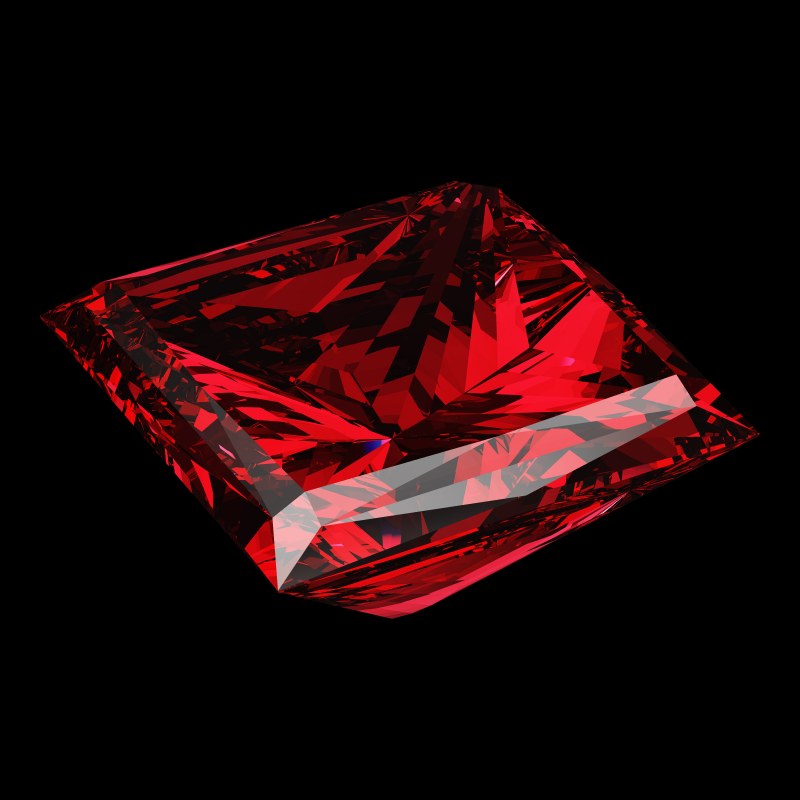

The Princess Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Princess Cut model, 1.00 ct, studio light.

Princess Cut Ruby

Pointed corners and a chevron pattern on the pavilion define the princess. Ours is deep, 68.5%, with 85 facets over a 41.94° pavilion.

In ruby it returns 68 for brilliance. That is more than the princess in diamond (57) but much less than the T73 in ruby. Over a quarter of the light leaks.

Princess-cut rubies are mostly small calibrated stones for channel and invisible settings, where their straight edges sit flush.

Princess cut ruby: a good idea? Pros and cons

Pros

None by our margins. It is brighter than a diamond princess, but not than a round ruby.

Compared with the T73 Round Brilliant in ruby and with the Princess Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Princess Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Princess Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−8Brilliance−26Fire+15Scintillation−2Spread−5Symmetry0Shape-norm+4Tilt+1

Against the T73 Round Brilliant in ruby: ahead on 3, level on 1, behind on 4.

  • Global71, the comparison 79, difference −8
  • Brilliance68, the comparison 94, difference −26
  • Fire52, the comparison 37, difference +15
  • Scintillation78, the comparison 80, difference −2
  • Spread95, the comparison 100, difference −5
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm106, the comparison 102, difference +4
  • Tilt76, the comparison 75, difference +1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in a princess cut

No score clears our margin in its favor against the baseline where its gap is larger. Brilliance, 68, is above the diamond princess's 57 but well below the T73's 94. Fire, 52, beats the T73's 37 but trails the 83 of diamond. Each score counts once, where the gap is larger, so both are cons. The princess offers the sharpest corners of our square-outline cuts.

The princess's costs in ruby

Less fire than a diamond princess

Fire 52 against 83 for the Princess Cut in diamond: 31 points lower

Fire 52 against 83. In ruby the princess still has more fire than any round we measure: a larger share of its returned light leaves as color. But it has much less than the diamond princess.

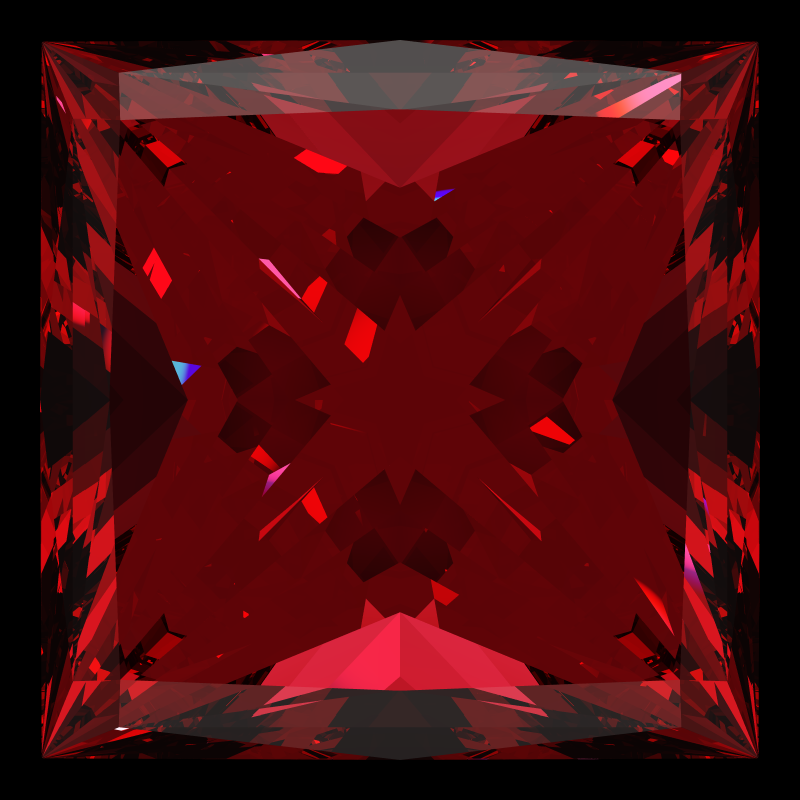

Princess cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 52)

Princess Cut in ruby · Fire 52

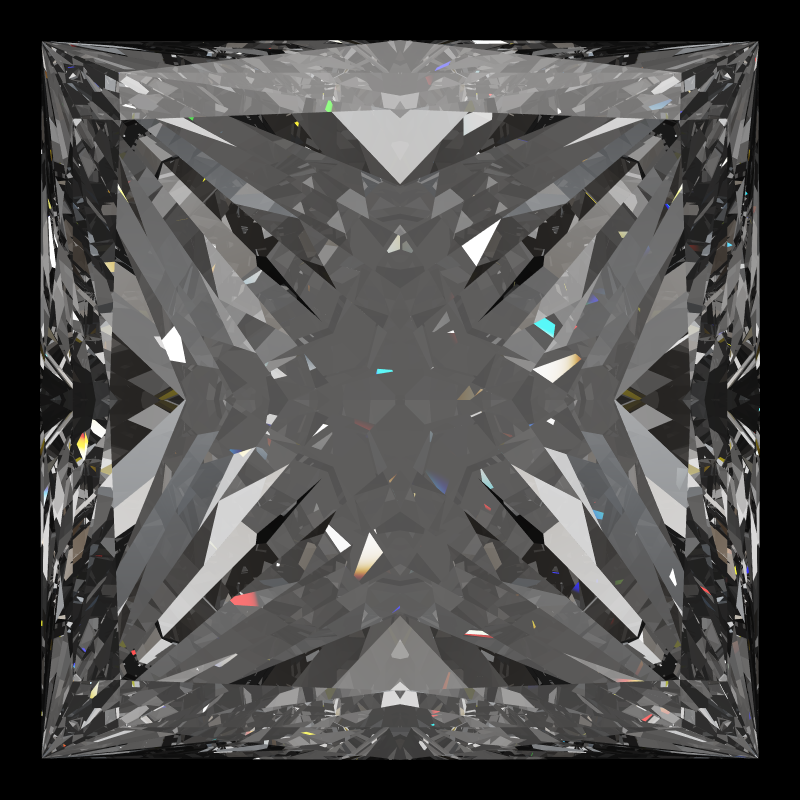

Princess cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 83)

Princess Cut in diamond · Fire 83

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Much less light than a round ruby

Brilliance 68 against 94 for the T73 Round Brilliant in ruby: 26 points lower

Brilliance 68 against 94. On our ruby pages, that is level with the Asscher and below the square, the cushion, the square radiant and the emerald square.

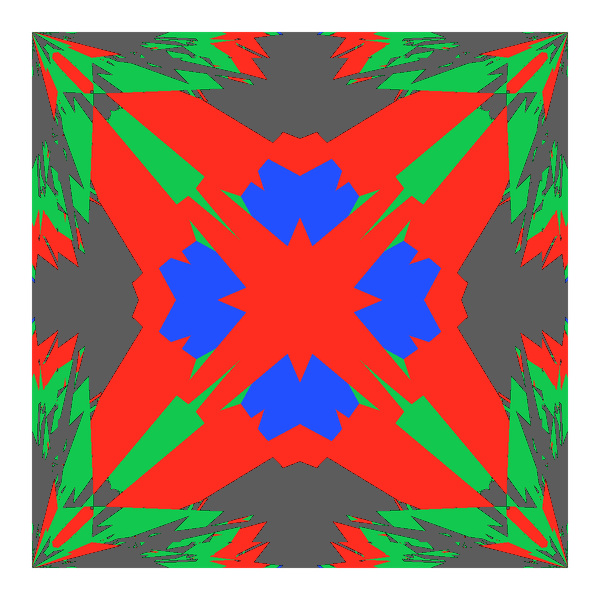

Princess cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 68)

Princess Cut in ruby · Brilliance 68

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For a square-outline ruby with more light, the Cushion Cut Ruby returns 88 and the Square Cut Ruby 78.

Try it yourself: Open this Light Return map in the simulator

More than a quarter of the light leaks

Leakage 27 against 5 for the T73 Round Brilliant in ruby: 22 points higher

Our ruby census loses 27% through the pavilion, and the T73 loses 5%. The pavilion is at 41.94°, above the 36.4° guide minimum for ruby. So our data does not point to a steeper pavilion as the fix.

Princess Cut in ruby · Leakage 27

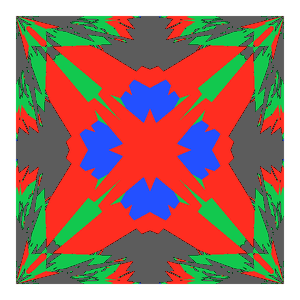

Princess cut in ruby tilted 0 degrees: Light Return map, 27% of the face leaking0° · 27% leak

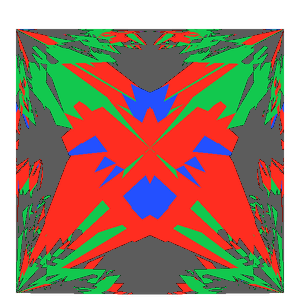

Princess cut in ruby tilted 10 degrees: Light Return map, 29% of the face leaking10° · 29% leak

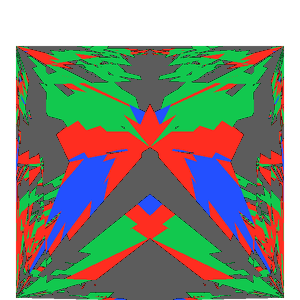

Princess cut in ruby tilted 20 degrees: Light Return map, 35% of the face leaking20° · 35% leak

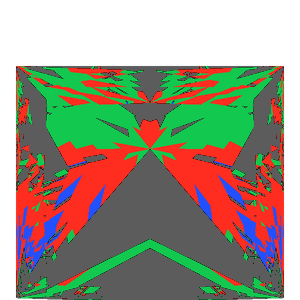

Princess cut in ruby tilted 30 degrees: Light Return map, 41% of the face leaking30° · 41% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A calibrated 3 mm princess leaks the same share as a 7 mm one. The Cushion Cut Ruby leaks 11%.

Try it yourself: Tilt it yourself in the simulator's light map

Heavier than a diamond princess

1.68 ct at 6.5 mm, against 1.48 ct for the same cut in diamond (+14%)

A 6.5 mm princess, 68.5% deep, weighs 1.68 ct in ruby and 1.48 ct in diamond. Ruby is the denser stone and is about 14% heavier. Measured per carat, the princess faces up level with the T73, 101 against 100.

Ruby1.68 ctDiamond1.48 ct
A Princess Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Choose by millimeters.

Try it yourself: Weights in every gemstone on the Princess Cut page

Who a princess ruby suits

The princess suits rubies cut for a line of square stones, where sharp corners must sit tightly together. As a single center stone, it returns less light than the square, cushion or square radiant, and no more than the Asscher. The corners need protection, usually with V-prongs.

For a square ruby with more light, choose the Cushion Cut Ruby or the Square Cut Ruby.

In a channel of matched princess rubies, even color along the row usually matters more than the brilliance of one stone. If every stone has the same 41.94° pavilion, the row stays even.

Princess Cut Ruby: questions

Is a princess cut good for ruby?

Not if light comes first. It returns 68 against the T73's 94, and 27% leaks.

Is a princess ruby brighter than a princess diamond?

In our census, yes, 68 to 57. The chevron pavilion suits ruby better than it suits diamond. The diamond keeps the fire, 83 to 52.

What does a 6.5 mm princess ruby weigh?

About 1.68 ct. In diamond it weighs 1.48 ct.
