Trillion Cut Ruby: a curved-sided triangle that trails the round on light

Brilliance 72 · Fire 59 · Scintillation 80 · in our census, where the T73 scores 94 · 37 · 80 in ruby

Curved sides and a shallow pavilion. In ruby the trillion matches the T73's face for its weight, and more light leaks through it.

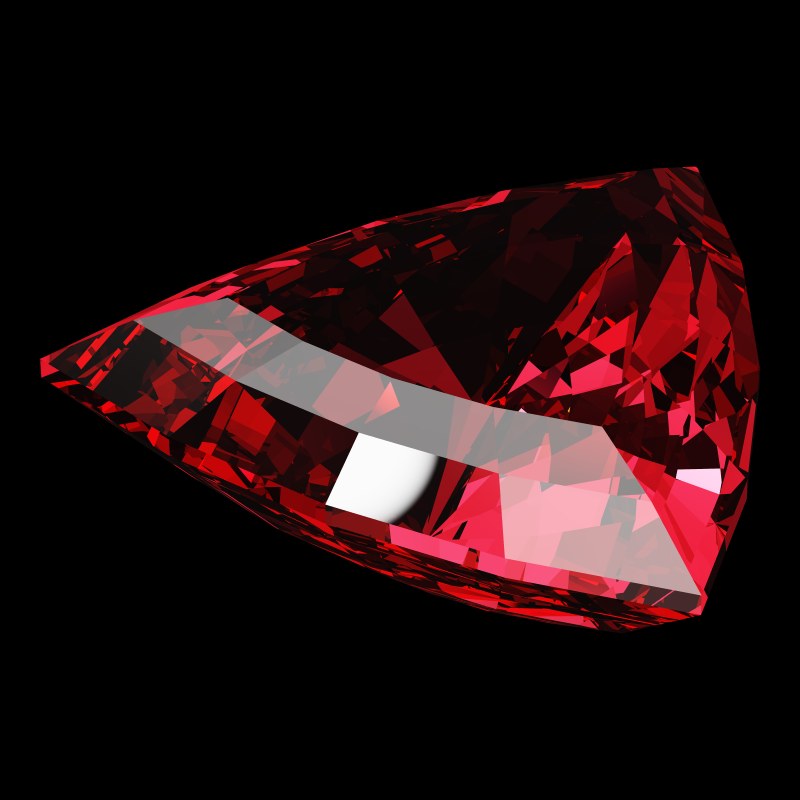

The Trillion Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Trillion Cut model, 1.00 ct, studio light.

Trillion Cut Ruby

A trillion bends its three sides gently outward, where the sides of a trilliant are straight. Our model is shallow for a brilliant, 50.7% deep, with a 56.6% table, a 36.0° crown, a 31.91° pavilion and 73 facets.

That pavilion is below the guide minimum for ruby, 36.4°, and below its critical angle of 34.6° too. Light that comes straight down through the table meets it at an angle where it can pass through. That fits the leakage we measure. But the shallow trillion does not face up larger for its weight. A triangle covers less of its width than a circle, and that cancels what the thin profile saves.

Trillions are a familiar solitaire shape for colored stones, rubies included.

Is a trillion a good cut for ruby? Pros and cons

Pros

None by our margins. Face-up size per carat ties with the T73's, 100 to 100.

Compared with the T73 Round Brilliant in ruby and with the Trillion Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Trillion Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Trillion Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−3Brilliance−22Fire+22Scintillation0Spread+7Symmetry0Shape-norm−19Tilt+12

Against the T73 Round Brilliant in ruby: ahead on 3, level on 2, behind on 3.

  • Global76, the comparison 79, difference −3
  • Brilliance72, the comparison 94, difference −22
  • Fire59, the comparison 37, difference +22
  • Scintillation80, the comparison 80, difference 0
  • Spread107, the comparison 100, difference +7
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm83, the comparison 102, difference −19
  • Tilt87, the comparison 75, difference +12
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in a trillion

The trillion beats a baseline on fire, brilliance and tilt, but our rules count none of them as a pro. Fire, 59, beats the T73's 37, and Brilliance, 72, beats the diamond trillion's 67. But each score counts once, where its gap is larger, and both gaps are larger the other way. Tilt reads 87 against 75, and the diamond trillion keeps as much. A tilt pro needs brilliance within five points of the baseline it beats, here the T73's 94. Measured from the outline, its face for its weight is level with the round, 100 to 100. What it offers is the curved three-sided outline in a hard stone.

The catch with a trillion ruby

Less fire than a diamond trillion

Fire 59 against 87 for the Trillion Cut in diamond: 28 points lower

A diamond trillion scores 87 for fire and the ruby 59. In ruby it has the most fire of the three-sided cuts we measure, but it is well below the diamond trillion.

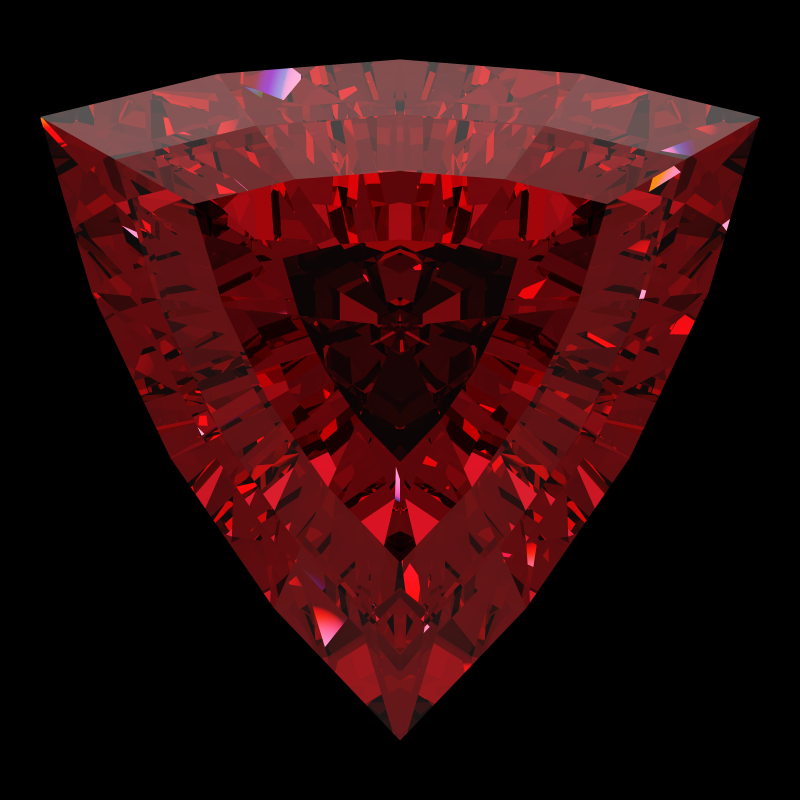

Trillion cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 59)

Trillion Cut in ruby · Fire 59

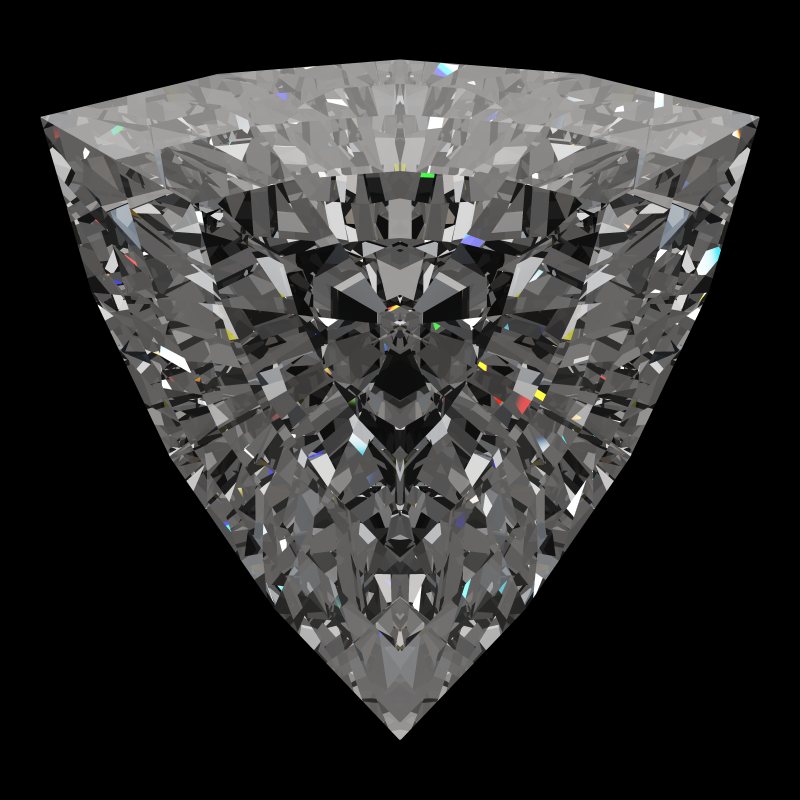

Trillion cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 87)

Trillion Cut in diamond · Fire 87

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Less light than a round ruby

Brilliance 72 against 94 for the T73 Round Brilliant in ruby: 22 points lower

Brilliance 72 against 94. Of the three-sided cuts on our ruby pages, only the trilliant returns more.

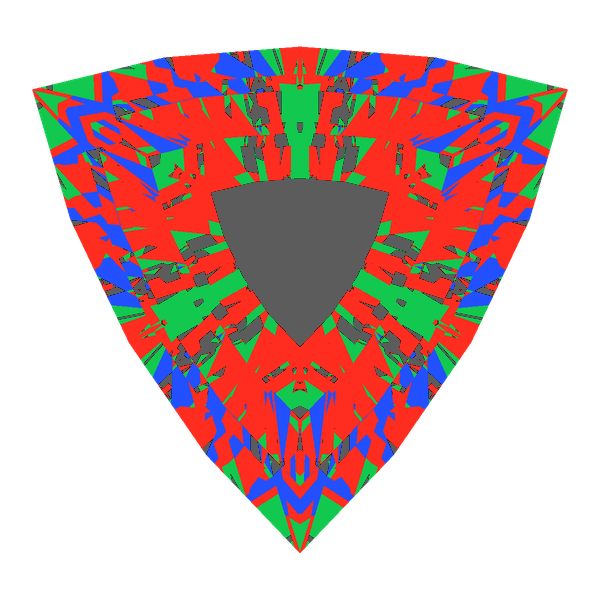

Trillion cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 72)

Trillion Cut in ruby · Brilliance 72

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For a three-sided ruby with more light, the Trilliant Cut Ruby returns 86. We have no measurements of a steeper trillion, so we cannot say how much a deeper pavilion would recover.

Try it yourself: Open this Light Return map in the simulator

Heavier than the diamond version

0.91 ct at 6.5 mm, against 0.80 ct for the same cut in diamond (+14%)

At 6.5 mm across, the ruby trillion weighs 0.91 ct and a diamond one 0.80 ct. Among our ruby pages, only the triangle is lighter at that width.

Ruby0.91 ctDiamond0.80 ct
A Trillion Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: The cut has nothing to fix here: choose it by millimeters.

Try it yourself: Weights in every gemstone on the Trillion Cut page

More leakage than the T73

Leakage 17 against 5 for the T73 Round Brilliant in ruby: 12 points higher

In our census, 17% of the light escapes the ruby trillion, and the T73 loses 5%.

Trillion Cut in ruby · Leakage 17

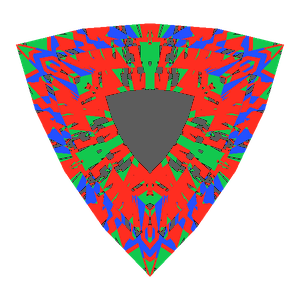

Trillion cut in ruby tilted 0 degrees: Light Return map, 17% of the face leaking0° · 17% leak
Trillion cut in ruby tilted 10 degrees: Light Return map, 18% of the face leaking10° · 18% leak

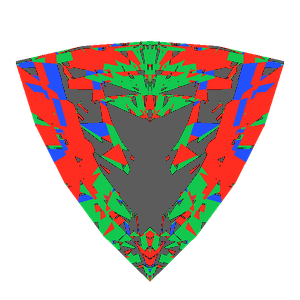

Trillion cut in ruby tilted 20 degrees: Light Return map, 30% of the face leaking20° · 30% leak

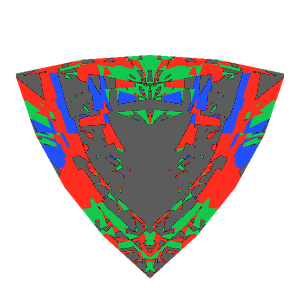

Trillion cut in ruby tilted 30 degrees: Light Return map, 43% of the face leaking30° · 43% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A smaller trillion leaks the same share. The straight-sided Trilliant Cut Ruby leaks 12%.

Try it yourself: Tilt it yourself in the simulator's light map

Who a trillion ruby suits

The trillion suits a ruby solitaire where the curved triangular outline is the point, and the buyer can accept less light for it.

In ruby, the straight-sided Trilliant Cut Ruby is the brighter triangle, and DG-M5 Ruby is the brightest cut of all. If more face for the weight is the aim, the elongated shapes lead. The Pear Cut Ruby faces up at 115 and the Marquise Cut Ruby at 121, both with less light than this cut.

Trillion Cut Ruby: questions

Does a trillion ruby look bigger than a round?

Not for its weight. Measured from the outline of the model, its face-up size per carat is 100, level with the T73's 100. Cut to the same width, it is the lighter stone, about 0.91 ct at 6.5 mm, because the triangle also covers less area.

Is a trillion ruby bright?

Moderately. It returns 72 against the T73's 94, and 17% of the light escapes through its shallow pavilion.

Why does a trillion ruby leak light?

Its 31.91° pavilion is below the 34.6° critical angle of ruby, so light from straight above can pass through it.

Get the Trillion Cut files

6 formatsMillimetersWatertight

Trillion Cut 3D files

The Trillion Cut as exact geometry: 73 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad120 index

Trillion Cut cutting files

The Trillion Cut as a faceting design: 61 + 12 girdles = 73 facets, 120 index, 3-fold symmetry, ready for the machine.

  • .ascGemCad design file, 120 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Save with a bundle: the Trillion Cut cutting files are also in Faceter's Classics, 10 cuts for €22.49 until 1 December, then €29.99 (€69.90 as single files). Buy the bundle.

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
