Cushion Cut Ruby: more light than a diamond cushion, and fine sparkle

Brilliance 88 · Fire 36 · Scintillation 85 · in our census, where the T73 scores 94 · 37 · 80 in ruby

In our census the cushion is the brightest non-round ruby we measure. Its Brilliance is 88, ahead of 80 for the same cushion in diamond.

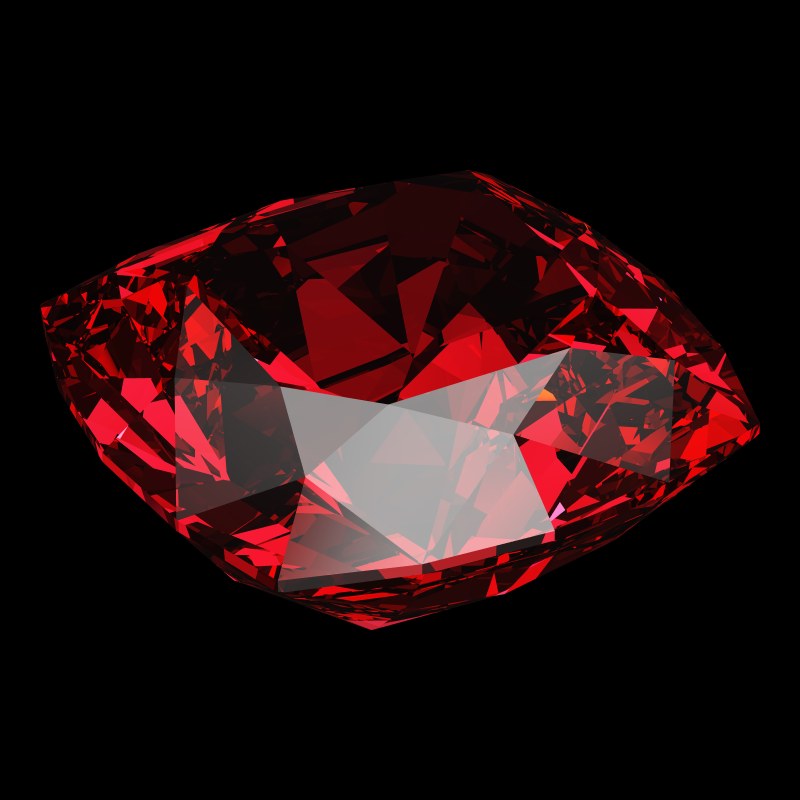

The Cushion Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Cushion Cut model, 1.00 ct, studio light.

Cushion Cut Ruby

Ours is the modern brilliant cushion: a square with rounded corners, 85 facets, a 39.56° pavilion and a deep 65.0% profile.

In ruby it returns 88 for brilliance. That is more than the cushion in diamond (80) and less than the T73 in ruby (94). Our rule counts the larger gap, so brilliance is a pro here. Sparkle is also slightly above the T73.

The cushion follows the chunky, rounded shape of some ruby rough, and that is one reason it is so common in this stone.

Does a cushion cut suit ruby? Pros and cons

Compared with the T73 Round Brilliant in ruby and with the Cushion Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Cushion Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Cushion Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−3Brilliance−6Fire−1Scintillation+5Spread−2Symmetry−3Shape-norm+1Tilt−3

Against the T73 Round Brilliant in ruby: ahead on 2, behind on 6.

  • Global76, the comparison 79, difference −3
  • Brilliance88, the comparison 94, difference −6
  • Fire36, the comparison 37, difference −1
  • Scintillation85, the comparison 80, difference +5
  • Spread98, the comparison 100, difference −2
  • Symmetry97, the comparison 100, difference −3
  • Shape-norm103, the comparison 102, difference +1
  • Tilt72, the comparison 75, difference −3
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in a cushion

More light than a diamond cushion

Brilliance 88 against 80 for the Cushion Cut in diamond: 8 points higher

The ruby cushion scores 88 for brilliance, and the diamond cushion 80. The angles of the cushion seem to suit the lower refractive index of ruby better than that of diamond. The T73 in ruby still returns more, 94.

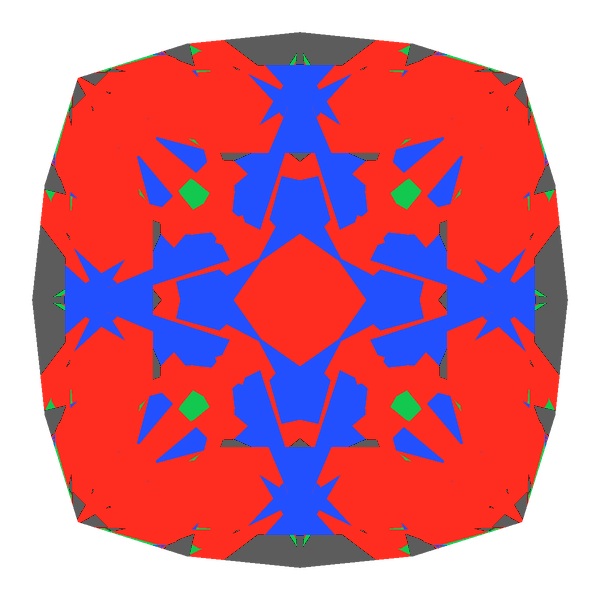

Cushion cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 88)

Cushion Cut in ruby · Brilliance 88

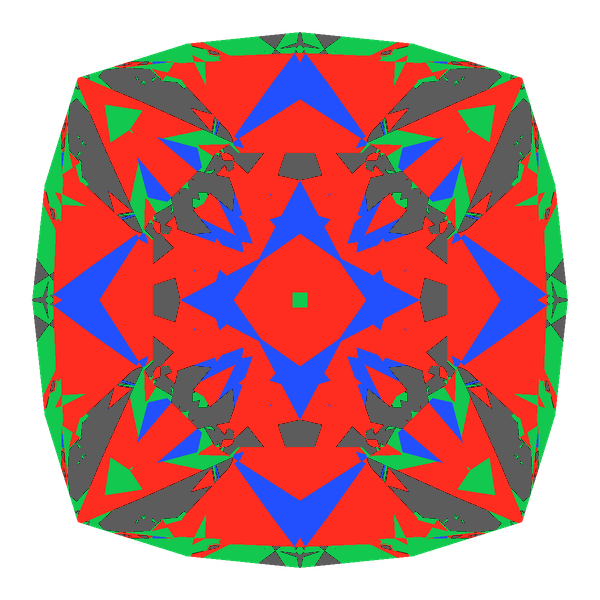

Cushion cut in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 80)

Cushion Cut in diamond · Brilliance 80

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

Try it yourself: Open this Light Return map in the simulator

A little more sparkle than the T73

Scintillation 85 against 80 for the T73 Round Brilliant in ruby: 5 points higher

With 85 facets against 73, the scintillation score is a few points above the T73's.

Cushion Cut · 85 facets · Scintillation 85

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Where the cushion costs a ruby

Much less fire than a diamond cushion

Fire 36 against 73 for the Cushion Cut in diamond: 37 points lower

Fire 36 against 73 for the same facets in diamond.

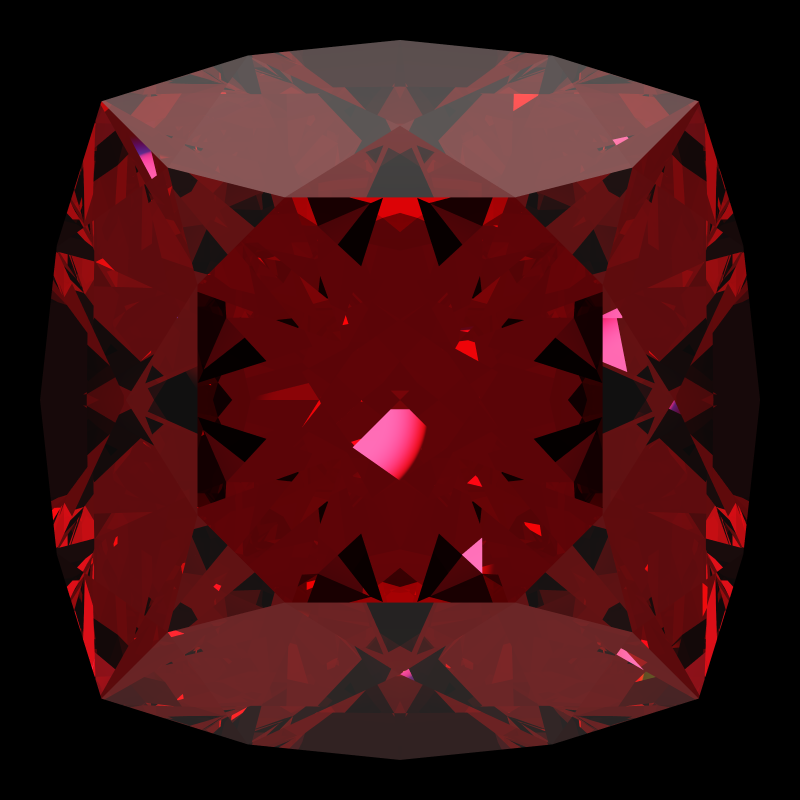

Cushion cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 36)

Cushion Cut in ruby · Fire 36

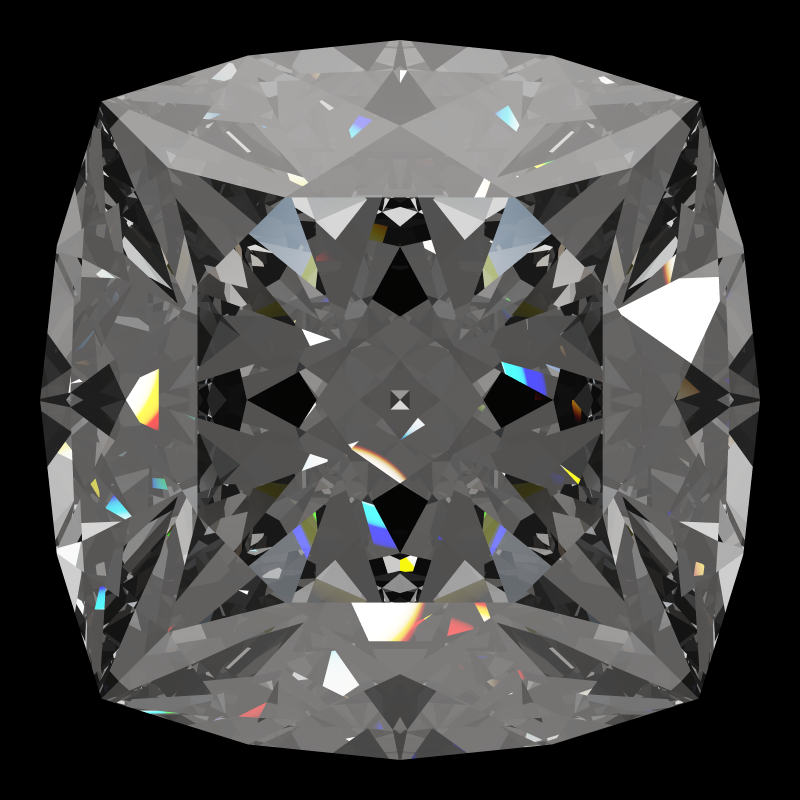

Cushion cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 73)

Cushion Cut in diamond · Fire 73

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: Among cuts close to the T73's light, the Trilliant Cut Ruby increases fire to 52.

Try it yourself: See the fire in the 3D Gemstone Simulator

Holds less light when tilted

Tilt 72 against 92 for the Cushion Cut in diamond: 20 points lower

Tilted 20°, the ruby cushion keeps 72% of its face-up light, and the diamond cushion 92%. That is the lowest tilt score of our square-outline ruby pages.

Cushion Cut in ruby · Tilt 72

Cushion cut in ruby tilted 0 degrees: Light Return map, 7% of the face leaking0° · 7% leak

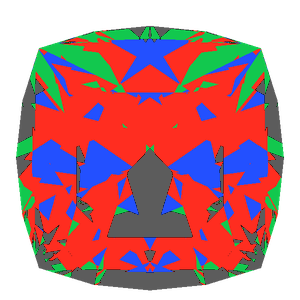

Cushion cut in ruby tilted 10 degrees: Light Return map, 16% of the face leaking10° · 16% leak

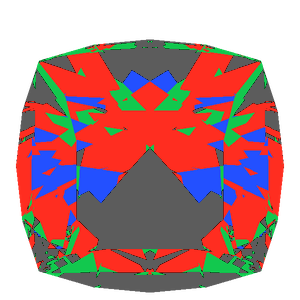

Cushion cut in ruby tilted 20 degrees: Light Return map, 32% of the face leaking20° · 32% leak

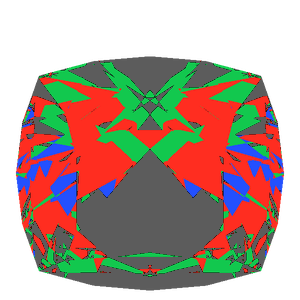

Cushion cut in ruby tilted 30 degrees: Light Return map, 36% of the face leaking30° · 36% leak

Cushion Cut in diamond · Tilt 92

Cushion cut in diamond tilted 0 degrees: Light Return map, 16% of the face leaking0° · 16% leak

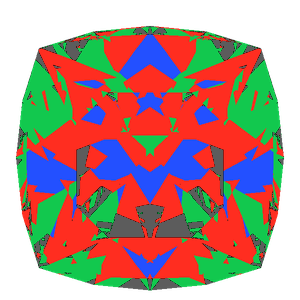

Cushion cut in diamond tilted 10 degrees: Light Return map, 8% of the face leaking10° · 8% leak

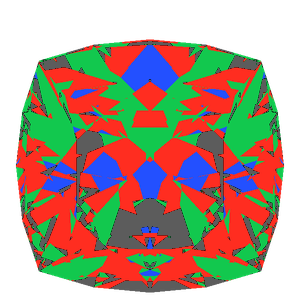

Cushion cut in diamond tilted 20 degrees: Light Return map, 14% of the face leaking20° · 14% leak

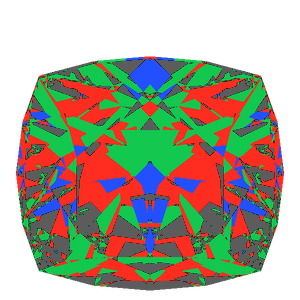

Cushion cut in diamond tilted 30 degrees: Light Return map, 22% of the face leaking30° · 22% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: DG-Miliano Ruby keeps 83 at 20° in ruby. With 90 brilliance, it loses no light to the cushion. The cost is a round outline.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Deep and dense

1.44 ct at 6.5 mm, against 1.27 ct for the same cut in diamond (+14%)

This cushion is 65.0% deep, in a stone denser than diamond. At 6.5 mm it comes to 1.44 ct in ruby, 1.27 ct in diamond.

Ruby1.44 ctDiamond1.27 ct
A Cushion Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Order a cushion ruby by millimeters.

Try it yourself: Weights in every gemstone on the Cushion Cut page

A little more leakage than a round

Leakage 11 against 5 for the T73 Round Brilliant in ruby: 6 points higher

The ruby cushion loses 11% through the pavilion, and the T73 5%. That is low for a fancy shape: among our non-round ruby pages, only the trilliant comes close.

Cushion Cut in ruby · Leakage 11

Cushion cut in ruby tilted 0 degrees: Light Return map, 7% of the face leaking0° · 7% leak
Cushion cut in ruby tilted 10 degrees: Light Return map, 16% of the face leaking10° · 16% leak
Cushion cut in ruby tilted 20 degrees: Light Return map, 32% of the face leaking20° · 32% leak
Cushion cut in ruby tilted 30 degrees: Light Return map, 36% of the face leaking30° · 36% leak

T73 Round Brilliant in ruby · Leakage 5

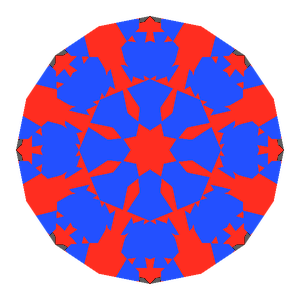

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak

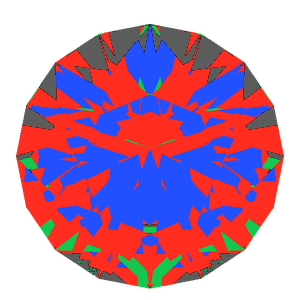

T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak

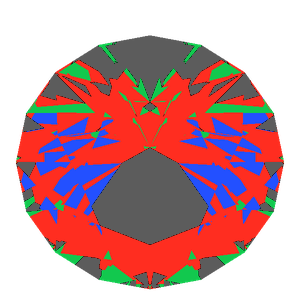

T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak

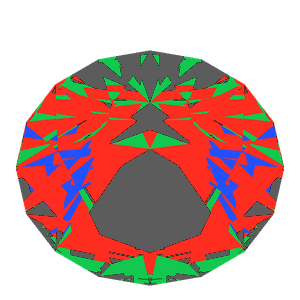

T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The 39.56° pavilion is already above the 36.4° guide minimum for ruby, so our data does not support a steeper one as the fix. Instead, DG-Anteros Ruby leaks less, 3%.

Try it yourself: Tilt it yourself in the simulator's light map

Who a cushion ruby suits

If a ruby is not to be round, our numbers favor the cushion. Of the non-round cuts on our ruby pages, it has the most light and the least leakage. A vintage-style ruby ring is the natural place for it.

Only rounds return more light in ruby, led by DG-M5 Ruby. For color flashes at almost the same light, choose the Trilliant Cut Ruby.

Cushion Cut Ruby: questions

Is a cushion a good cut for ruby?

Yes, in our census: Brilliance 88 and 11% leakage, the best of the non-round shapes we measure in ruby.

Cushion ruby or oval ruby?

For light, the cushion: 88 against 66, and it leaks less. The oval has much more fire (74 against 36).

What does a 6.5 mm cushion ruby weigh?

A 6.5 mm ruby cushion, 65.0% deep, weighs about 1.44 ct. In diamond it weighs 1.27 ct.

Does the cushion show a ruby's color well?

We do not measure color. Light return carries the body color to the eye, and this cushion returns more light than any other non-round ruby we measure.
