Mazarin Cut Ruby: more light than the Peruzzi or the Old Mine, and well short of a round

Brilliance 58 · Fire 40 · Scintillation 61 · in our census, where the T73 scores 94 · 37 · 80 in ruby

A cushion of 42 facets. In ruby it returns 58 for brilliance to the 94 of a modern round, and it loses 37% of its light through the pavilion.

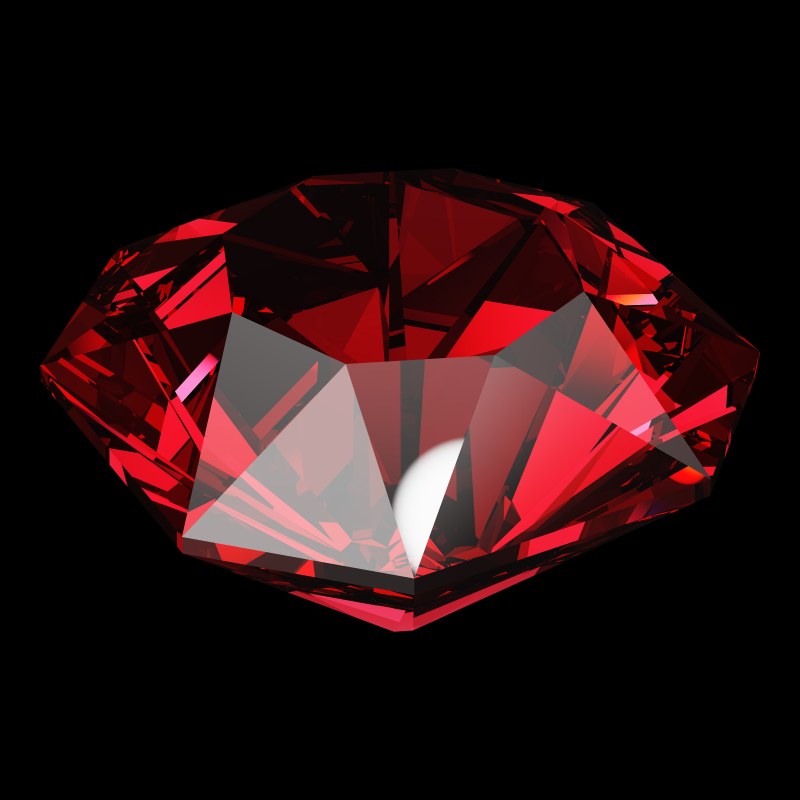

The Mazarin Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Mazarin Cut model, 1.00 ct, studio light.

Mazarin Cut Ruby

Sixteen facets above the girdle and sixteen below, on a cushion with an octagonal table: that is the Mazarin, or double cut. Our model has 42 facets, a 57.5% table, a 31.4° crown and a 44.33° pavilion, 68.8% deep.

In diamond, the Peruzzi is the brightest of the three historic cushions we measure. In ruby the Peruzzi drops to last, and the Mazarin leads. It returns 58, the Old Mine 50 and the Peruzzi 46.

Is a Mazarin cut good for ruby? Pros and cons

Pros

None by our margins. Tilt reads 100, on modest light.

Compared with the T73 Round Brilliant in ruby and with the Mazarin Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Mazarin Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Mazarin Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−13Brilliance−36Fire+3Scintillation−19Spread−4Symmetry0Shape-norm−39Tilt+25

Against the T73 Round Brilliant in ruby: ahead on 2, level on 1, behind on 5.

  • Global66, the comparison 79, difference −13
  • Brilliance58, the comparison 94, difference −36
  • Fire40, the comparison 37, difference +3
  • Scintillation61, the comparison 80, difference −19
  • Spread96, the comparison 100, difference −4
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm63, the comparison 102, difference −39
  • Tilt100, the comparison 75, difference +25
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in a Mazarin cut

Tilt and Fire both beat the T73, but neither is a pro by our rules. The Tilt of the Mazarin is 100 to the T73's 75. But a stone that returns 58 keeps all of a modest amount, and we count tilt as a pro only near the T73's light. Fire is slightly above the T73 in ruby, 40 to 37. But the larger gap is to diamond, so fire is among the cons. What it does offer is the historic cushion with the most light of the three we measure in ruby.

The Mazarin's costs in ruby

Much less light than a round ruby

Brilliance 58 against 94 for the T73 Round Brilliant in ruby: 36 points lower

Its 44.33° pavilion is above the 36.4° guide minimum for ruby, under a shallow 31.4° crown. But the cushion still sends a good part of its light out through the pavilion. Of the three historic cushions we measure in ruby, it returns the most.

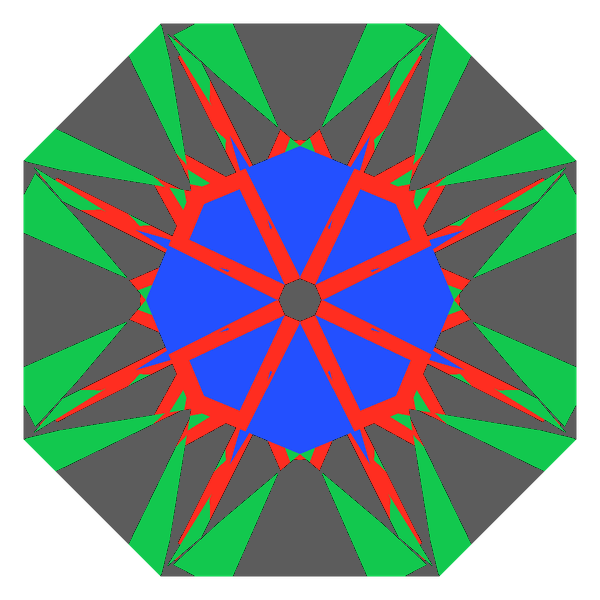

Mazarin cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 58)

Mazarin Cut in ruby · Brilliance 58

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: We have not measured a steeper Mazarin, and its 44.33° pavilion is already above the 36.4° guide minimum. For a cushion with much more light, the modern Cushion Cut Ruby returns 88. The historic round Old European Cut Ruby returns 78.

Try it yourself: Open this Light Return map in the simulator

Over a third of the light leaks

Leakage 37 against 5 for the T73 Round Brilliant in ruby: 32 points higher

In our census, 37% leaves through the pavilion, and the T73 loses 5%. That is still less than the Old Mine (49%) or the Peruzzi (52%) lose in ruby.

Mazarin Cut in ruby · Leakage 37

Mazarin cut in ruby tilted 0 degrees: Light Return map, 41% of the face leaking0° · 41% leak

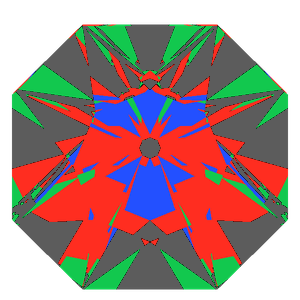

Mazarin cut in ruby tilted 10 degrees: Light Return map, 38% of the face leaking10° · 38% leak

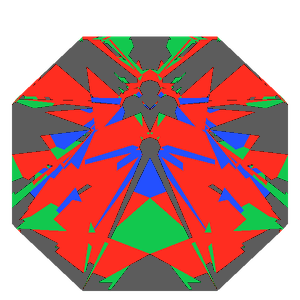

Mazarin cut in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak

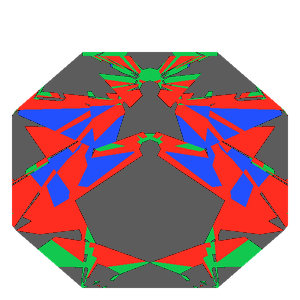

Mazarin cut in ruby tilted 30 degrees: Light Return map, 42% of the face leaking30° · 42% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Size does not change the share. The modern Cushion Cut Ruby leaks 11%.

Try it yourself: Tilt it yourself in the simulator's light map

Less fire than a diamond Mazarin

Fire 40 against 63 for the Mazarin Cut in diamond: 23 points lower

Fire 40 in ruby, 63 for the diamond Mazarin. But of the three historic cushions here, the ruby Mazarin has the most fire. The Old Mine scores 36, and the Peruzzi 22.

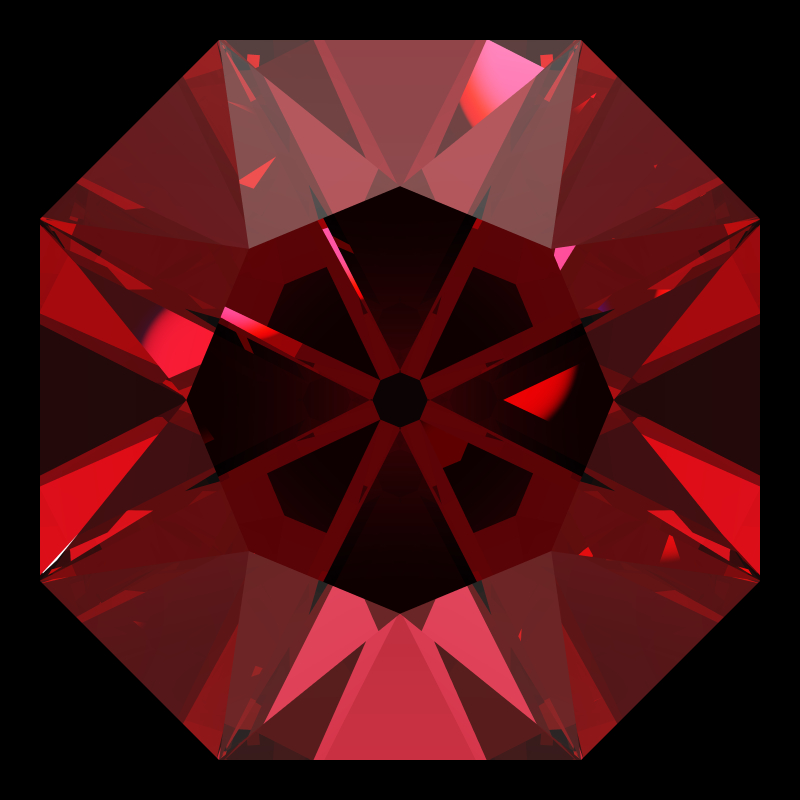

Mazarin cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 40)

Mazarin Cut in ruby · Fire 40

Mazarin cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 63)

Mazarin Cut in diamond · Fire 63

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: For fire at almost the T73's light, the Trilliant Cut Ruby reaches 52 in ruby.

Try it yourself: See the fire in the 3D Gemstone Simulator

Fewer flashes than a round

Scintillation 61 against 80 for the T73 Round Brilliant in ruby: 19 points lower

42 facets against 73, so the facet plan gives a lower score. The Peruzzi and the Old Mine have more facets, and both score 81.

Mazarin Cut · 42 facets · Scintillation 61

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: For a historic cushion with more sparkle, the Peruzzi Cut Ruby scores 81, but it returns less light.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Who a Mazarin ruby suits

Choose the Mazarin for a period piece in ruby where the historic cushion is the point. Of the three we measure, it keeps the most light, leaks the least and shows the most fire. Next to a modern round, it is still a dim stone.

For a cushion with modern light, choose the Cushion Cut Ruby. For a historic round with more light, the Old European Cut Ruby returns 78.

Mazarin Cut Ruby: questions

Is a Mazarin cut good for ruby?

Of the three historic cushions we measure in ruby, it returns the most light. Against a modern round it is dim: Brilliance 58 against 94.

Mazarin, Peruzzi or Old Mine cut ruby?

The Mazarin returns the most light: 58, against 46 for the Peruzzi and 50 for the Old Mine. It also leaks the least. The Peruzzi and Old Mine sparkle more.

What does a 6.5 mm Mazarin ruby weigh?

1.50 ct, measured from the model, or 1.32 ct cut in diamond.

Get the Mazarin Cut files

6 formatsMillimetersWatertight

Mazarin Cut 3D files

The Mazarin Cut as exact geometry: 42 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

Mazarin Cut cutting files

The Mazarin Cut as a faceting design: 34 + 8 girdles = 42 facets, 96 index, 4-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Save with a bundle: the Mazarin Cut 3D and cutting files are also in Historic Cuts Complete, 6 cuts for €29.99 until 1 December, then €39.99 (€101.88 as single files). Buy the bundle.

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
