Portuguese Bird's Nest Cut Ruby: as much scintillation as any cut we measure

Brilliance 69 · Fire 16 · Scintillation 98 · in our census, where the T73 scores 94 · 37 · 80 in ruby

177 facets in interlocking tiers. In ruby the Portuguese cut sparkles as finely as anything we measure, but it loses most of the fire that the diamond version shows.

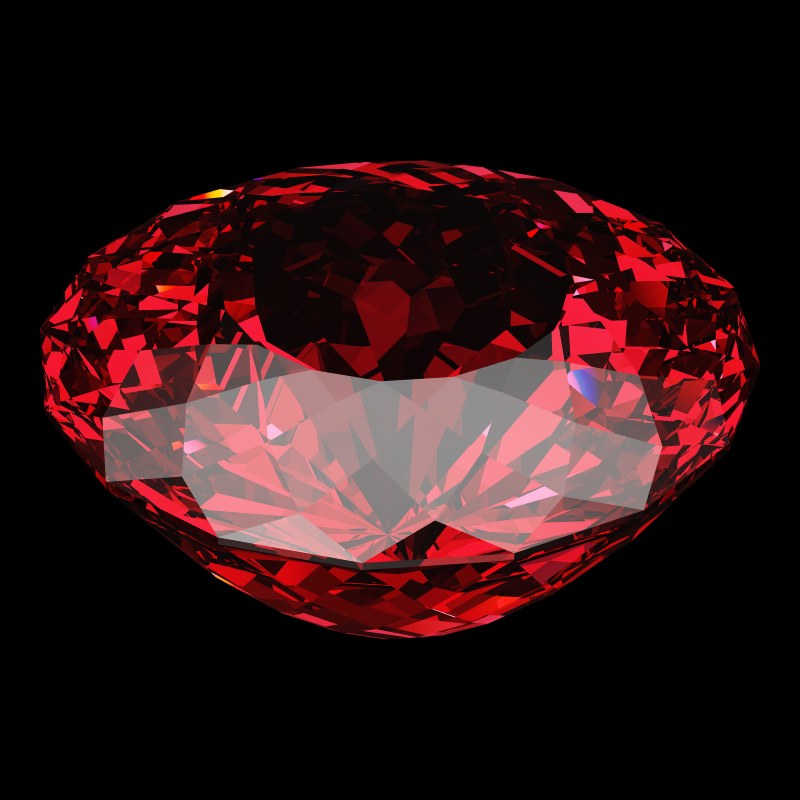

The Portuguese Bird's Nest Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Portuguese Bird's Nest Cut model, 1.00 ct, studio light.

Portuguese Bird's Nest Cut Ruby

The Portuguese cut is sixteen-fold, with five tiers on each side of the girdle. Each tier sits half a step offset from the one above it. Our model has 177 facets, a 48.9% table, a shallow 26.0° crown and a 38.0° pavilion.

So many facets give it a scintillation score level with DG-Miliano and DG-Vitruvio, the highest in our ruby census. Fire is a different matter: in ruby, only the Old Single scores less.

Is a Portuguese cut good for ruby? Pros and cons

Compared with the T73 Round Brilliant in ruby and with the Portuguese Bird's Nest Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Portuguese Bird's Nest Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Portuguese Bird's Nest Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−10Brilliance−25Fire−21Scintillation+18Spread0Symmetry0Shape-norm−27Tilt+25

Against the T73 Round Brilliant in ruby: ahead on 2, level on 2, behind on 4.

  • Global69, the comparison 79, difference −10
  • Brilliance69, the comparison 94, difference −25
  • Fire16, the comparison 37, difference −21
  • Scintillation98, the comparison 80, difference +18
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm75, the comparison 102, difference −27
  • Tilt100, the comparison 75, difference +25
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in a Portuguese cut

As much sparkle as any cut we measure in ruby

Scintillation 98 against 80 for the T73 Round Brilliant in ruby: 18 points higher

Our scintillation score follows the facet plan, and few plans are as busy as this one. The interlocking tiers break the face into many small, shifting reflections. The diamond version scores the same, because the score belongs to the design.

Portuguese Bird's Nest Cut · 177 facets · Scintillation 98

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

The catch with a Portuguese cut ruby

About a quarter of the diamond version's fire

Fire 16 against 65 for the Portuguese Bird's Nest Cut in diamond: 49 points lower

Small facets and a shallow 26.0° crown split little light into color. The low dispersion of ruby, 0.018 against 0.044 for diamond, reduces it further. Even the T73 in ruby shows more, 37.

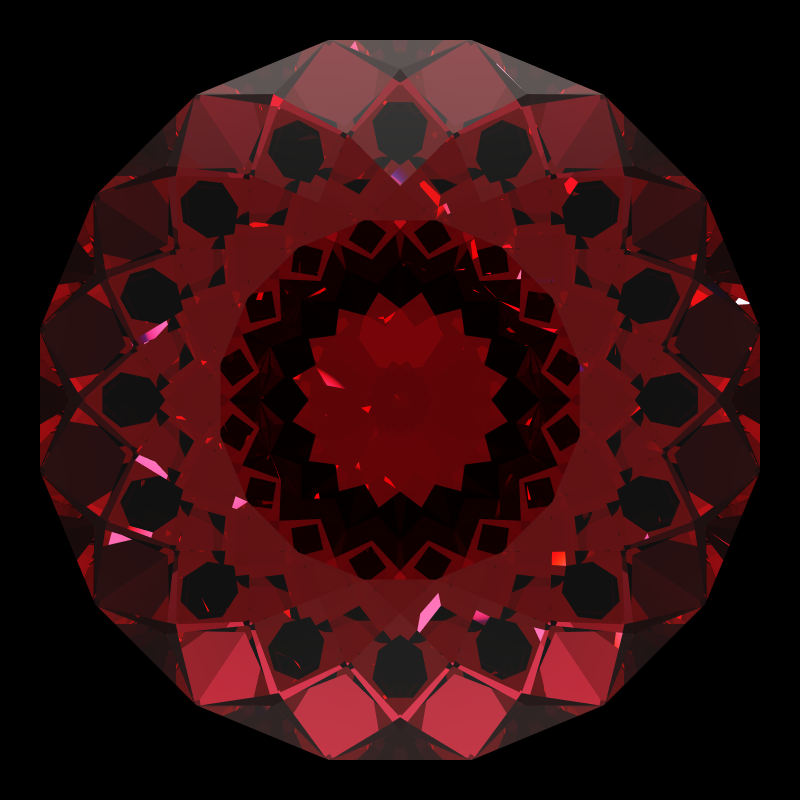

Portuguese bird's nest cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 16)

Portuguese Bird's Nest Cut in ruby · Fire 16

Portuguese bird's nest cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 65)

Portuguese Bird's Nest Cut in diamond · Fire 65

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: Of the ruby cuts close to the T73's light, DG-Anteros Ruby shows 43 and the Trilliant Cut Ruby 52.

Try it yourself: See the fire in the 3D Gemstone Simulator

Less light than a round ruby

Brilliance 69 against 94 for the T73 Round Brilliant in ruby: 25 points lower

The pavilion, at 38.0°, is above the 36.4° guide minimum for ruby, so this is not a window from shallow angles. The light escapes somewhere else in the tiers. Our census measures how much, not where.

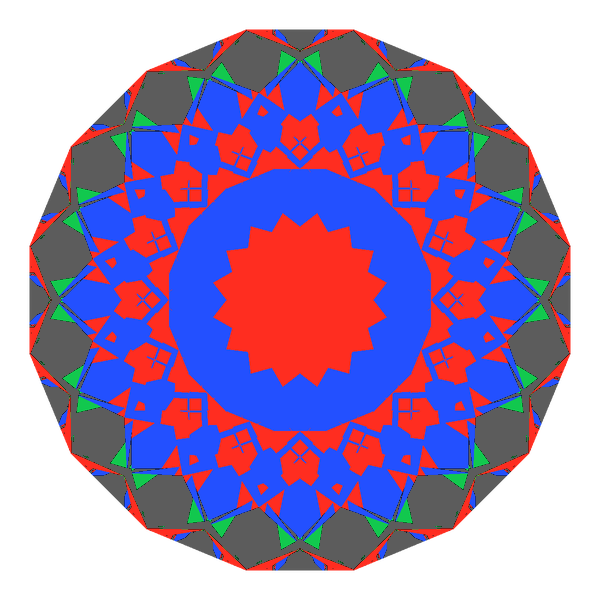

Portuguese bird's nest cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 69)

Portuguese Bird's Nest Cut in ruby · Brilliance 69

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: We have not measured a steeper Portuguese cut, and its 38.0° pavilion is already above the 36.4° guide minimum. For the same sparkle with more light, DG-Vitruvio Ruby scores 98 for scintillation and returns 94.

Try it yourself: Open this Light Return map in the simulator

Almost a third of the light escapes

Leakage 30 against 5 for the T73 Round Brilliant in ruby: 25 points higher

Through the pavilion of this design, the census loses 30% of the light. The T73 in ruby loses 5%, and the diamond Portuguese 13%.

Portuguese Bird's Nest Cut in ruby · Leakage 30

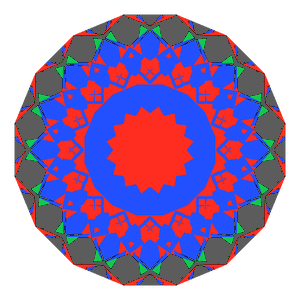

Portuguese bird's nest cut in ruby tilted 0 degrees: Light Return map, 22% of the face leaking0° · 22% leak

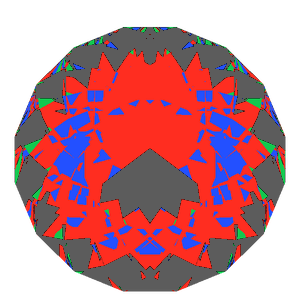

Portuguese bird's nest cut in ruby tilted 10 degrees: Light Return map, 34% of the face leaking10° · 34% leak

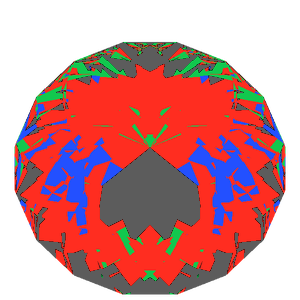

Portuguese bird's nest cut in ruby tilted 20 degrees: Light Return map, 23% of the face leaking20° · 23% leak

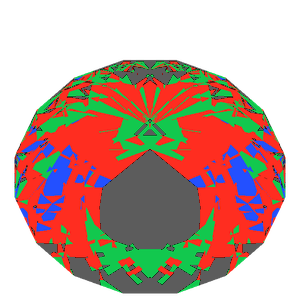

Portuguese bird's nest cut in ruby tilted 30 degrees: Light Return map, 23% of the face leaking30° · 23% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A smaller stone loses the same share. DG-Vitruvio Ruby leaks 6%, and DG-Miliano Ruby 10%.

Try it yourself: Tilt it yourself in the simulator's light map

Heavier than a diamond of the same size

1.27 ct at 6.5 mm, against 1.11 ct for the same cut in diamond (+14%)

The specific gravity of ruby is 4.00 against 3.52 for diamond. So a Portuguese ruby weighs 14% more at any width.

Ruby1.27 ctDiamond1.11 ct
A Portuguese Bird's Nest Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Choose by millimeters.

Try it yourself: Weights in every gemstone on the Portuguese Bird's Nest Cut page

Who a Portuguese cut ruby suits

The Portuguese cut suits a ruby where a busy, glittering face is the point. It also suits a cutter who wants a showpiece for the machine. In ruby it brings the sparkle, not the fire.

For the same scintillation with more light and less leakage, choose a house round. The house round DG-Vitruvio Ruby scores 98 at 94 brilliance, and DG-Miliano Ruby 98 at 90.

Portuguese Bird's Nest Cut Ruby: questions

Does a Portuguese cut ruby sparkle?

Yes: Scintillation 98 in our census. That is level with the best rounds we measure in ruby and above the T73's 80.

How many facets does a Portuguese cut have?

Our model has 177, on a sixteen-fold plan with five tiers above the girdle and five below.

Is a Portuguese cut good for ruby?

For sparkle, yes. For light and fire it trails: Brilliance 69 against 94, Fire 16 against 65 in diamond.

Portuguese cut or DG-Vitruvio for a ruby?

DG-Vitruvio returns more light (94 against 69) and leaks less (6% against 30%). The scintillation is the same, 98.

Get the Portuguese Bird's Nest Cut files

6 formatsMillimetersWatertight

Portuguese Bird's Nest Cut 3D files

The Portuguese Bird's Nest Cut as exact geometry: 177 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

Portuguese Bird's Nest Cut cutting files

The Portuguese Bird's Nest Cut as a faceting design: 161 + 16 girdles = 177 facets, 96 index, 16-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
