Hexagon Cut Ruby: six-sided geometry with modest light

Brilliance 64 · Fire 45 · Scintillation 56 · in our census, where the T73 scores 94 · 37 · 80 in ruby

A six-sided cut with a stepped crown. In ruby it holds its light when tilted, but it returns about a third less light than a round.

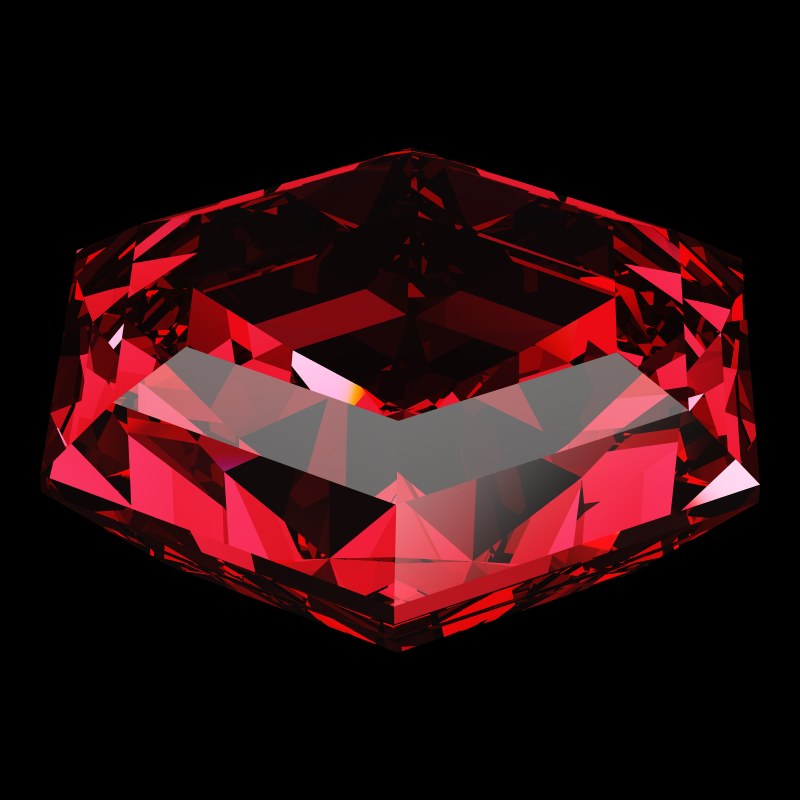

The Hexagon Cut in ruby, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Hexagon Cut model, 1.00 ct, studio light.

Hexagon Cut Ruby

Six sides, a crown cut in steps and a pavilion cut in tiers: that is the hexagon. Our model is 61.0% deep, with 37 facets and a 29.26° pavilion.

Its pavilion is well below the critical angle of ruby, 34.6°. In our census it trails on light, sparkle and leakage, and on fire against the diamond hexagon. It keeps its light well when tilted, but at this level of brilliance that does not count as a pro.

The octagon in our library has the same tier profile on eight sides, and in ruby it returns more light. We compare the two below.

Is a hexagon cut ruby a good idea? Pros and cons

Pros

None by our margins; its Tilt of 98 rests on modest light.

Compared with the T73 Round Brilliant in ruby and with the Hexagon Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Hexagon Cut in ruby (white) against the T73 Round Brilliant in ruby (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Hexagon Cut in ruby, against the T73 Round Brilliant in ruby as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−9Brilliance−30Fire+8Scintillation−24Spread0Symmetry0Shape-norm−17Tilt+23

Against the T73 Round Brilliant in ruby: ahead on 2, level on 2, behind on 4.

  • Global70, the comparison 79, difference −9
  • Brilliance64, the comparison 94, difference −30
  • Fire45, the comparison 37, difference +8
  • Scintillation56, the comparison 80, difference −24
  • Spread100, the comparison 100, difference 0
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm85, the comparison 102, difference −17
  • Tilt98, the comparison 75, difference +23
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What ruby gains in a hexagon cut

Fire beats the T73, 45 to 37, and brilliance beats the diamond hexagon, 64 to 58. But each score counts once, where its gap is larger, so the hexagon has no pro by our rules: both are cons. Tilt is 98 against 75 for the T73. But a stone that returns 64 keeps a large share of a smaller amount, so we do not count it. Symmetry is level, 100. The case for the hexagon is its outline: clean lines that fit together in clusters and bands.

Where the hexagon falls short in ruby

Barely half the fire of a diamond hexagon

Fire 45 against 85 for the Hexagon Cut in diamond: 40 points lower

The same facets score 85 for fire in diamond and 45 in ruby. Against the round ruby, the hexagon still wins, 45 to 37.

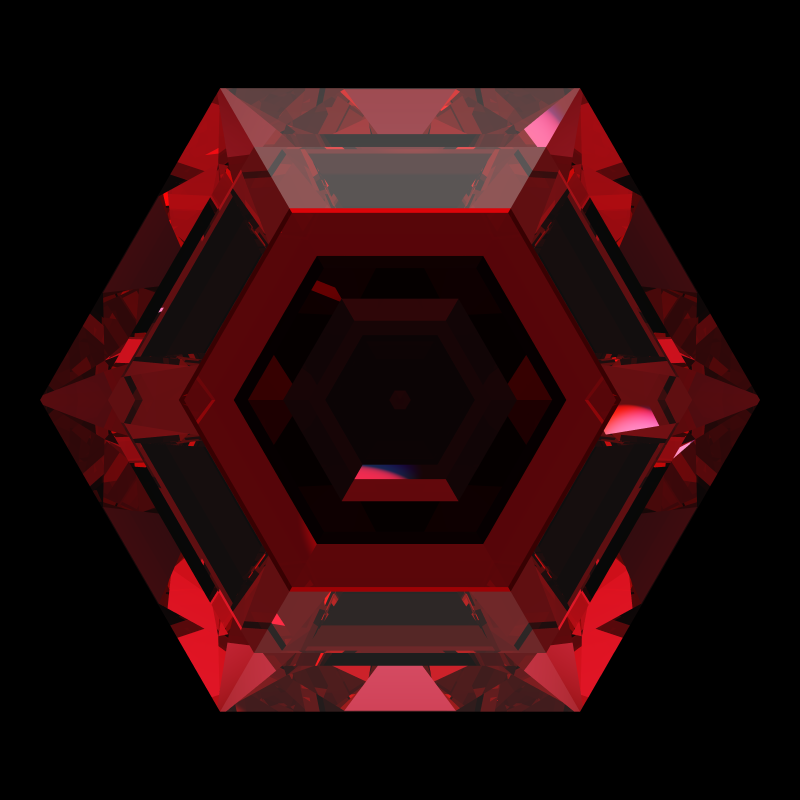

Hexagon cut in ruby face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 45)

Hexagon Cut in ruby · Fire 45

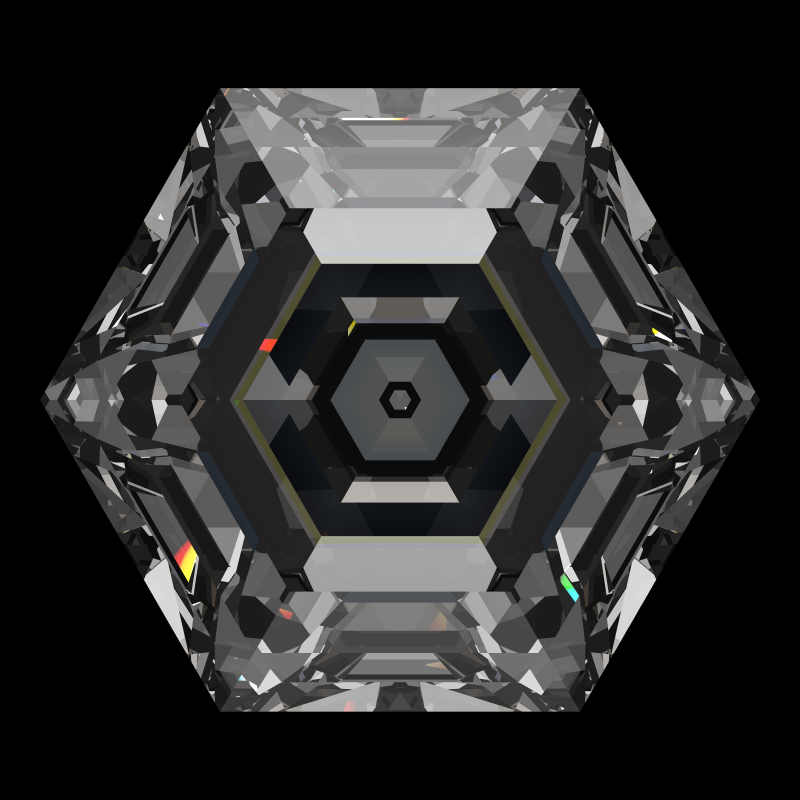

Hexagon cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 85)

Hexagon Cut in diamond · Fire 85

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

What helps: If fire matters, the Trilliant Cut Ruby is the strongest of the ruby cuts near the T73's light, at 52.

Try it yourself: See the fire in the 3D Gemstone Simulator

About a third less light than a round ruby

Brilliance 64 against 94 for the T73 Round Brilliant in ruby: 30 points lower

The pavilion is at 29.26°, below the critical angle of ruby. So light that drops straight through the table can leave through the pavilion. Against the hexagon in diamond, the ruby returns a little more, 64 against 58.

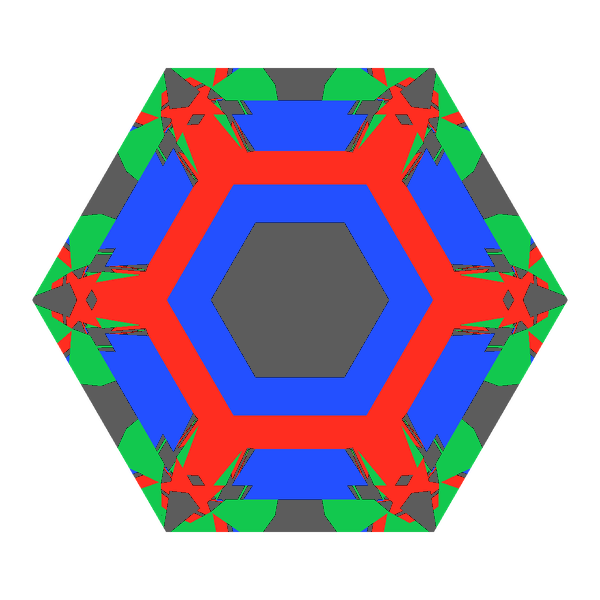

Hexagon cut in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 64)

Hexagon Cut in ruby · Brilliance 64

T73 round brilliant in ruby face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 94)

T73 Round Brilliant in ruby · Brilliance 94

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: The Octagon Cut Ruby has the same tier profile on eight sides and returns 78. We have not measured a hexagon with a steeper pavilion.

Try it yourself: Open this Light Return map in the simulator

Fewer flashes than a round

Scintillation 56 against 80 for the T73 Round Brilliant in ruby: 24 points lower

37 facets on six sides, against the T73's 73, and our scintillation score follows the facet plan.

Hexagon Cut · 37 facets · Scintillation 56

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: The Octagon Cut Ruby scores 66.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

About a quarter of the light leaks

Leakage 24 against 5 for the T73 Round Brilliant in ruby: 19 points higher

Close to a quarter of the light that enters, 24%, escapes through the pavilion, and the T73 loses 5%. In diamond the share is 24%, so the hexagon leaks as much in either stone.

Hexagon Cut in ruby · Leakage 24

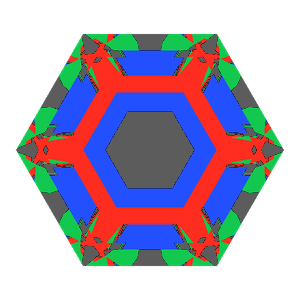

Hexagon cut in ruby tilted 0 degrees: Light Return map, 23% of the face leaking0° · 23% leak

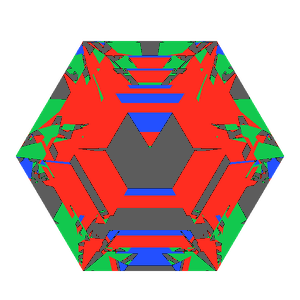

Hexagon cut in ruby tilted 10 degrees: Light Return map, 26% of the face leaking10° · 26% leak

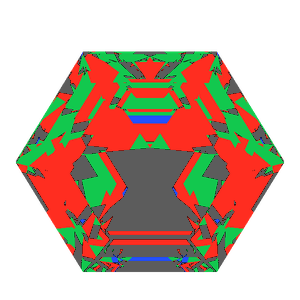

Hexagon cut in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak

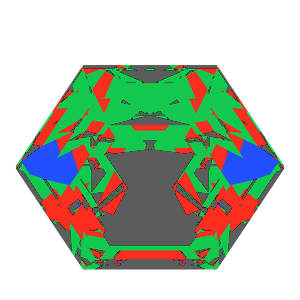

Hexagon cut in ruby tilted 30 degrees: Light Return map, 29% of the face leaking30° · 29% leak

T73 Round Brilliant in ruby · Leakage 5

T73 round brilliant in ruby tilted 0 degrees: Light Return map, 1% of the face leaking0° · 1% leak
T73 round brilliant in ruby tilted 10 degrees: Light Return map, 10% of the face leaking10° · 10% leak
T73 round brilliant in ruby tilted 20 degrees: Light Return map, 29% of the face leaking20° · 29% leak
T73 round brilliant in ruby tilted 30 degrees: Light Return map, 30% of the face leaking30° · 30% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A hexagon of any size leaks the same share. The Octagon Cut Ruby loses 20% and DG-M5 Ruby only 0%.

Try it yourself: Tilt it yourself in the simulator's light map

Who a hexagon ruby suits

The hexagon suits geometric designs, clusters and bands where six-sided stones fit together. It also suits a ruby seen from many angles. It keeps the light it has as it moves, but it has less light than most of our ruby cuts.

For the same geometric look with more light, choose the Octagon Cut Ruby. If light matters most, DG-M5 Ruby returns more than any other cut we measure in ruby.

Hexagon Cut Ruby: questions

Is a hexagon cut good for ruby?

It returns 64 for brilliance against the T73's 94 and leaks 24% of its light. But it keeps that light steady when tilted: Tilt 98.

Hexagon or octagon cut ruby?

The octagon returns more light (78 against 64) and leaks a little less. The hexagon has more fire: 45 against 33.

Does a hexagon ruby look smaller than a round?

Slightly, per carat. Measured from the model, its outline covers 96 against 100 for the T73.

What does a 6.5 mm hexagon ruby weigh?

1.46 ct in ruby at that width. A diamond hexagon weighs 1.29 ct.
