DG-Broken Hearts and Arrows Emerald: more sparkle than the T73 at the same light, and lighter in the hand than diamond
Brilliance 78 · Fire 39 · Scintillation 86 · in our census, where the T73 scores 78 · 39 · 80 in emerald
A cut designed specifically for diamond, carried into emerald. Its hearts do not form here, but its plan lifts Scintillation to 86, against 80 for the T73, at the same light. It is also the lighter stone: 0.78 ct at 6.5 mm, where the diamond version weighs 1.01 ct.

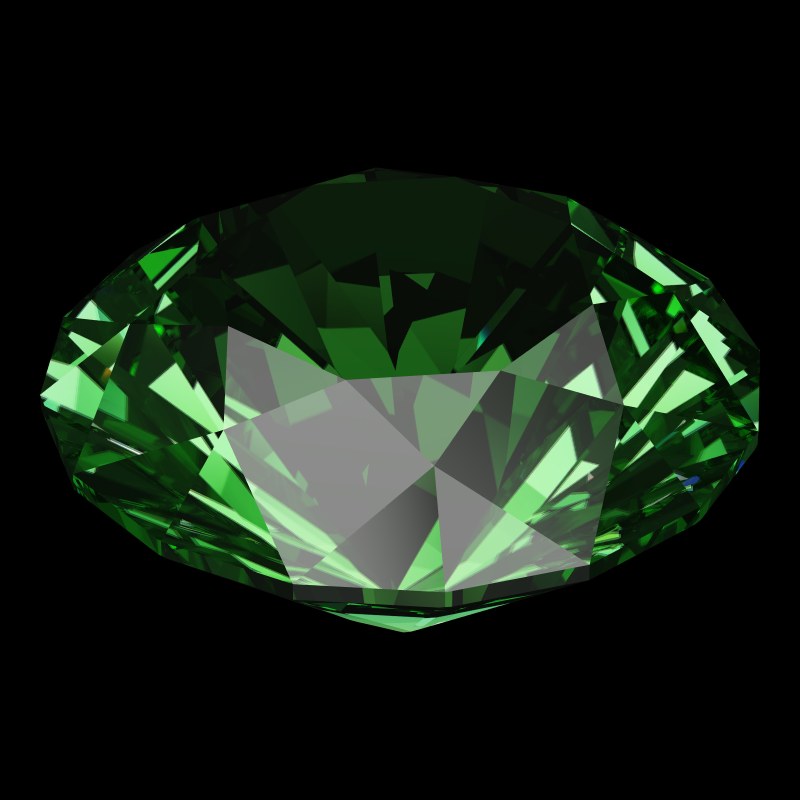

Rendered in our 3D Gemstone Simulator from the DG-Broken Hearts and Arrows model, 1.00 ct, studio light.
DG-Broken Hearts and Arrows Emerald
This is our T73 with sixteen narrow crack facets on the pavilion, in eight pairs. Each pair sits on the ridge where two lower girdle halves meet between the mains, one facet on each side of a heart's axis. They take the plan from 73 facets to 89. The T73's 53.0% table, 34.5° crown and 40.75° pavilion stay as they were. On a 6.5 mm emerald, each crack facet is at most about 0.07 mm wide and 0.003 mm deep.
In diamond, our simulated Hearts and Arrows viewer shows a tapered red crack in each heart. It runs from the notch about three quarters of the way to the point, and the arrows look like the T73's. In emerald, as in every other stone we model, the hearts do not form.
Emerald does show the change in the sparkle. Brilliance 78 against 78 and leakage 22% against 22% are the T73's. But Scintillation rises from 80 to 86. The cons below are the gaps to this cut in diamond.
Is DG-Broken Hearts and Arrows worth cutting in emerald? Pros and cons
Compared with the T73 Round Brilliant in emerald and with the DG-Broken Hearts and Arrows in diamond.
A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation,
Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within
5 points of the brilliance it is compared with. How we measure.
All eight scores against the T73
At a glance: the DG-Broken Hearts and Arrows in emerald (white) against the T73 Round Brilliant in emerald (dashed): solid white where
it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.
Against the T73 Round Brilliant in emerald: ahead on 2, level on 5, behind on 1.
Global73, the comparison 73, difference 0
Brilliance78, the comparison 78, difference 0
Fire39, the comparison 39, difference 0
Scintillation86, the comparison 80, difference +6
Spread100, the comparison 100, difference 0
Symmetry99, the comparison 100, difference −1
Shape-norm84, the comparison 84, difference 0
Tilt79, the comparison 77, difference +2
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.
0.78 ct at 6.5 mm, against 1.01 ct for the same cut in diamond (−23%)
Beryl's specific gravity is 2.72 and diamond's is 3.52. At 6.5 mm across, this cut weighs 0.78 ct in emerald and 1.01 ct in diamond. Per carat it faces up the same as the T73, 100 against 100.
A DG-Broken Hearts and Arrows 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.
Scintillation 86 against 80 for the T73 Round Brilliant in emerald: 6 points higher
Scintillation 86 against 80. Our score reads the facet plan and not the material, so the diamond version scores the same 86. A beryl keeps the gain in full.
DG-Broken Hearts and Arrows · 89 facets · Scintillation 86
Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.
Fire 39 against 78 for the DG-Broken Hearts and Arrows in diamond: 39 points lower
39 in emerald against 78 in diamond, and 39 for the T73 in emerald. Emerald's dispersion, 0.014, is under a third of diamond's 0.044, and small facets cannot make that up.

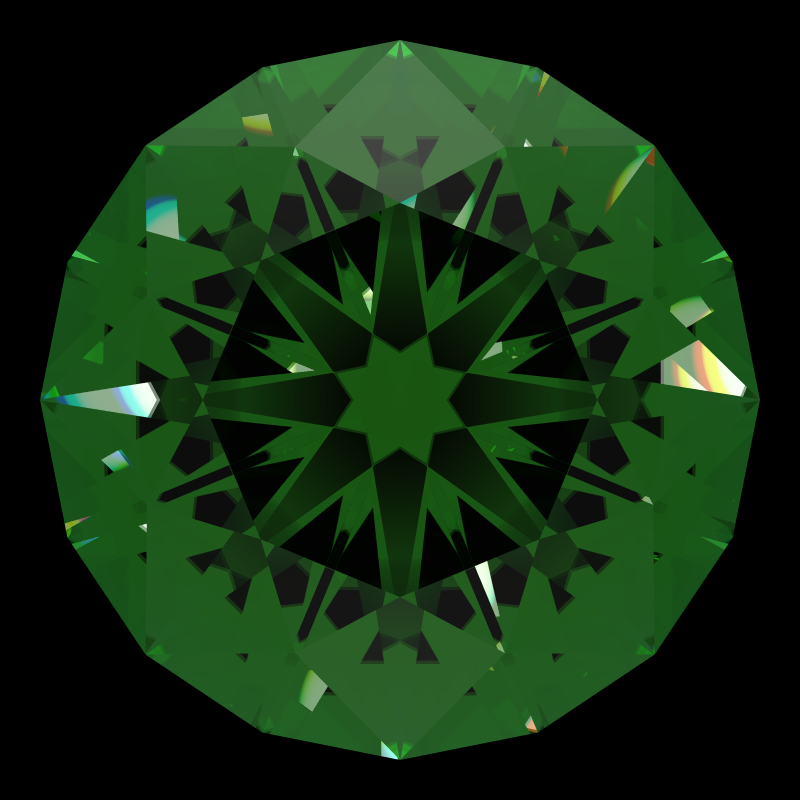

DG-Broken Hearts and Arrows in emerald · Fire 39

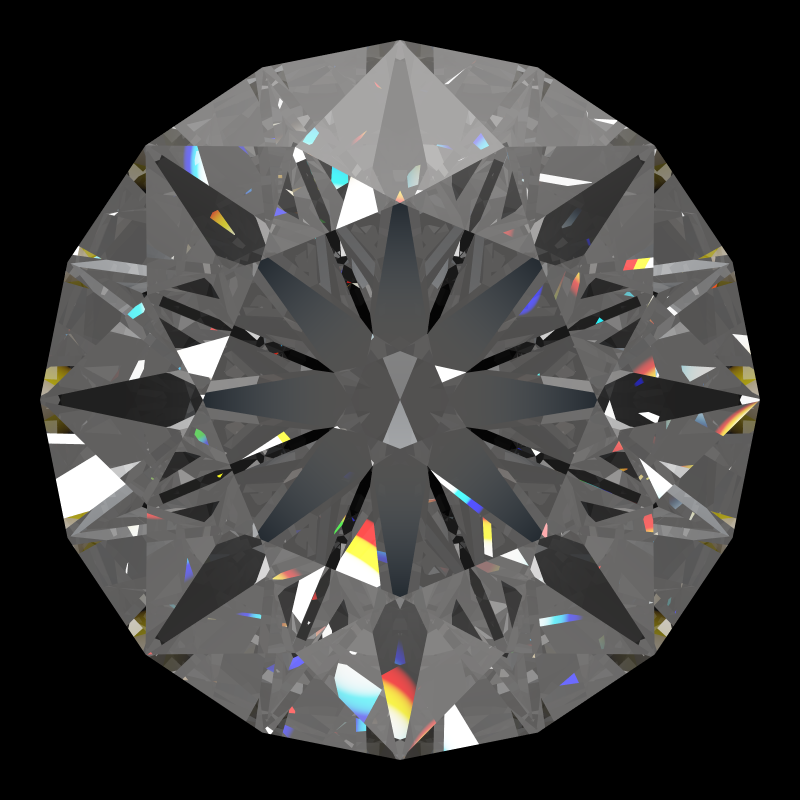

DG-Broken Hearts and Arrows in diamond · Fire 78
Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.
What helps: Mostly this is emerald itself. Of the rounds brighter than the T73 here, DG-Anteros Emerald has the most fire: 52.
A fifth of the light leaks, against almost none in diamond
Leakage 22 against 2 for the DG-Broken Hearts and Arrows in diamond: 20 points higher
Here 22% of the light in our census leaves through the pavilion, and in diamond 2%. The T73 in emerald loses the same 22%. The strip shows the emerald's gray rising from about a tenth head-on to about a third at 10° and 20°. It is a little more at 30°, and the diamond's gray stays at a seventh or under.

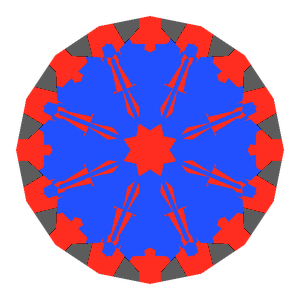

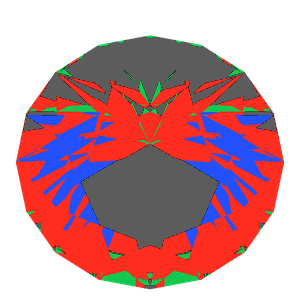

DG-Broken Hearts and Arrows in emerald · Leakage 22
0° · 11% leak

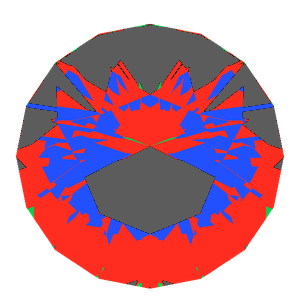

10° · 34% leak
20° · 33% leak

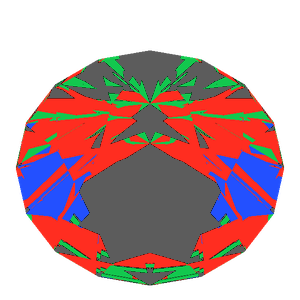

30° · 37% leak

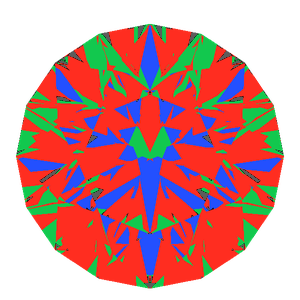

DG-Broken Hearts and Arrows in diamond · Leakage 2
0° · 3% leak
10° · 2% leak

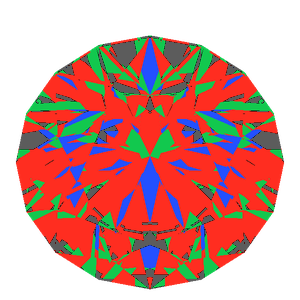

20° · 9% leak

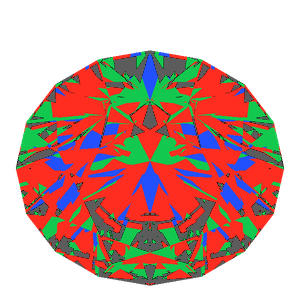

30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.
What helps: Steeper mains will not fix it: they sit at 40.75°, above the 39.4° guide minimum. In emerald, DG-M5 Emerald leaks 10%, the least we measure.
Brilliance 78 against 93 for the DG-Broken Hearts and Arrows in diamond: 15 points lower

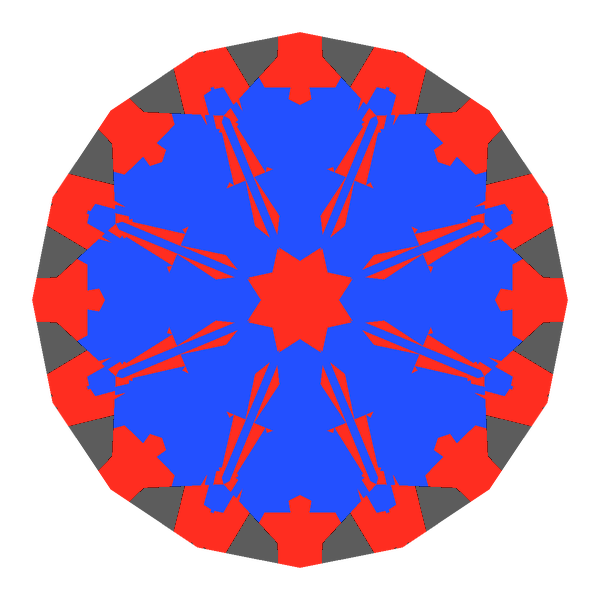

78 here against 93 for the diamond version, and level with the T73 in emerald. The emerald Light Return map has a ring of gray wedges at the rim. The diamond map shows only small gray notches there and a few specks inside.
DG-Broken Hearts and Arrows in emerald · Brilliance 78
DG-Broken Hearts and Arrows in diamond · Brilliance 93
Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.
Tilt 79 against 93 for the DG-Broken Hearts and Arrows in diamond: 14 points lower
Tilted 20°, it keeps 79 of its face-up light, and the diamond version keeps 93. In emerald it is a shade steadier than the T73, which keeps 77.
DG-Broken Hearts and Arrows in emerald · Tilt 79
0° · 11% leak
10° · 34% leak
20° · 33% leak
30° · 37% leak
DG-Broken Hearts and Arrows in diamond · Tilt 93
0° · 3% leak
10° · 2% leak
20° · 9% leak
30° · 14% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.
What helps: The square brilliant keeps 85 at 68 brilliance, the steadiest cut within 10 points of the T73's light here.
A diamond design first: in emerald the crack pattern does not form. The stone keeps the T73's light with livelier flashes, 86 against 80, for sixteen more facets to polish. It suits an emerald cut to match a diamond of the same design, or a faceter who wants the T73's light with a finer sparkle.
No: in our simulated viewer the red cracks appear only in diamond, where each heart forms. In emerald the hearts do not form at all.
DG-Broken Hearts and Arrows or the T73 for an emerald?
On light they match: Brilliance 78 against 78, leakage 22% against 22%. This cut sparkles more, Scintillation 86 against 80, and keeps a slightly larger share of its light when tipped, Tilt 79 against 77.
Is DG-Broken Hearts and Arrows a good cut for emerald?
A sound round, not a leading one: Brilliance 78, where DG-M5 returns 90.
What does a 6.5 mm DG-Broken Hearts and Arrows emerald weigh?
0.78 ct in our model; in diamond the same stone weighs 1.01 ct.
