Trilliant Cut Emerald: a straight-sided triangle, lighter in weight than diamond for its size

Brilliance 68 · Fire 41 · Scintillation 79 · in our census, where the T73 scores 78 · 39 · 80 in emerald

Straight sides and sharp corners: of the triangles we measure in emerald, the trilliant returns the most light and has the least regular pavilion.

The Trilliant Cut in emerald, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Trilliant Cut model, 1.00 ct, studio light.

Trilliant Cut Emerald

The trilliant is a three-sided brilliant with straight sides. Jewelers often set it in pairs, one on each side of a center stone. Our straight-sided model has 70 facets over a 39.0° pavilion, and it is 58.9% from table to culet.

In emerald it returns 68, under the T73's 78 and above the bowed Trillion Cut Emerald. The pavilion sits a fraction under emerald's 39.4° guide minimum, and 31% of the light leaks. We have no measurement of a steeper trilliant, so we cannot say whether a degree more will change that.

Its fire, 41, is about the T73's in emerald. Against its own diamond version, it falls behind on light (68 against 78), fire, leakage and tilt. Its pavilion layout also costs it on symmetry, in any stone.

Trilliant emerald: how good is it? Pros and cons

Compared with the T73 Round Brilliant in emerald and with the Trilliant Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Trilliant Cut in emerald (white) against the T73 Round Brilliant in emerald (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Trilliant Cut in emerald, against the T73 Round Brilliant in emerald as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−9Brilliance−10Fire+2Scintillation−1Spread+1Symmetry−38Shape-norm−5Tilt−5

Against the T73 Round Brilliant in emerald: ahead on 2, behind on 6.

  • Global64, the comparison 73, difference −9
  • Brilliance68, the comparison 78, difference −10
  • Fire41, the comparison 39, difference +2
  • Scintillation79, the comparison 80, difference −1
  • Spread101, the comparison 100, difference +1
  • Symmetry62, the comparison 100, difference −38
  • Shape-norm79, the comparison 84, difference −5
  • Tilt72, the comparison 77, difference −5
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What emerald gains in a trilliant cut

Lighter than a diamond trilliant

0.74 ct at 6.5 mm, against 0.96 ct for the same cut in diamond (−23%)

Used in pairs beside a center stone, trilliants add their weight twice. In emerald each 6.5 mm stone weighs 0.74 ct, against 0.96 ct in diamond.

Emerald0.74 ctDiamond0.96 ct
A Trilliant Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the Trilliant Cut page

The catch with a trilliant emerald

Half the fire of the diamond version

Fire 41 against 83 for the Trilliant Cut in diamond: 42 points lower

41 against 83. The stone is the cause, not the shape. Against the T73 in emerald, the trilliant is about level, 39. Emerald's dispersion is 0.014 against diamond's 0.044.

Trilliant cut in emerald face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 41)

Trilliant Cut in emerald · Fire 41

Trilliant cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 83)

Trilliant Cut in diamond · Fire 83

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

An irregular pavilion

Symmetry 62 against 100 for the T73 Round Brilliant in emerald: 38 points lower

Its pavilion facets repeat less evenly than a round's. Our symmetry score, 62 in any stone, is the second lowest we measure in emerald, after the baguette's. The straight-sided Triangle Cut Emerald scores 100, so the cause is this facet layout, not the outline.

Trilliant Cut · 70 facets · Symmetry 62

T73 Round Brilliant · 73 facets · Symmetry 100

Symmetry scores how regular the pavilion facets are within the design. Compare how evenly the facets repeat around each pavilion. Drawn from each cut's own model.

What helps: This is the design, not the cutting. The Trillion Cut Emerald keeps a fully regular pavilion at 100.

Try it yourself: Compare the Symmetry spoke in the Cut Performance Wheel

Nearly three times the diamond version's leakage

Leakage 31 against 11 for the Trilliant Cut in diamond: 20 points higher

31% against 11% in diamond, and 22% for the T73 in emerald.

Trilliant Cut in emerald · Leakage 31

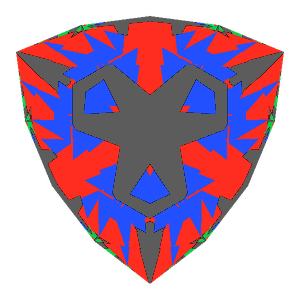

Trilliant cut in emerald tilted 0 degrees: Light Return map, 34% of the face leaking0° · 34% leak

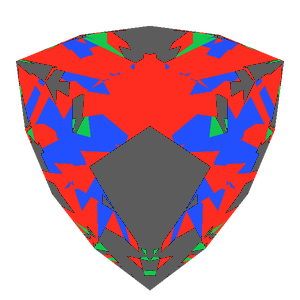

Trilliant cut in emerald tilted 10 degrees: Light Return map, 33% of the face leaking10° · 33% leak

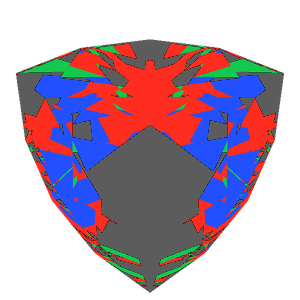

Trilliant cut in emerald tilted 20 degrees: Light Return map, 39% of the face leaking20° · 39% leak

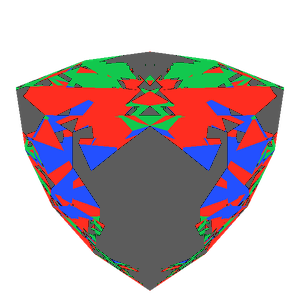

Trilliant cut in emerald tilted 30 degrees: Light Return map, 42% of the face leaking30° · 42% leak

Trilliant Cut in diamond · Leakage 11

Trilliant cut in diamond tilted 0 degrees: Light Return map, 12% of the face leaking0° · 12% leak
Trilliant cut in diamond tilted 10 degrees: Light Return map, 16% of the face leaking10° · 16% leak
Trilliant cut in diamond tilted 20 degrees: Light Return map, 20% of the face leaking20° · 20% leak
Trilliant cut in diamond tilted 30 degrees: Light Return map, 24% of the face leaking30° · 24% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: We have not measured a steeper trilliant, so we cannot say whether one will leak less. Among triangles, the Trillion Cut Emerald leaks 27%.

Try it yourself: Tilt it yourself in the simulator's light map

Holds less light when tipped than in diamond

Tilt 72 against 89 for the Trilliant Cut in diamond: 17 points lower

At 20° it keeps 72 of the face-up light, against 89 for the diamond trilliant and 77 for the T73 in emerald.

Trilliant Cut in emerald · Tilt 72

Trilliant cut in emerald tilted 0 degrees: Light Return map, 34% of the face leaking0° · 34% leak
Trilliant cut in emerald tilted 10 degrees: Light Return map, 33% of the face leaking10° · 33% leak
Trilliant cut in emerald tilted 20 degrees: Light Return map, 39% of the face leaking20° · 39% leak
Trilliant cut in emerald tilted 30 degrees: Light Return map, 42% of the face leaking30° · 42% leak

Trilliant Cut in diamond · Tilt 89

Trilliant cut in diamond tilted 0 degrees: Light Return map, 12% of the face leaking0° · 12% leak
Trilliant cut in diamond tilted 10 degrees: Light Return map, 16% of the face leaking10° · 16% leak
Trilliant cut in diamond tilted 20 degrees: Light Return map, 20% of the face leaking20° · 20% leak
Trilliant cut in diamond tilted 30 degrees: Light Return map, 24% of the face leaking30° · 24% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: For a steadier stone that keeps its light, choose the square brilliant: Tilt 85, Brilliance 68.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a trilliant emerald suits

The trilliant suits emerald side stones and bold, graphic designs, in a setting that protects its sharp corners. Of the triangles in emerald, it returns the most light.

For a fully regular triangle, choose the Trillion Cut Emerald. For a stone that holds its light when tipped, choose the square brilliant. For a center stone with more light, choose DG-M5 Emerald.

Trilliant Cut Emerald: questions

Is a trilliant cut good for emerald?

As a side stone it is reasonable: Brilliance 68 against 78 for the T73, with 31% leakage.

Trilliant or trillion for emerald?

The trilliant returns a few points more light (68 against 63). The trillion is steadier tilted (86 against 72) and fully regular.

Do trilliant emeralds chip?

Emerald is 7.5 to 8 on the Mohs scale and can be brittle, and a trilliant has three sharp corners. Protect them in the setting.

Get the Trilliant Cut files

6 formatsMillimetersWatertight

Trilliant Cut 3D files

The Trilliant Cut as exact geometry: 72 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad96 index

Trilliant Cut cutting files

The Trilliant Cut as a faceting design: 58 + 12 girdles = 70 facets, 96 index, 3-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 96 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
