Old European Cut Emerald: a small-table round, lighter in the hand than diamond

Brilliance 64 · Fire 42 · Scintillation 81 · in our census, where the T73 scores 78 · 39 · 80 in emerald

A round with a small 45.0% table. In diamond it returns 90 for light. In emerald it returns 64 to the T73's 78.

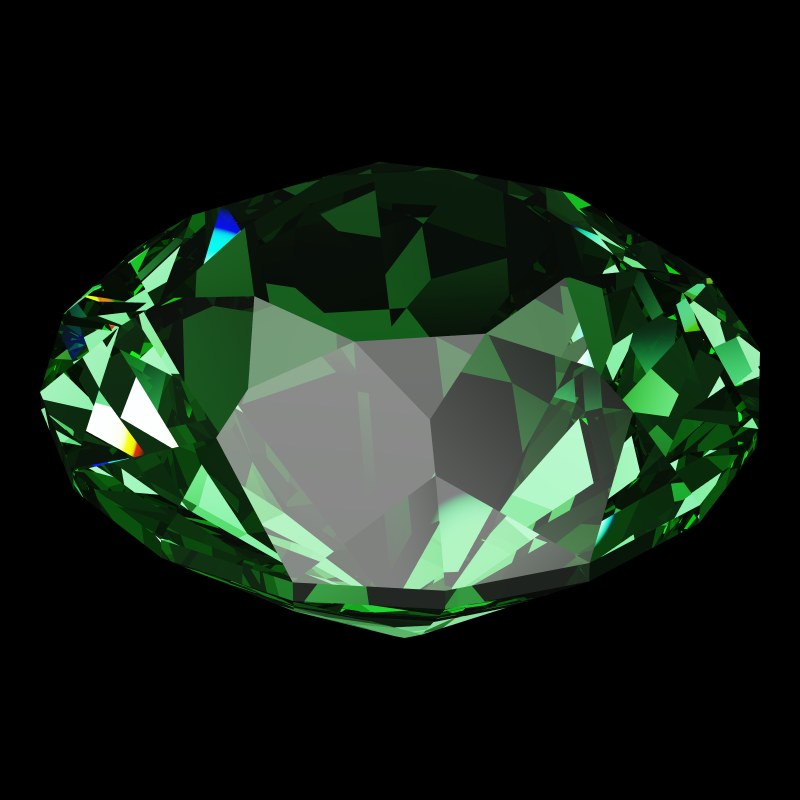

The Old European Cut in emerald, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Old European Cut model, 1.00 ct, studio light.

Old European Cut Emerald

The Old European put the old mine cut's facets on a circular outline. Our model has 74 facets, a small 45.0% table, a 35.0° crown and a 41.5° pavilion, and it is 64.7% deep.

Its pavilion is above emerald's 39.4° guide minimum, but over a third of the light leaks in our census. Tilted, it keeps 96 of its face-up light. Yet its Brilliance, 64 against 78, is more than 5 points below the T73's. We count Tilt as a pro only for a stone within 5 points of the baseline it beats.

Its 74 facets keep the sparkle of a modern round: scintillation 81 against 80.

Is an Old European cut a good choice for emerald? Pros and cons

Compared with the T73 Round Brilliant in emerald and with the Old European Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Old European Cut in emerald (white) against the T73 Round Brilliant in emerald (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Old European Cut in emerald, against the T73 Round Brilliant in emerald as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−3Brilliance−14Fire+3Scintillation+1Spread−2Symmetry0Shape-norm+16Tilt+19

Against the T73 Round Brilliant in emerald: ahead on 4, level on 1, behind on 3.

  • Global70, the comparison 73, difference −3
  • Brilliance64, the comparison 78, difference −14
  • Fire42, the comparison 39, difference +3
  • Scintillation81, the comparison 80, difference +1
  • Spread98, the comparison 100, difference −2
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm100, the comparison 84, difference +16
  • Tilt96, the comparison 77, difference +19
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What emerald gains in an Old European cut

Lighter than a diamond Old European

0.84 ct at 6.5 mm, against 1.09 ct for the same cut in diamond (−23%)

Deep stones carry weight, and at 64.7% this is a deep one. In emerald a 6.5 mm Old European weighs 0.84 ct, against 1.09 ct in diamond.

Emerald0.84 ctDiamond1.09 ct
A Old European Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the Old European Cut page

Where the Old European falls short in emerald

Far less fire than in diamond

Fire 42 against 74 for the Old European Cut in diamond: 32 points lower

The tall crown that gives the diamond version 74 for fire has little to work with in emerald: 42.

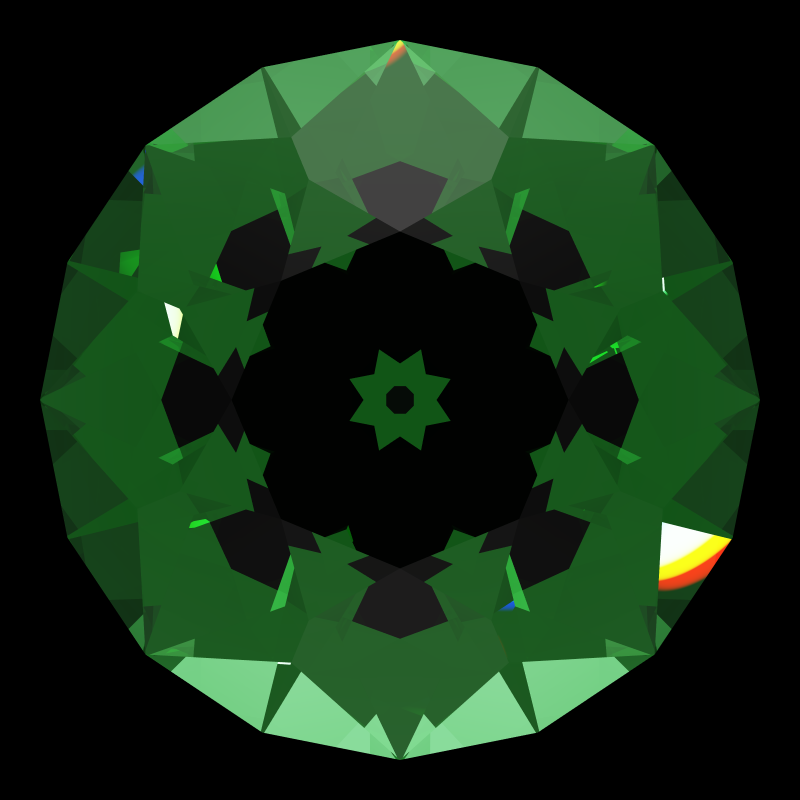

Old european cut in emerald face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 42)

Old European Cut in emerald · Fire 42

Old european cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 74)

Old European Cut in diamond · Fire 74

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Over a third of the light leaks

Leakage 36 against 5 for the Old European Cut in diamond: 31 points higher

36% in our census, about seven times the diamond version's 5%, from the same facets.

Old European Cut in emerald · Leakage 36

Old european cut in emerald tilted 0 degrees: Light Return map, 33% of the face leaking0° · 33% leak

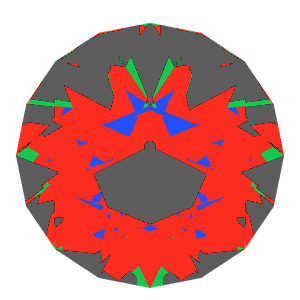

Old european cut in emerald tilted 10 degrees: Light Return map, 40% of the face leaking10° · 40% leak
Old european cut in emerald tilted 20 degrees: Light Return map, 36% of the face leaking20° · 36% leak

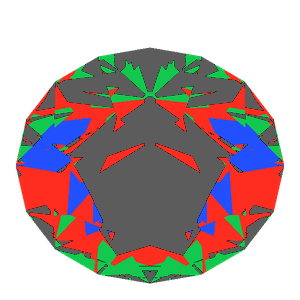

Old european cut in emerald tilted 30 degrees: Light Return map, 48% of the face leaking30° · 48% leak

Old European Cut in diamond · Leakage 5

Old european cut in diamond tilted 0 degrees: Light Return map, 3% of the face leaking0° · 3% leak
Old european cut in diamond tilted 10 degrees: Light Return map, 7% of the face leaking10° · 7% leak
Old european cut in diamond tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak
Old european cut in diamond tilted 30 degrees: Light Return map, 17% of the face leaking30° · 17% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A steeper pavilion will not help here: at 41.5° it already clears emerald's 39.4° guide minimum. DG-Anteros Emerald leaks 14% in emerald.

Try it yourself: Tilt it yourself in the simulator's light map

Under three-quarters of the diamond version's light

Brilliance 64 against 90 for the Old European Cut in diamond: 26 points lower

64 against 90. The T73 in emerald returns 78, so the cut's proportions cost light here as well as the stone does.

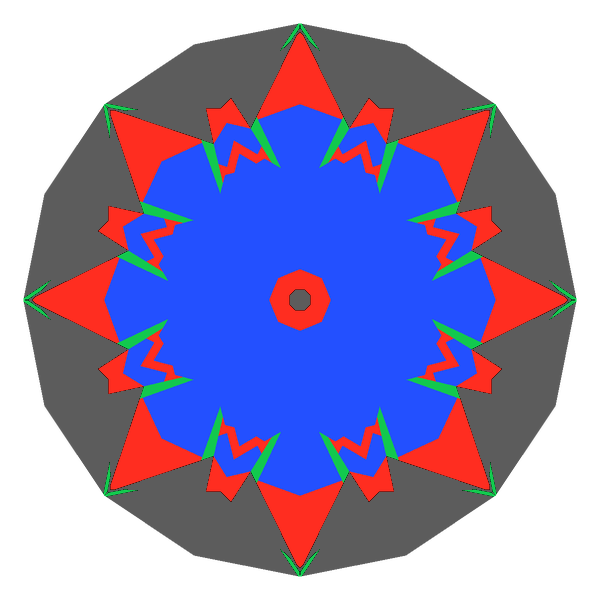

Old european cut in emerald face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 64)

Old European Cut in emerald · Brilliance 64

Old european cut in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 90)

Old European Cut in diamond · Brilliance 90

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For a round emerald with more light, the T73 Round Brilliant Emerald returns 78 and DG-M5 Emerald 90.

Try it yourself: Open this Light Return map in the simulator

A smaller face than the T73 for its weight

Face-up size 95 against 100 for the T73 Round Brilliant in emerald (T73 = 100): 5% less face-up area for the same weight

From above, the two are the same circle, and the difference is height. The Old European's small table sits on a tall 35.0° crown. The whole stone stands 64.7% deep to the T73's 61.7%, so more of each carat is stacked up and less is spread out. At 1.00 ct, drawn to one scale in the picture, its circle is the smaller.

Old European Cut · 6.88 mm at 1.00 ct · Face-up size 95

T73 Round Brilliant · 7.06 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in emerald and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

What helps: The T57 Round Brilliant Emerald faces up at 107 for its weight, the most of any round we measure in emerald. If it must be an Old European, choose it by millimeters: 6.5 mm across is 0.84 ct.

Try it yourself: See its size at 1.00 ct in emerald in the 3D Gemstone Simulator

Who an Old European emerald suits

Choose it for a period-style emerald ring where the antique outline matters more than light. Of the two rounds on our emerald pages older than the 1919 plan, it is the stronger by far. The Old Single returns 17. Its tall crown and small table give it the period face. The census does not score that face, only what it costs in light.

For a round that returns more light, choose DG-M5 Emerald or the T73 Round Brilliant Emerald. For the 1919 plan without a faceted girdle, choose the T57 Round Brilliant Emerald, at 78.

Old European Cut Emerald: questions

Is an Old European cut good for emerald?

It trails a modern round: Brilliance 64 against 78 for the T73 in emerald, with 36% of the light leaking.

Does an Old European emerald hold its light when tilted?

It keeps 96 of its own face-up light at 20°, more than the T73 (77). But it starts from less: Brilliance 64.

Old European or Old Single cut for emerald?

The Old European, by a wide margin: Brilliance 64 against 17, leakage 36% against 75%.

Does an Old European emerald look smaller than a modern round?

Carat for carat, slightly: its face-up size is 95 against 100 for the T73. Matched by width instead, the two circles are the same size, and the Old European is the heavier stone.
