T57 Round Brilliant Emerald: the T73's light in this stone, and more face for its weight

Brilliance 78 · Fire 40 · Scintillation 72 · in our census, where the T73 scores 78 · 39 · 80 in emerald

The knife-edge round with 57 facets and no girdle band. In emerald it returns exactly the T73's light, Brilliance 78, and faces up larger for its weight, 107 against 100.

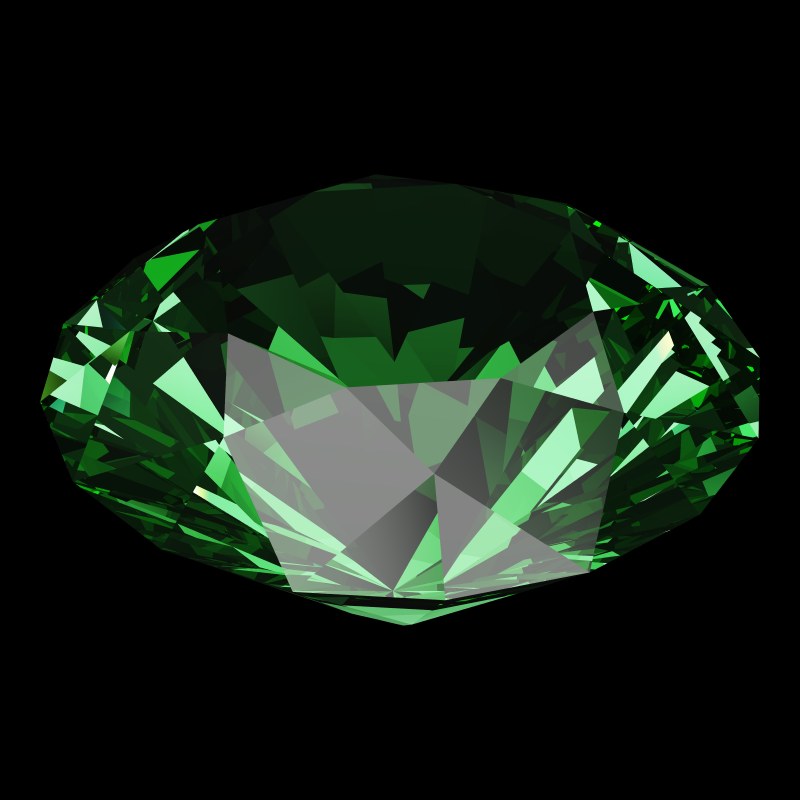

The T57 Round Brilliant in emerald, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the T57 Round Brilliant model, 1.00 ct, studio light.

T57 Round Brilliant Emerald

The T57 is the plain round brilliant. It has a table, 8 stars, 8 bezels, 16 upper halves, 8 pavilion mains and 16 lower halves, which meet at a knife-edge girdle. The mains have an angle of 40.75°. With no girdle band, the stone stands just 59.2% from table to point.

We keep it on the site for teaching, comparison and period work. In emerald it earns its place in the comparison: Brilliance 78 and 22% leakage, both the same as the T73. Every con below is the gap to the same T57 in diamond.

So the T57 is a clean test of what emerald itself does to a round. The proportions were set for diamond. Emerald has a refractive index near 1.58 and a dispersion of 0.014. In emerald, the proportions lose about a sixth of their light and half their fire. The losses are the stone's, not the plan's.

How does emerald do in a T57 cut? Pros and cons

Compared with the T73 Round Brilliant in emerald and with the T57 Round Brilliant in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the T57 Round Brilliant in emerald (white) against the T73 Round Brilliant in emerald (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: T57 Round Brilliant in emerald, against the T73 Round Brilliant in emerald as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−1Brilliance0Fire+1Scintillation−8Spread+1Symmetry0Shape-norm0Tilt−1

Against the T73 Round Brilliant in emerald: ahead on 2, level on 3, behind on 3.

  • Global72, the comparison 73, difference −1
  • Brilliance78, the comparison 78, difference 0
  • Fire40, the comparison 39, difference +1
  • Scintillation72, the comparison 80, difference −8
  • Spread101, the comparison 100, difference +1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm84, the comparison 84, difference 0
  • Tilt76, the comparison 77, difference −1
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What emerald gains in a T57

Lighter than a diamond T57

0.71 ct at 6.5 mm, against 0.92 ct for the same cut in diamond (−23%)

The T57 is a knife-edge stone 59.2% deep. At 6.5 mm it weighs 0.71 ct in emerald. The same size in diamond weighs 0.92 ct.

Emerald0.71 ctDiamond0.92 ct
A T57 Round Brilliant 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the T57 Round Brilliant page

The most face per carat of our emerald rounds

Face-up size 107 against 100 for the T73 Round Brilliant in emerald (T73 = 100): 7% more face-up area for the same weight

Take the girdle band off the T73, and the T57 remains. It has the same angles and the same circle, but it is 59.2% deep where the T73 is 61.7%. A shallower stone under an identical outline holds less weight, so a carat of T57 is cut wider. None of the rounds on our emerald pages faces up larger for its weight. The picture sets a 1.00 ct T57 beside a 1.00 ct T73, to one scale.

T57 Round Brilliant · 7.29 mm at 1.00 ct · Face-up size 107

T73 Round Brilliant · 7.06 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in emerald and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

Try it yourself: See its size at 1.00 ct in emerald in the 3D Gemstone Simulator

Where the T57 falls short in emerald

About half the diamond version's fire

Fire 40 against 79 for the T57 Round Brilliant in diamond: 39 points lower

Fire is 40 against 79. Emerald's dispersion, 0.014, is under a third of diamond's. The cut cannot add color that the stone does not split.

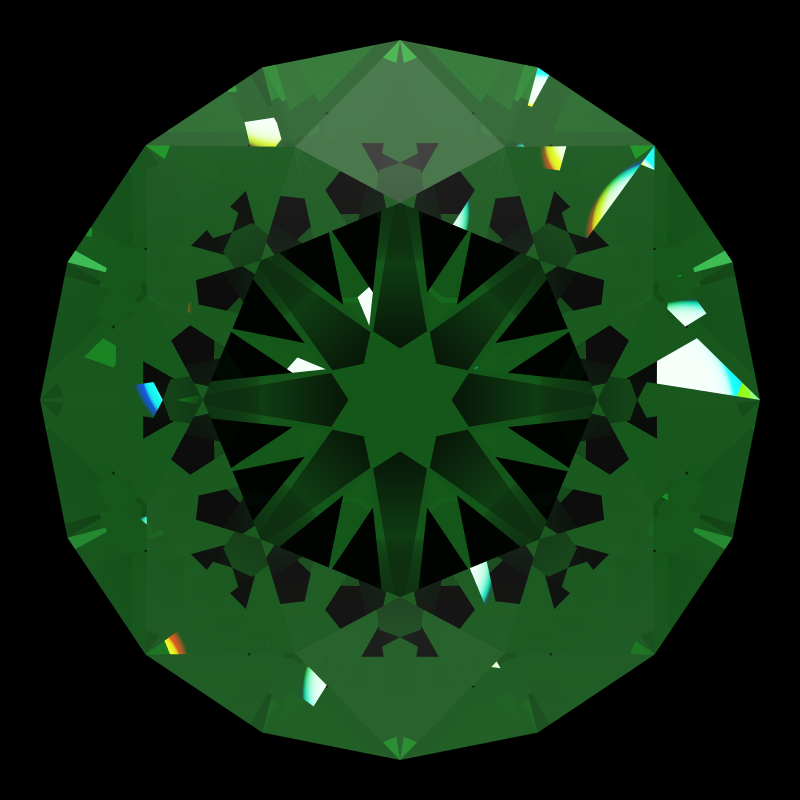

T57 round brilliant in emerald face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 40)

T57 Round Brilliant in emerald · Fire 40

T57 round brilliant in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 79)

T57 Round Brilliant in diamond · Fire 79

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

A fifth of the light leaks

Leakage 22 against 2 for the T57 Round Brilliant in diamond: 20 points higher

In our census the stone loses 22% through the pavilion. Diamond in the same T57 loses 2%. At 39.4°, emerald's critical angle is far wider than diamond's 24.4°.

T57 Round Brilliant in emerald · Leakage 22

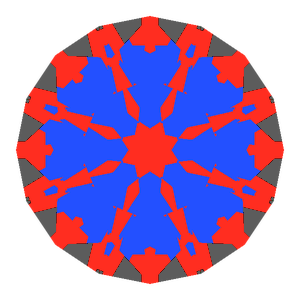

T57 round brilliant in emerald tilted 0 degrees: Light Return map, 11% of the face leaking0° · 11% leak

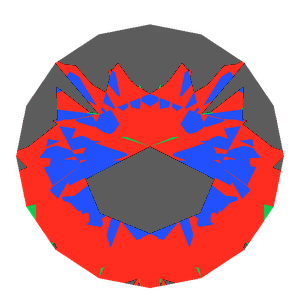

T57 round brilliant in emerald tilted 10 degrees: Light Return map, 35% of the face leaking10° · 35% leak

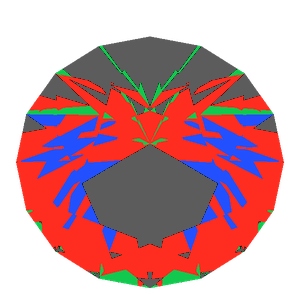

T57 round brilliant in emerald tilted 20 degrees: Light Return map, 33% of the face leaking20° · 33% leak

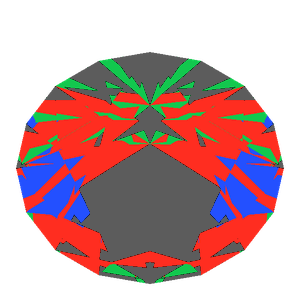

T57 round brilliant in emerald tilted 30 degrees: Light Return map, 38% of the face leaking30° · 38% leak

T57 Round Brilliant in diamond · Leakage 2

T57 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T57 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T57 round brilliant in diamond tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak
T57 round brilliant in diamond tilted 30 degrees: Light Return map, 16% of the face leaking30° · 16% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: Size changes nothing: a larger or smaller T57 leaks the same share. DG-Anteros Emerald, on the T73's plan with new angles, leaks 14%.

Try it yourself: Tilt it yourself in the simulator's light map

Less light than in diamond

Brilliance 78 against 92 for the T57 Round Brilliant in diamond: 14 points lower

Brilliance 78 against 92: well under the diamond version, and level with the T73 in emerald, so the girdle band changes nothing about light.

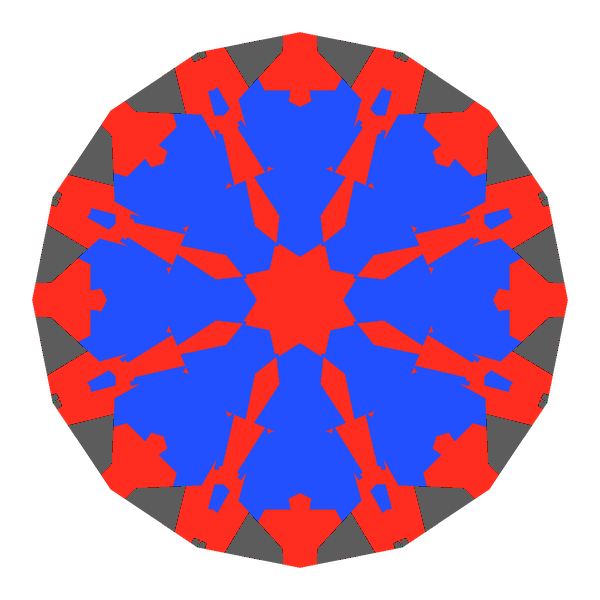

T57 round brilliant in emerald face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 78)

T57 Round Brilliant in emerald · Brilliance 78

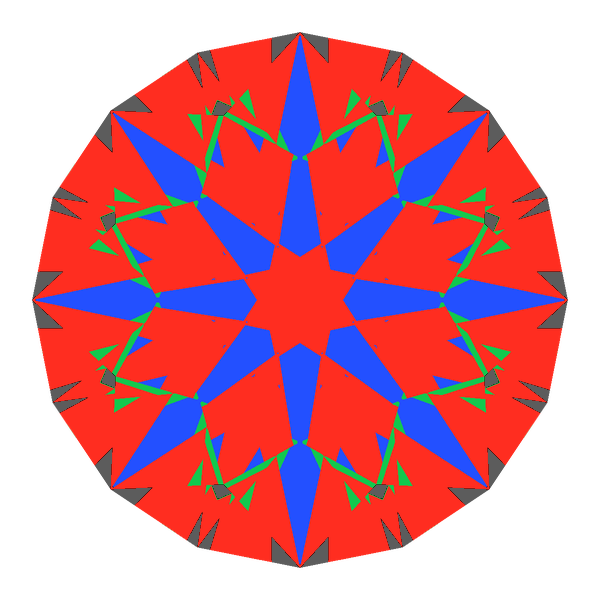

T57 round brilliant in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 92)

T57 Round Brilliant in diamond · Brilliance 92

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: Our twelve-fold DG-M5 Emerald returns 90 in emerald.

Try it yourself: Open this Light Return map in the simulator

Holds less light tilted than in diamond

Tilt 76 against 90 for the T57 Round Brilliant in diamond: 14 points lower

At 20° it keeps 76 of the face-up light, against 90 for a diamond T57.

T57 Round Brilliant in emerald · Tilt 76

T57 round brilliant in emerald tilted 0 degrees: Light Return map, 11% of the face leaking0° · 11% leak
T57 round brilliant in emerald tilted 10 degrees: Light Return map, 35% of the face leaking10° · 35% leak
T57 round brilliant in emerald tilted 20 degrees: Light Return map, 33% of the face leaking20° · 33% leak
T57 round brilliant in emerald tilted 30 degrees: Light Return map, 38% of the face leaking30° · 38% leak

T57 Round Brilliant in diamond · Tilt 90

T57 round brilliant in diamond tilted 0 degrees: Light Return map, 4% of the face leaking0° · 4% leak
T57 round brilliant in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
T57 round brilliant in diamond tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak
T57 round brilliant in diamond tilted 30 degrees: Light Return map, 16% of the face leaking30° · 16% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a T57 emerald suits

The T57 suits period work and anyone who studies how the round brilliant developed. In emerald it gives up nothing in light to the T73. It gives up only sparkle (72 against 80) and the faceted girdle, and it gains a little face for its weight.

For a ring stone, the T73 Round Brilliant Emerald has a girdle that a setter can seat. For the most light, choose DG-M5 Emerald.

T57 Round Brilliant Emerald: questions

Is the T57 as good as a modern round in emerald?

For light, yes: Brilliance 78 against 78 for the T73, and the same 22% leakage. It sparkles less, 72 against 80, and faces up larger per carat, 107 against 100.

Does a T57 emerald have fire?

Little: 40, against 79 for the same cut in diamond.

What does a 6.5 mm T57 emerald weigh?

0.71 ct in our model; a diamond of that width weighs 0.92 ct.

Is a knife-edge girdle a risk in emerald?

A knife edge has no band to take a knock. Emerald, at 7.5 to 8 on the Mohs scale, is softer and more brittle than diamond. A bezel or a protective rim makes sense.
