DG-Broken Hearts and Arrows Moissanite: fire far above the diamond version, and more facets to sparkle than the T73

Brilliance 87 · Fire 97 · Scintillation 86 · in our census, where the T73 scores 86 · 97 · 80 in moissanite

A T73 with sixteen hairline facets, polished in pairs on its pavilion. It is designed for diamond, and in moissanite its white hearts do not form. On light it is close to a plain T73, with fire well above its diamond twin.

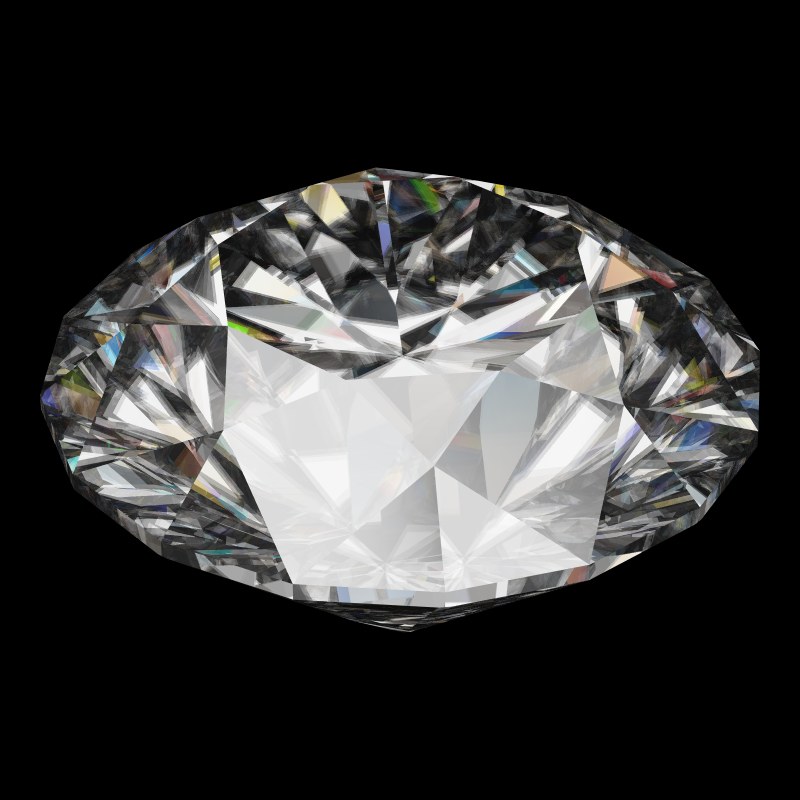

The DG-Broken Hearts and Arrows in moissanite, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Broken Hearts and Arrows model, 1.00 ct, studio light.

DG-Broken Hearts and Arrows Moissanite

The T73's proportions stay: table 53.0%, crown 34.5°, pavilion mains 40.75°. Each ridge where two lower girdle halves meet between the mains gets a pair of narrow facets at 41.68°. That is sixteen in all, for a count of 89. On a stone 6.5 mm across, each is under 0.07 mm wide and about 3 micrometers deep.

In our simulated Hearts and Arrows viewer, a diamond shows a red crack in each heart. The crack runs from the notch most of the way to the point, and the arrows look like the T73's. In moissanite no white hearts form, and the crack facets leave only eight thin white needles.

Against the T73 in moissanite, the traced figures barely move. Brilliance is 87 against 86, Fire 97 against 97, Tilt 94 against 94, and leakage 7% against 7%. Scintillation, read from the facet count, goes up to 86.

Is moissanite a sensible stone for DG-Broken Hearts and Arrows? Pros and cons

Compared with the T73 Round Brilliant in moissanite and with the DG-Broken Hearts and Arrows in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Broken Hearts and Arrows in moissanite (white) against the T73 Round Brilliant in moissanite (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Broken Hearts and Arrows in moissanite, against the T73 Round Brilliant in moissanite as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global+1Brilliance+1Fire0Scintillation+6Spread0Symmetry−1Shape-norm+1Tilt0

Against the T73 Round Brilliant in moissanite: ahead on 4, level on 3, behind on 1.

  • Global92, the comparison 91, difference +1
  • Brilliance87, the comparison 86, difference +1
  • Fire97, the comparison 97, difference 0
  • Scintillation86, the comparison 80, difference +6
  • Spread100, the comparison 100, difference 0
  • Symmetry99, the comparison 100, difference −1
  • Shape-norm94, the comparison 93, difference +1
  • Tilt94, the comparison 94, difference 0
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What moissanite gets from this cut

Fire far above the diamond version

Fire 97 against 78 for the DG-Broken Hearts and Arrows in diamond: 19 points higher

The model and the light are the same in both renders, and the material alone takes fire from 78 to 97. The moissanite render has broad patches of blue, cyan, yellow and red. The diamond render shows fewer and smaller sparks.

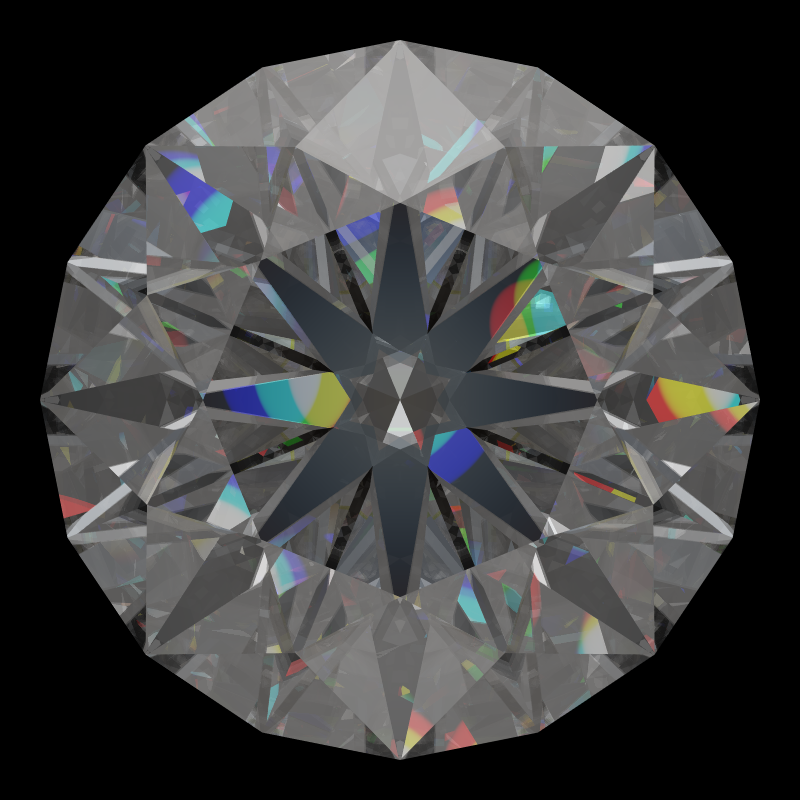

Dg-broken hearts and arrows in moissanite face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 97)

DG-Broken Hearts and Arrows in moissanite · Fire 97

Dg-broken hearts and arrows in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 78)

DG-Broken Hearts and Arrows in diamond · Fire 78

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Lighter than the diamond version

0.92 ct at 6.5 mm, against 1.01 ct for the same cut in diamond (−9%)

Both stones share one model, so density decides this, not the facet plan. At a specific gravity of 3.22 against 3.52 for diamond, the moissanite stone is lighter at every size.

Moissanite0.92 ctDiamond1.01 ct
A DG-Broken Hearts and Arrows 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the DG-Broken Hearts and Arrows page

More facets to flash than the T73

Scintillation 86 against 80 for the T73 Round Brilliant in moissanite: 6 points higher

Our census does not trace scintillation. It reads it from the facet count: 89 here, 73 on the T73. All sixteen added facets are on the pavilion, so the two crown drawings look the same. The difference is in the count. The score cannot tell how much such narrow facets flash.

DG-Broken Hearts and Arrows · 89 facets · Scintillation 86

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Where the diamond version does better

Less light than the diamond version

Brilliance 87 against 93 for the DG-Broken Hearts and Arrows in diamond: 6 points lower

Moissanite bends light more strongly. Through the T73's angles, worked out for diamond, some of it leaves away from the eye. In the head-on maps, the moissanite stone shows eight gray patches just inside the table, smaller ones further out and slivers at the girdle. The diamond's gray is mostly small notches at the girdle, with a few specks further in.

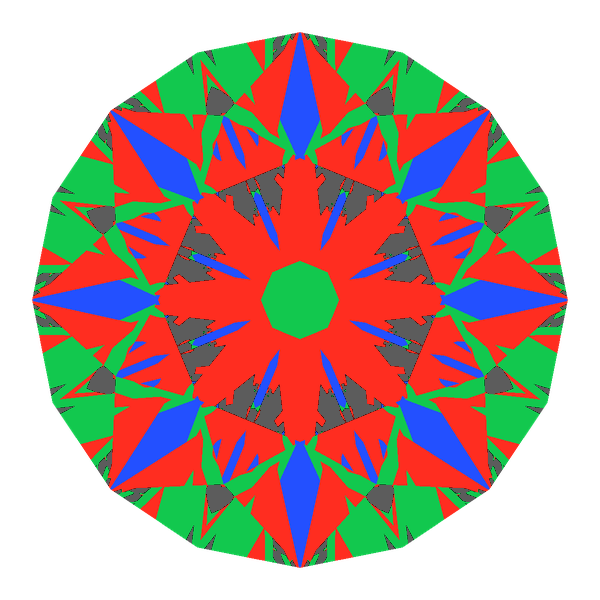

Dg-broken hearts and arrows in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 87)

DG-Broken Hearts and Arrows in moissanite · Brilliance 87

Dg-broken hearts and arrows in diamond face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 93)

DG-Broken Hearts and Arrows in diamond · Brilliance 93

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: Our numbers do not suggest a steeper pavilion. The mains, at 40.75°, are already above the 39.5° minimum we use as a guide for moissanite rounds. For more light, choose a cut drawn for this stone: DG-Anteros Moissanite returns 92 and DG-M5 Moissanite 98.

Try it yourself: Open this Light Return map in the simulator

More light lost than in diamond

Leakage 7 against 2 for the DG-Broken Hearts and Arrows in diamond: 5 points higher

In our census, 7% of the light leaves through the back in moissanite, and 2% in diamond. Both strips have the least gray at 10° and the most at 30°. The gap between them is widest at 0° and almost closes from 20° on.

DG-Broken Hearts and Arrows in moissanite · Leakage 7

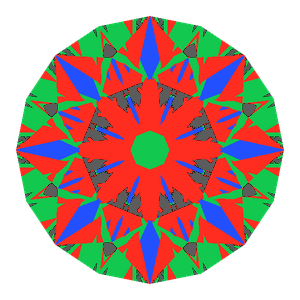

Dg-broken hearts and arrows in moissanite tilted 0 degrees: Light Return map, 9% of the face leaking0° · 9% leak

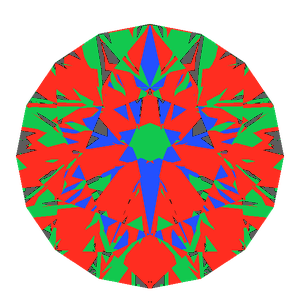

Dg-broken hearts and arrows in moissanite tilted 10 degrees: Light Return map, 6% of the face leaking10° · 6% leak
Dg-broken hearts and arrows in moissanite tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak

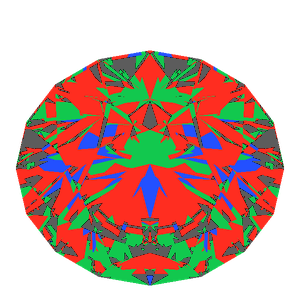

Dg-broken hearts and arrows in moissanite tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak

DG-Broken Hearts and Arrows in diamond · Leakage 2

Dg-broken hearts and arrows in diamond tilted 0 degrees: Light Return map, 3% of the face leaking0° · 3% leak
Dg-broken hearts and arrows in diamond tilted 10 degrees: Light Return map, 2% of the face leaking10° · 2% leak
Dg-broken hearts and arrows in diamond tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
Dg-broken hearts and arrows in diamond tilted 30 degrees: Light Return map, 14% of the face leaking30° · 14% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A larger or smaller stone loses the same share. Of our rounds in moissanite, DG-Anteros leaks 3%, DG-M5 1% and the T105 Round Brilliant Moissanite 6%.

Try it yourself: Tilt it yourself in the simulator's light map

Who should cut it in moissanite

In moissanite this is close to a T73 on light, fire and tilt. It has sixteen more facets to cut, and the higher scintillation figure they bring. Choose it if you want the same plan in moissanite as in a diamond of this design. In this stone the exacting crack facets draw no cracked hearts.

For the cracked hearts, which need diamond, see DG-Broken Hearts and Arrows Diamond.

For a round drawn for this stone, DG-Anteros Moissanite re-solves the T73's angles. The site's cut copy says it forms eight clean hearts in moissanite. DG-M5 Moissanite returns the most light we measure here.

DG-Broken Hearts and Arrows Moissanite: questions

Does a broken hearts and arrows pattern show in moissanite?

No. In our simulated viewer the white hearts form only in diamond. In moissanite the crack facets leave just eight thin white needles near the center.

Is DG-Broken Hearts and Arrows better than a T73 in moissanite?

On light, by a small margin: 87 against 86. Fire reads 97 against 97, and tilt 94 against 94. Scintillation is 86 against 80, from the facet count alone.

How are the crack facets cut?

Last, on a finished T73 pavilion: a pair at 41.68° on each of the eight ridges between pairs of lower girdle halves. Against the plain T73 in moissanite, they change light, fire and tilt by about a point or less.

What does a 6.5 mm DG-Broken Hearts and Arrows moissanite weigh?

0.92 ct. The diamond version of that width weighs 1.01 ct.
