Radiant Square Cut Moissanite: a big fire gain over diamond, with less light than the T73

Brilliance 71 · Fire 93 · Scintillation 66 · in our census, where the T73 scores 86 · 97 · 80 in moissanite

Cropped corners over a brilliant plan. In moissanite the radiant square gains more fire over diamond than almost any cut we measure. But it is well behind the round on light and sparkle.

The Radiant Square Cut in moissanite, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Radiant Square Cut model, 1.00 ct, studio light.

Radiant Square Cut Moissanite

The radiant square has cropped corners and a brilliant facet plan below. Our model has 49 facets, a 34.64° pavilion and a depth of 72.8%, deep for its width. It is more forgiving at the corners than a princess.

Diamond splits only a small share of the returned light from this plan into color, Fire 62. Moissanite increases it to 93, one of the largest gains over diamond on our moissanite pages. Against the T73 it gives up light, sparkle, face-up size for its weight and tilt. It also leaks a little more.

For a brilliant, its 49 facets are few, and the census shows that in sparkle: 66 against 80 for the T73.

Radiant square moissanite: is it worth it? Pros and cons

Compared with the T73 Round Brilliant in moissanite and with the Radiant Square Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Radiant Square Cut in moissanite (white) against the T73 Round Brilliant in moissanite (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Radiant Square Cut in moissanite, against the T73 Round Brilliant in moissanite as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−9Brilliance−15Fire−4Scintillation−14Spread+1Symmetry0Shape-norm−11Tilt−6

Against the T73 Round Brilliant in moissanite: ahead on 1, level on 1, behind on 6.

  • Global82, the comparison 91, difference −9
  • Brilliance71, the comparison 86, difference −15
  • Fire93, the comparison 97, difference −4
  • Scintillation66, the comparison 80, difference −14
  • Spread101, the comparison 100, difference +1
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm82, the comparison 93, difference −11
  • Tilt88, the comparison 94, difference −6
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What moissanite gains in a radiant square

Far more fire than in diamond

Fire 93 against 62 for the Radiant Square Cut in diamond: 31 points higher

Diamond gives this plan only 62. Moissanite gives 93, close to the T73's 97.

Radiant square cut in moissanite face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 93)

Radiant Square Cut in moissanite · Fire 93

Radiant square cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 62)

Radiant Square Cut in diamond · Fire 62

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Lighter than in diamond

1.48 ct at 6.5 mm, against 1.62 ct for the same cut in diamond (−9%)

This is a deep cut, so a 6.5 mm stone is heavy for its width in any material. Moissanite keeps it lighter than diamond.

Moissanite1.48 ctDiamond1.62 ct
A Radiant Square Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the Radiant Square Cut page

The catch with a radiant square moissanite

Much less light than a round

Brilliance 71 against 86 for the T73 Round Brilliant in moissanite: 15 points lower

71 against 86. The Square, a full brilliant on a square outline, returns 82.

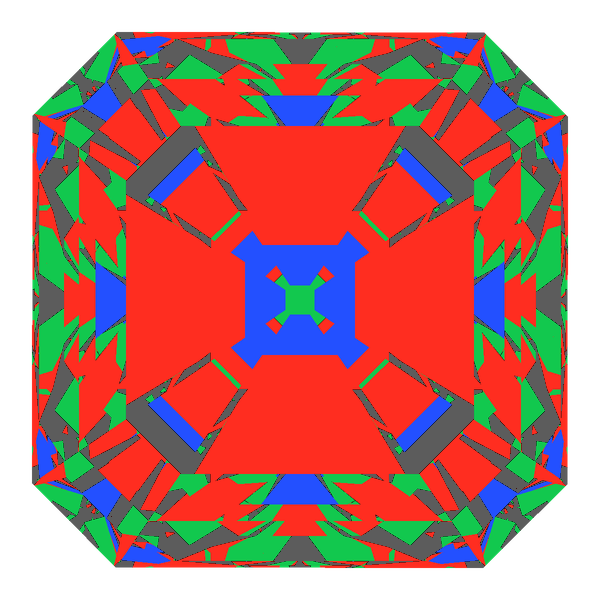

Radiant square cut in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 71)

Radiant Square Cut in moissanite · Brilliance 71

T73 round brilliant in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 86)

T73 Round Brilliant in moissanite · Brilliance 86

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: The Square Cut Moissanite keeps a square outline and returns 82. For the most light, choose a round: DG-M5 Moissanite.

Try it yourself: Open this Light Return map in the simulator

Fewer flashes than a round

Scintillation 66 against 80 for the T73 Round Brilliant in moissanite: 14 points lower

Our scintillation score tracks the facet count: 49 here, 73 on the T73.

Radiant Square Cut · 49 facets · Scintillation 66

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: More facets help, and that is a matter of the plan, not the angles. The Cushion Cut Moissanite scores 85 and the Square Cut Moissanite 78.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Less face for its weight than a round

Face-up size 91 against 100 for the T73 Round Brilliant in moissanite (T73 = 100): 9% less face-up area for the same weight

A square with cropped corners fills more of its width than a circle does. But this one is 72.8% deep against 61.7% for the T73, and that depth puts more weight under each part of the face. Drawn at 1.00 ct, the radiant square is the smaller of the pair.

Radiant Square Cut · 5.70 mm at 1.00 ct · Face-up size 91

T73 Round Brilliant · 6.68 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in moissanite and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

What helps: We have not measured a shallower radiant square, so the remedy is another cut. The Square Cut Moissanite is less deep on a square outline and faces up at 100, level with the T73.

Try it yourself: See its size at 1.00 ct in moissanite in the 3D Gemstone Simulator

Loses more light when tipped

Tilt 88 against 94 for the T73 Round Brilliant in moissanite: 6 points lower

At 20° of tip, the radiant square keeps 88 of the light it shows face-up. The T73 keeps 94. In its strip, the gray increases at each step from 0° to 30°.

Radiant Square Cut in moissanite · Tilt 88

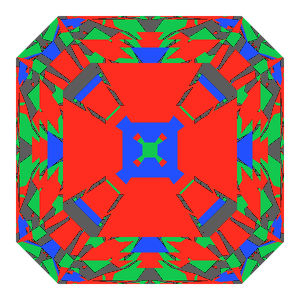

Radiant square cut in moissanite tilted 0 degrees: Light Return map, 16% of the face leaking0° · 16% leak

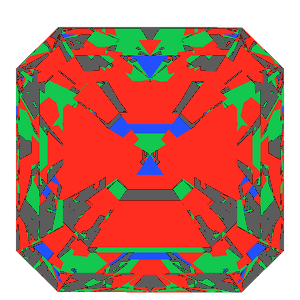

Radiant square cut in moissanite tilted 10 degrees: Light Return map, 19% of the face leaking10° · 19% leak

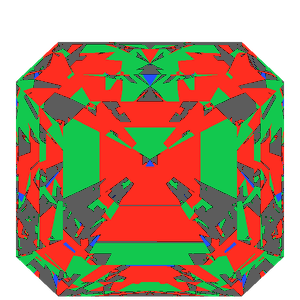

Radiant square cut in moissanite tilted 20 degrees: Light Return map, 20% of the face leaking20° · 20% leak

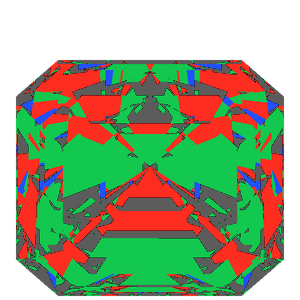

Radiant square cut in moissanite tilted 30 degrees: Light Return map, 22% of the face leaking30° · 22% leak

T73 Round Brilliant in moissanite · Tilt 94

T73 round brilliant in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak
T73 round brilliant in moissanite tilted 10 degrees: Light Return map, 6% of the face leaking10° · 6% leak
T73 round brilliant in moissanite tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak
T73 round brilliant in moissanite tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: In our moissanite census, two cuts keep 100 when tipped and return within 10 points of the T73's 86. Both are rounds: Portuguese Bird's Nest Cut Moissanite returns 82 and the Old European Cut Moissanite 79.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who a radiant square moissanite suits

The radiant square suits a square moissanite where fire is the point. It is a step down from the Square on light, sparkle and face-up size.

The double refraction of moissanite can show as doubled facet edges. The renders here trace both rays and show it. But our scores use one index, so the doubling has no score.

For light in a square, choose the Square Cut Moissanite. For sparkle, choose the Cushion Cut Moissanite.

Radiant Square Cut Moissanite: questions

Radiant square or square cut moissanite?

The Square returns more light (82 against 71) and more sparkle (78 against 66). Fire is close (91 against 93).

Is radiant square moissanite bright?

Less than a round or our Square: 71, where the T73 gives 86 and the Square 82.

Does radiant square moissanite have a lot of fire?

Yes: 93, against 62 for the same cut in diamond.

What does a 6.5 mm radiant square moissanite weigh?

About 1.48 ct, a heavy stone for its width. In diamond, 1.62 ct.
