DG-Elongated Hexagon Moissanite: lighter than diamond, with a little more face per carat than a round

Brilliance 20 · Fire 93 · Scintillation 51 · in our census, where the T73 scores 86 · 97 · 80 in moissanite

Step cut the same on both faces, with a window at the back by design. In moissanite it is lighter than diamond and a little larger for its weight than a round. But more than half its light leaks.

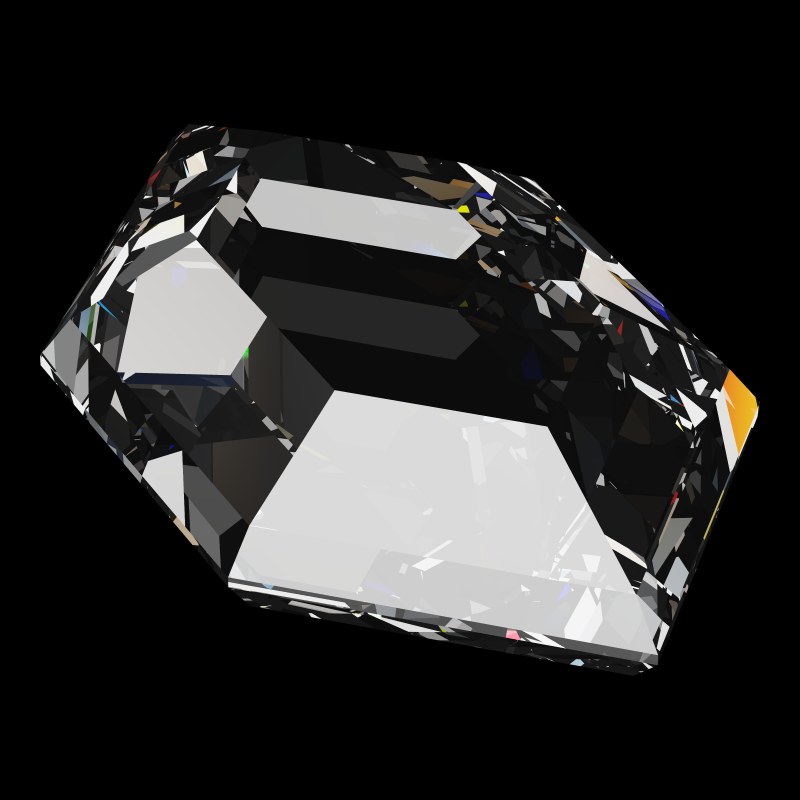

The DG-Elongated Hexagon in moissanite, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the DG-Elongated Hexagon model, 1.00 ct, studio light.

DG-Elongated Hexagon Moissanite

Six long sides, square points, and the same steps on the front as on the back. There are two steps on each side of a six-facet girdle, a table in front and a matching flat behind. It was drawn for emerald. The model has 32 facets, a 50.0% table, and a 36.0° crown mirrored by a 36.0° pavilion. Its outline is 1.7 times as long as wide, and its depth is 45.3%.

A note on the census: the back flat is a window by design. Our census counts every ray that passes through that flat as lost. The head-on figures on the cut page leave the window out. Read its brilliance and leakage with that in mind: they are the lowest and the highest we measure in moissanite.

Front and back are finished the same, so it looks the same whichever way it turns. That is its purpose in a pendant, or in an open setting that shows the back.

DG-Elongated Hexagon in moissanite: pros and cons

Compared with the T73 Round Brilliant in moissanite and with the DG-Elongated Hexagon in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Elongated Hexagon in moissanite (white) against the T73 Round Brilliant in moissanite (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: DG-Elongated Hexagon in moissanite, against the T73 Round Brilliant in moissanite as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−37Brilliance−66Fire−4Scintillation−29Spread+11Symmetry−27Shape-norm−67Tilt−21

Against the T73 Round Brilliant in moissanite: ahead on 1, behind on 7.

  • Global54, the comparison 91, difference −37
  • Brilliance20, the comparison 86, difference −66
  • Fire93, the comparison 97, difference −4
  • Scintillation51, the comparison 80, difference −29
  • Spread111, the comparison 100, difference +11
  • Symmetry73, the comparison 100, difference −27
  • Shape-norm26, the comparison 93, difference −67
  • Tilt73, the comparison 94, difference −21
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What moissanite gains in DG-Elongated Hexagon

Lighter than in diamond

1.65 ct at 6.5 mm, against 1.80 ct for the same cut in diamond (−9%)

Moissanite's specific gravity is 3.22, diamond's 3.52. So the same hexagon, cut to the same millimeters, has fewer carats.

Moissanite1.65 ctDiamond1.80 ct
A DG-Elongated Hexagon 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the DG-Elongated Hexagon page

A little more face for its weight than a round

Face-up size 107 against 100 for the T73 Round Brilliant in moissanite (T73 = 100): 7% more face-up area for the same weight

Face-up size is the outline area that a model gives per carat, against 100 for the T73. At 45.3% deep, it covers 107, where a round of the same weight covers 100.

DG-Elongated Hexagon · 9.36 x 5.50 mm at 1.00 ct · Face-up size 107

T73 Round Brilliant · 6.68 mm at 1.00 ct · Face-up size 100

Both stones weigh 1.00 ct in moissanite and are drawn to the same scale in millimeters, from each cut's own model. Face-up size is the outline's area per carat, with the T73 at 100: a deeper stone, or a rounder outline, spreads less area for its weight.

Try it yourself: See its size at 1.00 ct in moissanite in the 3D Gemstone Simulator

The catch with a DG-Elongated Hexagon moissanite

The least light we measure in moissanite

Brilliance 20 against 86 for the T73 Round Brilliant in moissanite: 66 points lower

20 against 86, the lowest of every cut we measure in moissanite. The census counts the light through the back window as lost. In diamond the figure is lower still, 12.

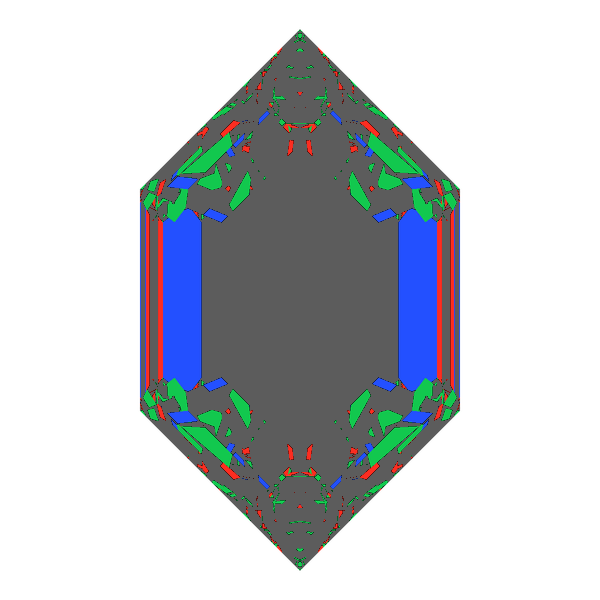

Dg-elongated hexagon in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 20)

DG-Elongated Hexagon in moissanite · Brilliance 20

T73 round brilliant in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 86)

T73 Round Brilliant in moissanite · Brilliance 86

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: For a long step cut with more light, the Emerald Cut returns 51. DG-M5 Moissanite returns the most, 98. Neither looks the same from both sides.

Try it yourself: Open this Light Return map in the simulator

More than half the light leaks

Leakage 58 against 7 for the T73 Round Brilliant in moissanite: 51 points higher

58% of the light in our census leaves through the back, where the T73 loses 7%. That is the highest share we measure in moissanite. Much of it goes through the window, by design.

DG-Elongated Hexagon in moissanite · Leakage 58

Dg-elongated hexagon in moissanite tilted 0 degrees: Light Return map, 70% of the face leaking0° · 70% leak

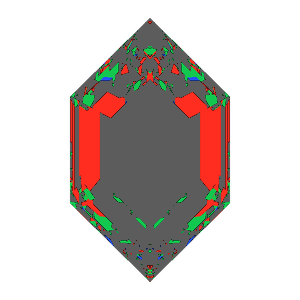

Dg-elongated hexagon in moissanite tilted 10 degrees: Light Return map, 70% of the face leaking10° · 70% leak

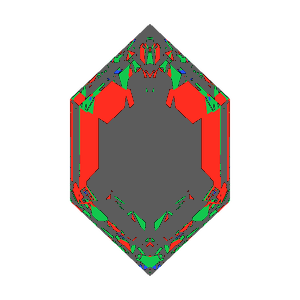

Dg-elongated hexagon in moissanite tilted 20 degrees: Light Return map, 65% of the face leaking20° · 65% leak

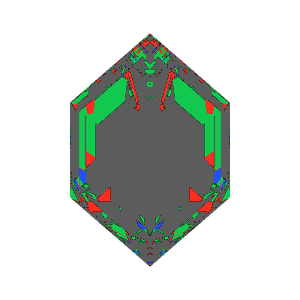

Dg-elongated hexagon in moissanite tilted 30 degrees: Light Return map, 72% of the face leaking30° · 72% leak

T73 Round Brilliant in moissanite · Leakage 7

T73 round brilliant in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak
T73 round brilliant in moissanite tilted 10 degrees: Light Return map, 6% of the face leaking10° · 6% leak
T73 round brilliant in moissanite tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak
T73 round brilliant in moissanite tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The window is part of the design, and we have not measured other angles. So the fix our data supports is a different cut. The Emerald Cut leaks 27%, DG-Anteros Moissanite 3%.

Try it yourself: Tilt it yourself in the simulator's light map

Fewer flashes than a round

Scintillation 51 against 80 for the T73 Round Brilliant in moissanite: 29 points lower

Step facets are few and long: 32 here against 73, for Scintillation 51 against 80. Like every scintillation figure, it depends on the facets alone, not on moissanite.

DG-Elongated Hexagon · 32 facets · Scintillation 51

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: This is the step plan. For more flashes on a long outline, the Oval scores 87, from far more facets.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

Keeps less of its light when tipped

Tilt 73 against 100 for the DG-Elongated Hexagon in diamond: 27 points lower

At 20° of tip, it keeps 73 of its face-up light. The same cut in diamond keeps 100, and the T73 in moissanite 94. We count the larger gap, the gap to diamond, but the diamond figure is a share of very little light (Brilliance 12).

DG-Elongated Hexagon in moissanite · Tilt 73

Dg-elongated hexagon in moissanite tilted 0 degrees: Light Return map, 70% of the face leaking0° · 70% leak
Dg-elongated hexagon in moissanite tilted 10 degrees: Light Return map, 70% of the face leaking10° · 70% leak
Dg-elongated hexagon in moissanite tilted 20 degrees: Light Return map, 65% of the face leaking20° · 65% leak
Dg-elongated hexagon in moissanite tilted 30 degrees: Light Return map, 72% of the face leaking30° · 72% leak

DG-Elongated Hexagon in diamond · Tilt 100

Dg-elongated hexagon in diamond tilted 0 degrees: Light Return map, 79% of the face leaking0° · 79% leak
Dg-elongated hexagon in diamond tilted 10 degrees: Light Return map, 72% of the face leaking10° · 72% leak
Dg-elongated hexagon in diamond tilted 20 degrees: Light Return map, 68% of the face leaking20° · 68% leak
Dg-elongated hexagon in diamond tilted 30 degrees: Light Return map, 68% of the face leaking30° · 68% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: A bright round keeps its light far better. DG-Vitruvio Moissanite keeps 94 at 20°, with Brilliance 86.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who DG-Elongated Hexagon in moissanite suits

DG-Elongated Hexagon suits pendants and open settings where both faces show and people look through the stone. For brilliance, it is the weakest cut we measure in moissanite: 20, the lowest in this stone.

It was drawn for emerald. See DG-Elongated Hexagon Emerald for the stone it was made for, and the DG-Elongated Hexagon page for every gemstone. For a long moissanite with far more light, choose the Marquise.

Moissanite is doubly refractive. In a step cut with a window both ways, doubled facet edges may show in the steps. Our renders trace both rays, but our scores use a single index.

DG-Elongated Hexagon Moissanite: questions

Why does DG-Elongated Hexagon score so low in moissanite?

By design, its back flat lets light straight through, and our census counts that light as lost: Brilliance 20, with 58% leakage. The head-on figures on its cut page do not include the window.

Is DG-Elongated Hexagon moissanite good for a pendant?

Front and back are cut the same, so it shows the same face either way round. For brilliance it is weak in moissanite: 20 against 86 for the T73.

What does a 6.5 mm wide DG-Elongated Hexagon weigh in moissanite?

1.65 ct, against 1.80 ct in diamond.
