Square Cut Moissanite: the brightest square outline in this stone, and fiery

Brilliance 82 · Fire 91 · Scintillation 78 · in our census, where the T73 scores 86 · 97 · 80 in moissanite

The square partner of the round brilliant. In moissanite it is the brightest square outline we measure, but it is still a step behind the T73.

The Square Cut in moissanite, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Square Cut model, 1.00 ct, studio light.

Square Cut Moissanite

Our Square is a brilliant with a full facet set on a square outline: 69 facets, 65.0% deep, with a 41.39° pavilion. It works as a center stone or as an accent.

Of the square outlines we measure in moissanite, it returns the most light, 82. The Cushion returns 74 and the Radiant Square 71. Against the T73 it has three cons, all small. On face-up size for its weight the two are level, 100 against 100.

Is a square cut good for moissanite? Pros and cons

Compared with the T73 Round Brilliant in moissanite and with the Square Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Square Cut in moissanite (white) against the T73 Round Brilliant in moissanite (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Square Cut in moissanite, against the T73 Round Brilliant in moissanite as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−4Brilliance−4Fire−6Scintillation−2Spread−2Symmetry0Shape-norm+15Tilt−6

Against the T73 Round Brilliant in moissanite: ahead on 1, level on 1, behind on 6.

  • Global87, the comparison 91, difference −4
  • Brilliance82, the comparison 86, difference −4
  • Fire91, the comparison 97, difference −6
  • Scintillation78, the comparison 80, difference −2
  • Spread98, the comparison 100, difference −2
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm108, the comparison 93, difference +15
  • Tilt88, the comparison 94, difference −6
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What moissanite gains in a square cut

Far more fire than in diamond

Fire 91 against 72 for the Square Cut in diamond: 19 points higher

Through the same square plan, diamond scores 72 and moissanite 91. Only the material changes.

Square cut in moissanite face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 91)

Square Cut in moissanite · Fire 91

Square cut in diamond face-up under a single bright light: a render from our simulator, its colored flashes are the fire (score 72)

Square Cut in diamond · Fire 72

Look at the colored flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

Lighter than a diamond square

1.04 ct at 6.5 mm, against 1.14 ct for the same cut in diamond (−9%)

At 65.0% deep, this outline is heavy for its width. Moissanite, the less dense material, keeps the carat weight down.

Moissanite1.04 ctDiamond1.14 ct
A Square Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

Try it yourself: Weights in every gemstone on the Square Cut page

The catch with a square cut moissanite

Loses more light when tipped

Tilt 88 against 94 for the T73 Round Brilliant in moissanite: 6 points lower

Tipped by 20°, the Square keeps 88 of its face-up light, and the T73 keeps 94. That gap is the largest of its three cons.

Square Cut in moissanite · Tilt 88

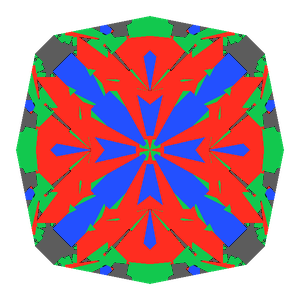

Square cut in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak

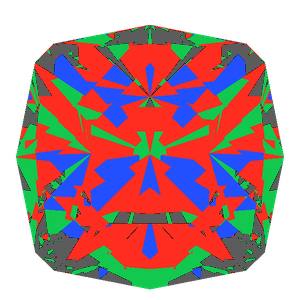

Square cut in moissanite tilted 10 degrees: Light Return map, 14% of the face leaking10° · 14% leak

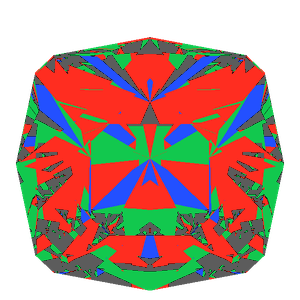

Square cut in moissanite tilted 20 degrees: Light Return map, 17% of the face leaking20° · 17% leak

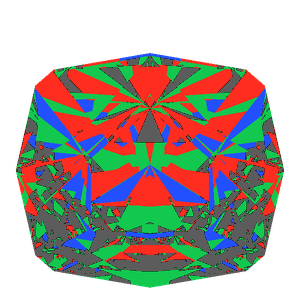

Square cut in moissanite tilted 30 degrees: Light Return map, 24% of the face leaking30° · 24% leak

T73 Round Brilliant in moissanite · Tilt 94

T73 round brilliant in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak
T73 round brilliant in moissanite tilted 10 degrees: Light Return map, 6% of the face leaking10° · 6% leak
T73 round brilliant in moissanite tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak
T73 round brilliant in moissanite tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Tilt is how much of its own face-up light a stone keeps when tilted. Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: No square outline we sell beats it on both tilt and light. For a bright stone that stays steady under tilt, DG-Miliano Moissanite keeps 95 at 86 brilliance, on a round outline.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

A little less light than the T73

Brilliance 82 against 86 for the T73 Round Brilliant in moissanite: 4 points lower

82 against 86: close, for a square. Its pavilion, 41.39°, is above the 39.5° guide minimum, and we have not measured other angles.

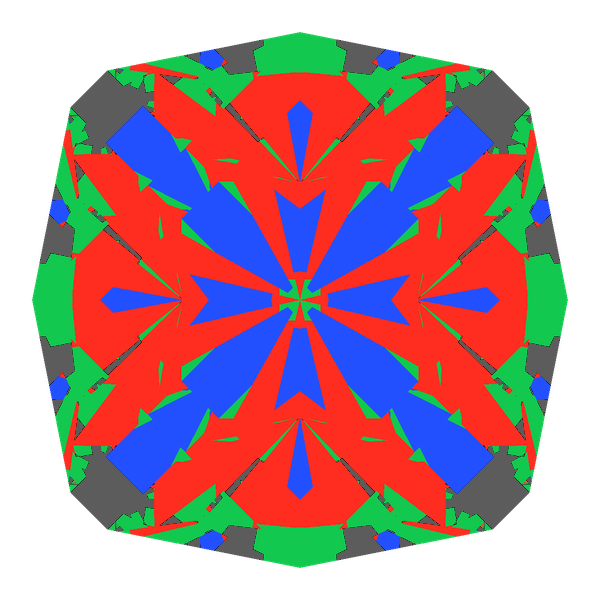

Square cut in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 82)

Square Cut in moissanite · Brilliance 82

T73 round brilliant in moissanite face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 86)

T73 Round Brilliant in moissanite · Brilliance 86

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: No square outline we measure does better in moissanite. Only the rounds go higher, up to 98 for DG-M5 Moissanite.

Try it yourself: Open this Light Return map in the simulator

Slightly more leakage than the T73

Leakage 11 against 7 for the T73 Round Brilliant in moissanite: 4 points higher

11% of the light in our census leaves through the pavilion, and the T73 loses 7%. A smaller Square loses the same share.

Square Cut in moissanite · Leakage 11

Square cut in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak
Square cut in moissanite tilted 10 degrees: Light Return map, 14% of the face leaking10° · 14% leak
Square cut in moissanite tilted 20 degrees: Light Return map, 17% of the face leaking20° · 17% leak
Square cut in moissanite tilted 30 degrees: Light Return map, 24% of the face leaking30° · 24% leak

T73 Round Brilliant in moissanite · Leakage 7

T73 round brilliant in moissanite tilted 0 degrees: Light Return map, 10% of the face leaking0° · 10% leak
T73 round brilliant in moissanite tilted 10 degrees: Light Return map, 6% of the face leaking10° · 6% leak
T73 round brilliant in moissanite tilted 20 degrees: Light Return map, 10% of the face leaking20° · 10% leak
T73 round brilliant in moissanite tilted 30 degrees: Light Return map, 15% of the face leaking30° · 15% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: We have not measured a steeper Square. DG-Anteros Moissanite leaks 3%.

Try it yourself: Tilt it yourself in the simulator's light map

Who a square cut moissanite suits

For a square moissanite where light comes first, this is the cut we pick from our set. It suits a modern solitaire or a row of accent stones.

For more sparkle in a near-square outline, the Cushion Cut Moissanite scores 85. For the most light, choose a round such as DG-M5 Moissanite.

Moissanite is doubly refractive, and broad facets can show doubled facet edges. Ours is a brilliant plan. The renders trace both rays and show the doubling it has, but no score of ours measures it.

Square Cut Moissanite: questions

Is square cut moissanite bright?

It is the brightest square outline we measure in moissanite, 82, against 86 for the T73 round.

Does square cut moissanite show doubling?

Some. The birefringence of moissanite, 0.043, is real. Cutters usually set the table square to the optic axis to keep doubling out of the face-up view. Our renders trace both rays with the table set that way, so their doubling is what that orientation leaves.

What does a 6.5 mm square moissanite weigh?

1.04 ct, against 1.14 ct for a diamond Square of that width.

Get the Square Cut files

6 formatsMillimetersWatertight

Square Cut 3D files

The Square Cut as exact geometry: 69 planar facets, real-world scale, ready for CAD, rendering, printing and casting.

  • STEPExact faceted solid for CAD
  • 3DMRhino, closed mesh on its own layer
  • STLWatertight mesh for printing and casting
  • OBJMesh for modeling and rendering
  • FBXBlender, 3ds Max, Maya, Cinema 4D, Unity, Unreal
  • GLBWeb, AR and quick previews
GemCad64 index

Square Cut cutting files

The Square Cut as a faceting design: 57 + 12 girdles = 69 facets, 64 index, 4-fold mirror-image symmetry, ready for the machine.

  • .ascGemCad design file, 64 index gear
  • .csvTier table: angles, indices and cutting order
  • DiagramPrintable faceting diagram

Not sure the files open in your software? Get the cube free: the same six formats, for your email address, used only to send them (privacy).

Questions before you buy? Email us.
