DG-Bowtie Cubic Zirconia: Pros, Cons & Fire

DG-Bowtie is the library's first marquise design, kept under its own name when our Marquise was remodelled. Our model has 87 facets, is 2.059 times as long as wide over a 42.0° pavilion, and is 93.8% deep: the deepest cut in our CZ census.

It is here to study beside the Marquise Cut Cubic Zirconia, and to render when a bow-tie is what you want to show. We have no bow-tie metric, so the band across its middle gets no number on this page.

Is DG-Bowtie worth cutting in cubic zirconia? Pros and cons

Cons

About a quarter of the T73's light 26 vs 98
Very heavy for its width 5.20 vs 3.16 ct
Two-fifths of the light leaks 41 vs 1
Loses more light when tipped 77 vs 87

Compared with the T73 Round Brilliant in cubic zirconia and with the DG-Bowtie in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the DG-Bowtie in cubic zirconia (white) against the T73 Round Brilliant in cubic zirconia (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Against the T73 Round Brilliant in cubic zirconia: ahead on 2, behind on 6.

Global63, the comparison 93, difference −30
Brilliance26, the comparison 98, difference −72
Fire90, the comparison 87, difference +3
Scintillation86, the comparison 80, difference +6
Spread87, the comparison 100, difference −13
Symmetry94, the comparison 100, difference −6
Shape-norm30, the comparison 106, difference −76
Tilt77, the comparison 87, difference −10

Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

Open it in the Cut Performance Wheel

What DG-Bowtie gives cubic zirconia

More fire than in diamond

Fire 90 against 82 for the DG-Bowtie in diamond: 8 points higher

The diamond version scores 82; in CZ it reaches 90, a few points above the T73 in CZ. With Brilliance at 26, the colour comes from a small share of the light that enters.

Dg-bowtie in cubic zirconia face-up under a single bright light: a render from our simulator, its coloured flashes are the fire (score 90) — Look at the coloured flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Dg-bowtie in diamond face-up under a single bright light: a render from our simulator, its coloured flashes are the fire (score 82) — Look at the coloured flashes: those are fire. Same light, same size, same face-up angle; rendered by our 3D Gemstone Simulator from each cut's own model.

Try it yourself: See the fire in the 3D Gemstone Simulator

More sparkle than the T73

Scintillation 86 against 80 for the T73 Round Brilliant in cubic zirconia: 6 points higher

It has 87 facets against the T73's 73, and the score follows the count. It ties the remodelled Marquise, 86.

DG-Bowtie · 87 facets · Scintillation 86

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Count the facets in each crown. Drawn from each cut's own model.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

The catch with DG-Bowtie in CZ

About a quarter of the T73's light

Brilliance 26 against 98 for the T73 Round Brilliant in cubic zirconia: 72 points lower

Only DG-Elongated Hexagon returns less among the cuts in our CZ census. The diamond version returns about the same, 27, so the cause lies in the design, not the stone.

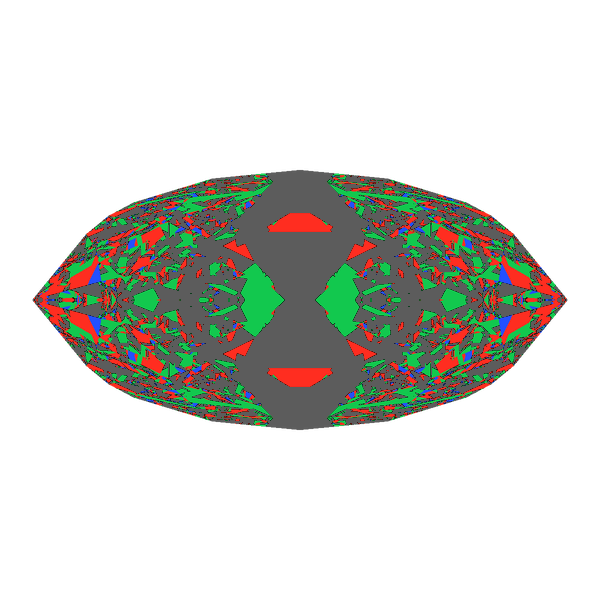

Dg-bowtie in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, grey shows where it leaks (Brilliance 26) — Red, green and blue = light returning to the eye; grey = light leaving through the pavilion. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

T73 round brilliant in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, grey shows where it leaks (Brilliance 98) — Red, green and blue = light returning to the eye; grey = light leaving through the pavilion. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: The remodelled Marquise Cut Cubic Zirconia returns 66 in the same kind of outline. For light first, DG-Rafaello Cubic Zirconia (100).

Try it yourself: Open this Light Return map in the simulator

Very heavy for its width

5.20 ct at 6.5 mm, against 3.16 ct for the same cut in diamond (+65%)

At 93.8% deep there is a great deal of stone below the girdle: a DG-Bowtie 6.5 mm wide weighs 5.20 ct in CZ and 3.16 ct in diamond.

A DG-Bowtie 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: Compare it with other marquises by length and width, not weight.

Try it yourself: Weights in all seven gemstones on the DG-Bowtie page

Two-fifths of the light leaks

Leakage 41 against 1 for the T73 Round Brilliant in cubic zirconia: 40 points higher

41% leaves through the back in our census, the third highest share in CZ, against 1% for the T73. The diamond version leaks 36%.

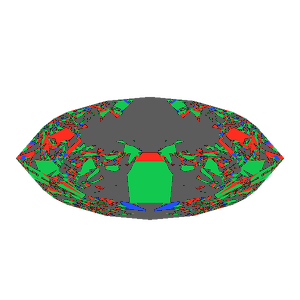

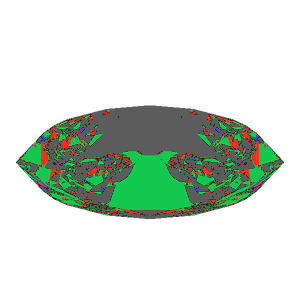

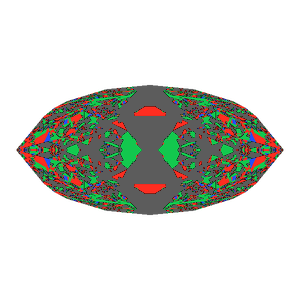

Dg-bowtie in cubic zirconia tilted 0 degrees: Light Return map, 48% of the face leaking — Each frame is the Light Return map with the stone tilted away from you by the angle shown; grey is light leaving through the pavilion. The share under each frame is that picture's own.

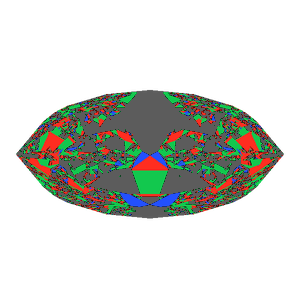

Dg-bowtie in cubic zirconia tilted 10 degrees: Light Return map, 45% of the face leaking — Each frame is the Light Return map with the stone tilted away from you by the angle shown; grey is light leaving through the pavilion. The share under each frame is that picture's own.

What helps: Steepening is not the fix: the pavilion is already 42.0°, above the 38.1° guide minimum. The Marquise Cut Cubic Zirconia leaks 20%.

Try it yourself: Tilt it yourself in the simulator's light map

Loses more light when tipped

Tilt 77 against 87 for the T73 Round Brilliant in cubic zirconia: 10 points lower

At 20° it keeps 77 of its face-up light; the T73 keeps 87, and the diamond DG-Bowtie 83.

What helps: For light that holds as the stone tips, a round: the Old European Cut Cubic Zirconia keeps 91 at 20° in CZ.

Try it yourself: Compare the Tilt spoke in the Cut Performance Wheel

Who DG-Bowtie in CZ suits

DG-Bowtie in CZ is a study piece: for setting beside the Marquise, for showing what a bow-tie is, and for renders that need one. As a stone to wear for its light, it is one of the weakest pairings we measure.

For a marquise to wear, choose the remodelled Marquise Cut Cubic Zirconia: more light, half the leak and a far larger face for its weight, 121 against 92.

DG-Bowtie Cubic Zirconia: questions

What is DG-Bowtie?

Our first marquise design, kept under its own name and 93.8% deep. Face-up it shows the dark band across the middle that elongated brilliants are prone to.

DG-Bowtie or Marquise in CZ?

Choose the Marquise. It returns 66 to DG-Bowtie's 26, leaks 20% to its 41%, and faces up 121 per carat to its 92. Scintillation is level.

Why is DG-Bowtie so heavy?

It is 93.8% deep, so a stone 6.5 mm wide weighs 5.20 ct in CZ.

Does DG-Bowtie have more fire in CZ than in diamond?

Yes: 90 against 82. It returns little light in either stone, 26 and 27.
