Old Single Cut Cubic Zirconia: a simple 26-facet plan, well short of a modern round

Brilliance 65 · Fire 83 · Scintillation 44 · in our census, where the T73 scores 98 · 87 · 80 in cubic zirconia

An Old Single of 26 facets. In CZ no score counts as a pro by our rules. It returns Brilliance 65 against 98 for the T73.

The Old Single Cut in cubic zirconia, rendered at an angle in our 3D Gemstone Simulator under studio light
Rendered in our 3D Gemstone Simulator from the Old Single Cut model, 1.00 ct, studio light.

Old Single Cut Cubic Zirconia

Cubic zirconia is where many cutters first try a design. Our octagonal model is 67.5% deep, with a 57.5% table and a steep 48.48° pavilion.

Against the T73 in CZ it falls a long way behind, further than in diamond. The T73 suits CZ unusually well, with Brilliance 98. That makes the gap wide.

Is CZ good in an Old Single cut? Pros and cons

Pros

None by our margins. Fire is level with the diamond version, 83 against 84.

Compared with the T73 Round Brilliant in cubic zirconia and with the Old Single Cut in diamond. A difference counts from 3 points (Brilliance, Fire, Tilt, Leakage), 5 (Scintillation, Symmetry), 4% (face-up size per carat) or 5% (weight); Tilt counts as a pro only for a stone within 5 points of the brilliance it is compared with. How we measure.

All eight scores against the T73

At a glance: the Old Single Cut in cubic zirconia (white) against the T73 Round Brilliant in cubic zirconia (dashed): solid white where it reaches further, hatched where it falls short. Each pro and con is explained, with pictures, below.

Performance wheel: Old Single Cut in cubic zirconia, against the T73 Round Brilliant in cubic zirconia as an outline. Solid white marks where it reaches further, hatching where it falls short. The scores are listed below.50100Global−17Brilliance−33Fire−4Scintillation−36Spread−3Symmetry0Shape-norm−36Tilt+8

Against the T73 Round Brilliant in cubic zirconia: ahead on 1, level on 1, behind on 6.

  • Global76, the comparison 93, difference −17
  • Brilliance65, the comparison 98, difference −33
  • Fire83, the comparison 87, difference −4
  • Scintillation44, the comparison 80, difference −36
  • Spread97, the comparison 100, difference −3
  • Symmetry100, the comparison 100, difference 0
  • Shape-norm70, the comparison 106, difference −36
  • Tilt95, the comparison 87, difference +8
Face-up light census, a different measure from the Cut Grading Tool; Spread and Shape-norm above 100 sit on the ring. Spread is the census's estimate from depth alone; the face-up size in the pros and cons is measured from each model's outline.

What cubic zirconia gains in an Old Single cut

Nothing on this page counts as a pro under our rules. Tilt reads 95 against the T73's 87. But we count Tilt as a pro only when Brilliance is within 5 points of the baseline it beats. Here it is not, at 65 against 98: the stone keeps its share of a small amount of light. Fire (83) is level with the same cut in diamond (84). But it is under the T73's 87 in CZ by enough to count against it, and so is its face-up size, 90. Neither is among the four largest cons we show. Its value is practical: an Old Single in CZ to cut, set or study.

Where the Old Single falls short in CZ

Much heavier than diamond

1.73 ct at 6.5 mm, against 1.05 ct for the same cut in diamond (+65%)

Cubic zirconia's specific gravity is about 5.8 against diamond's 3.52: the same stone is about two-thirds heavier.

Cubic Zirconia1.73 ctDiamond1.05 ct
A Old Single Cut 6.5 mm across, weighed from the model's measured volume and each stone's specific gravity.

What helps: None in the cut: it is the material. Buy and set CZ by millimeters, not carats.

Try it yourself: Weights in every gemstone on the Old Single Cut page

Few flashes: 26 facets against 73

Scintillation 44 against 80 for the T73 Round Brilliant in cubic zirconia: 36 points lower

Our scintillation score follows the facet plan, not the material. So the eight cut scores 44 in diamond as well.

Old Single Cut · 26 facets · Scintillation 44

T73 Round Brilliant · 73 facets · Scintillation 80

Scintillation follows the number of facets: more facets, more and smaller flashes as the stone moves. Compare the facet counts under the drawings; each drawing shows only the crown. Drawn from each cut's own model.

What helps: The facet plan sets this. The Old European Cut Cubic Zirconia keeps a historic round and scores 81.

Try it yourself: Compare the Scintillation spoke in the Cut Performance Wheel

A third less light than the T73 in CZ

Brilliance 65 against 98 for the T73 Round Brilliant in cubic zirconia: 33 points lower

The T73 returns almost everything in CZ. The Old Single loses a third of that. About a third of its face-up map is gray, but the T73's map shows none.

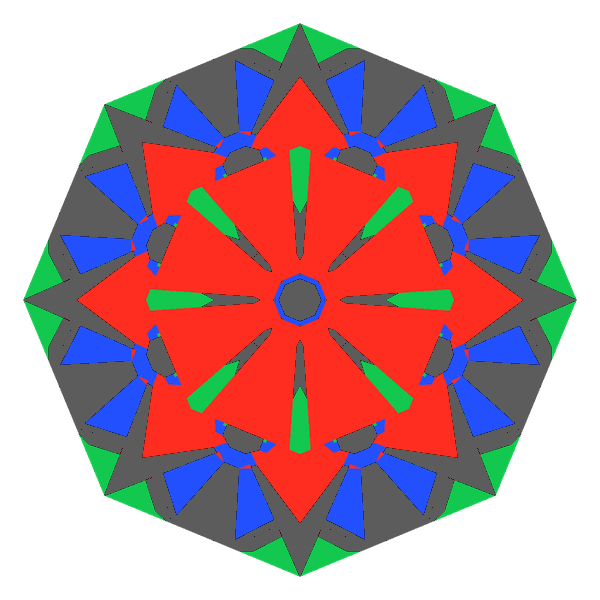

Old single cut in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 65)

Old Single Cut in cubic zirconia · Brilliance 65

T73 round brilliant in cubic zirconia face-up Light Return map: red, green and blue show where the light returns from, gray shows where it leaks (Brilliance 98)

T73 Round Brilliant in cubic zirconia · Brilliance 98

Red, green and blue = light returning to the eye; gray = leakage, light that leaves heading down or stays inside. This is the head-on view; the Brilliance score averages a wider cone of light, so the score can differ from what one picture shows.

What helps: In CZ the Old European Cut Cubic Zirconia returns 92, and the T73 Round Brilliant returns 98.

Try it yourself: Open this Light Return map in the simulator

A quarter of the light leaks

Leakage 27 against 1 for the T73 Round Brilliant in cubic zirconia: 26 points higher

Our census finds that 27% of the light escapes through the pavilion. The T73 in CZ loses 1%, and the same cut in diamond loses 19%.

Old Single Cut in cubic zirconia · Leakage 27

Old single cut in cubic zirconia tilted 0 degrees: Light Return map, 32% of the face leaking0° · 32% leak

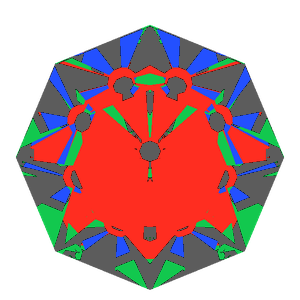

Old single cut in cubic zirconia tilted 10 degrees: Light Return map, 31% of the face leaking10° · 31% leak

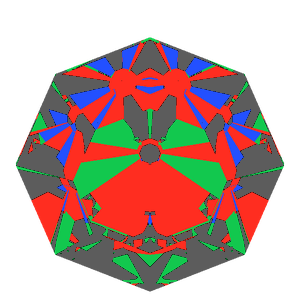

Old single cut in cubic zirconia tilted 20 degrees: Light Return map, 34% of the face leaking20° · 34% leak

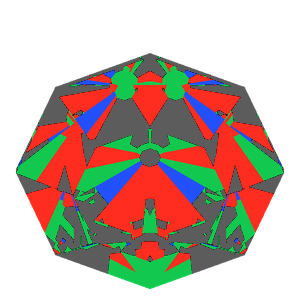

Old single cut in cubic zirconia tilted 30 degrees: Light Return map, 33% of the face leaking30° · 33% leak

T73 Round Brilliant in cubic zirconia · Leakage 1

T73 round brilliant in cubic zirconia tilted 0 degrees: Light Return map, 0% of the face leaking0° · 0% leak
T73 round brilliant in cubic zirconia tilted 10 degrees: Light Return map, 1% of the face leaking10° · 1% leak
T73 round brilliant in cubic zirconia tilted 20 degrees: Light Return map, 9% of the face leaking20° · 9% leak
T73 round brilliant in cubic zirconia tilted 30 degrees: Light Return map, 21% of the face leaking30° · 21% leak
Each frame is the Light Return map with the stone tilted away from you by the angle shown; gray is leakage. The share under each frame is that picture's own.

What helps: The Old European Cut leaks 7% in CZ. Size does not change the share.

Try it yourself: Tilt it yourself in the simulator's light map

Who an Old Single CZ suits

Choose it to practice the eight cut or to try the look in a setting. As a finished stone it trails the T73 in CZ on brilliance by a third.

For a historic round in CZ with nearly a modern round's light, choose the Old European Cut Cubic Zirconia.

Old Single Cut Cubic Zirconia: questions

Is Old Single cut CZ bright?

Less than a modern round: Brilliance 65 against 98 for the T73 in CZ, with 27% leakage against 1%.

Why does CZ weigh more than diamond?

It is denser: specific gravity about 5.8 against 3.52. A 6.5 mm Old Single weighs 1.73 ct in CZ.

Is CZ good for practicing the Old Single cut?

CZ cuts and polishes easily. That is why it is a common practice material. Our cutting file is the same for any material.

Old Single or Old European cut in CZ?

The Old European returns far more light, 92 against 65, and leaks 7% against 27%. Fire is level, 84 and 83.
