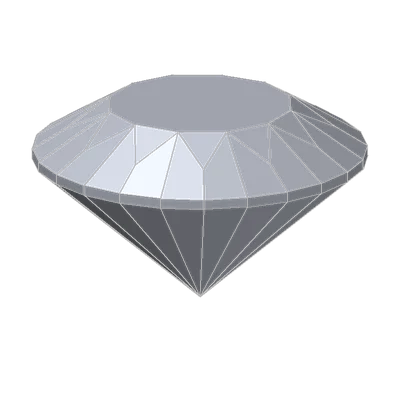

3D model and faceting diagram · 85 facets · 8.15 x 8.15 mm
BL-M5 is a round brilliant drawn for moissanite, on a twelve-fold plan rather than the classic eight. Twenty-four crown mains and twelve stars ring the table, and a single tier of twenty-four pavilion mains runs from the girdle to a pointed culet.
Drag to turn
BL-M5 is a round brilliant drawn for moissanite, on a twelve-fold plan rather than the classic eight. Twenty-four crown mains and twelve stars ring the table, and a single tier of twenty-four pavilion mains runs from the girdle to a pointed culet.
There are no upper or lower halves, and the whole pavilion is cut at one angle. For a moissanite round on the classic eight-fold plan, see BL-Anteros.
Measured from the delivered model, not quoted from a standard.
The same geometry behaves differently in every material. Light that meets a pavilion facet at less than the stone's critical angle passes straight out of the back instead of reflecting, which shows face-up as a window. For each stone we measured how much of this model's pavilion, as seen face-down, is steeper than that angle, and what the model weighs at its reference size. The pavilion mains of this design sit at 41.5°. As a rule of thumb a round design needs about 43.5° in amethyst for head-on light to reflect twice before it leaves the crown, so the mains are worth steepening for emerald, amethyst.
| Stone | Refractive index | Critical angle | Pavilion reflecting head-on light | Weight at this size | Verdict |
|---|---|---|---|---|---|
| Diamond | 2.417 | 24.4° | 100% | 1.94 ct | Holds head-on light |
| Moissanite | 2.648 to 2.691 | 22.2° | 100% | 1.77 ct | Holds head-on light |
| Cubic Zirconia | 2.15 to 2.18 | 27.7° | 100% | 3.19 ct | Holds head-on light |
| Ruby | 1.762 to 1.770 | 34.6° | 100% | 2.20 ct | Holds head-on light |
| Sapphire | 1.762 to 1.770 | 34.6° | 100% | 2.20 ct | Holds head-on light |
| Emerald | 1.577 to 1.583 | 39.4° | 100% | 1.50 ct | Holds head-on light |
| Amethyst | 1.544 to 1.553 | 40.4° | 100% | 1.46 ct | Holds head-on light |

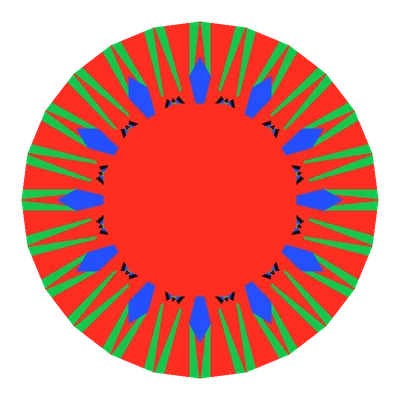

Head-on light, first reflection. The full Light Return, traced in each of these gemstones, is in the 3D Gemstone Simulator.
Open it in the 3D Gemstone Simulator: set its carat, colour, clarity and cut grade in any of seven gemstones, turn it under ten kinds of light, and watch its 3D gemstone report change as you go. Free, in your browser.
Six formats: STEP (the exact faceted solid for CAD), 3DM for Rhino, STL and OBJ meshes, FBX for Blender, 3ds Max, Maya, Cinema 4D, Unity and Unreal, and GLB for the web and AR. All are in millimetres at real-world scale, with 85 planar facets.
Yes. The cutting files contain a GemCad .asc design (61 + 24 girdles = 85 facets, 96 index, 12-fold mirror-image symmetry), a tier table with angles, indices and cutting order in CSV, and a printable faceting diagram.
We measured the pavilion of this model against the critical angle of each stone. In Diamond, Moissanite, Cubic Zirconia, Ruby, Sapphire, Emerald, Amethyst, the whole pavilion reflects head-on light. The pavilion mains of this design sit at 41.5°. As a rule of thumb a round design needs about 43.5° in amethyst for head-on light to reflect twice before it leaves the crown, so the mains are worth steepening for emerald, amethyst.
We check it facet by facet against the 3D model it was written from. Every crown and pavilion facet within 0.004° of the 3D model (average 0.003°). The angles are the ones you set on the machine; the 3D model is the same stone you render or set.
The model measures 8.15 x 8.15 x 4.94 mm, which is 2.00 ct in diamond. The same size weighs 1.77 ct in moissanite, 3.19 ct in cubic zirconia, 2.20 ct in ruby, 2.20 ct in sapphire, 1.50 ct in emerald, 1.46 ct in amethyst. Scale it uniformly to any size: weight follows the cube of the size.
Yes. The mesh is watertight and manifold, with outward normals and no duplicate vertices, so it prints and casts without repair. Use the STEP file when you need the exact faceted solid in CAD.
The BL-M5 Cut as exact geometry: 85 planar facets, real-world scale, ready for CAD, rendering, printing and casting.
The BL-M5 Cut as a faceting design: 61 + 24 girdles = 85 facets, 96 index, 12-fold mirror-image symmetry, ready for the machine.
